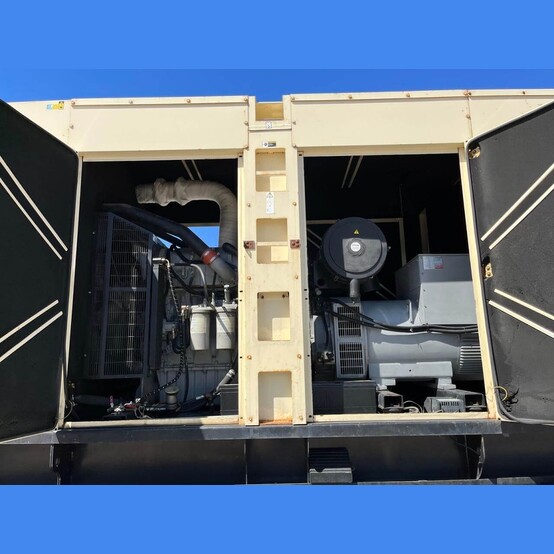

550kW Triton 600 Diesel Generator
- Make: Triton
- Model: TP-P600-T1
- Duty: Standby/Continuous
- Year: 2005
- Portable/Stationary: Portable, Trailer Mounted

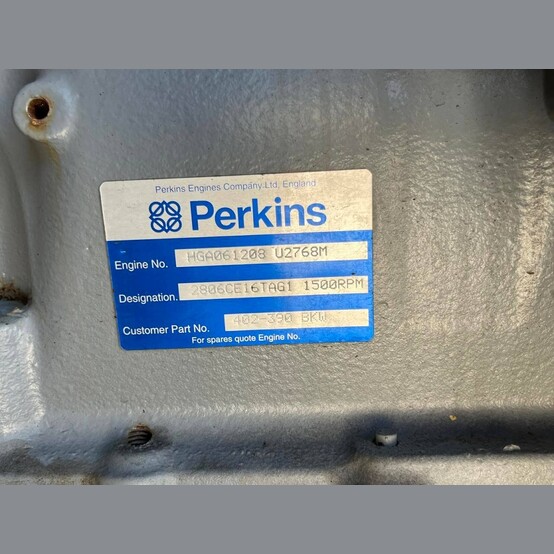

- Engine: Perkins 2806CE16TAG1 (750HP)
- Hours: 859 Hours (444 Starts)
- Oil: API CG-4 Capacity - 62 Liters
- Radiator: Air to Air, Charge Air Cooled, Capacity - 61 Liters
- Generator: Stamford Newage HC.I544D1
- kVA/kW:
- Standby: 550kW (687.5kVA)
- Continuous: 475kW (594kVA)
- RPM: 1800 RPM
- Voltage: 277/480 Volt
- Amperage: 1558 Amps
- Frequency: 60Hz
- Phase: 3-Phase
- Main Breaker: 800 Amp Square D PG800

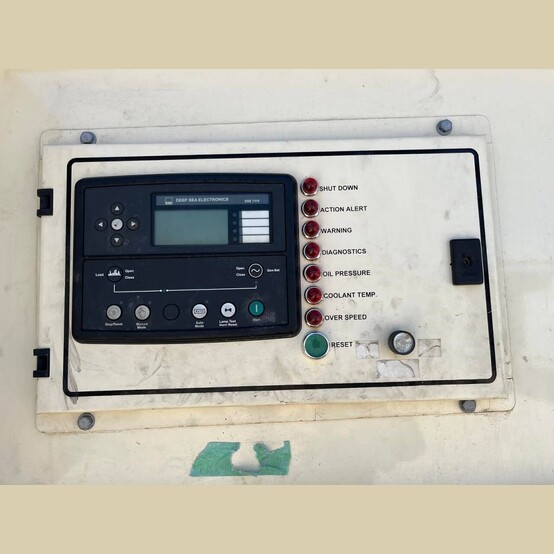

- Output Panel: Deep Sea Electronics DSE-7310
- kVA/kW:
- Overall Dimensions:
- Length: 386in
- Width: 197in
- Height: 146in
- Weight: 24,000 Lbs.
- Additional Information:
- EPA Tier 1 Perkins Engine 2806CE16TAG1
- 550 kW Standby / 475 kW Continuous
- Trailer Mounted
- 249 Gallon Fuel Tank
- Sound Attenuated Enclosure
- Deepsea Digital Controller
- CamLock Connector
- Load Bank Tested
- Serviced & Cleaned
- Location: South Central USA
