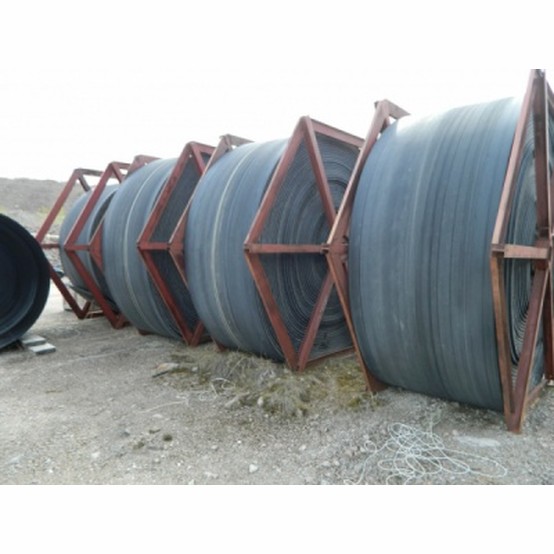

• Belt Width: 54 inch.
  • Path Length: 2,384 ft C-C of Pulleys.
  • True Belt Speed: 813 FPM (actual), 820 nominal.
  • Rock Bulk Density: 108 lb/ft3.
  • Operation hrs/day: 16.
  • Nominal Max Rock Feed Size: 7 inch.
  • Lift: 625 ft.
  • Angle: 15.26 degrees.
  • Design Capacity: 2608 STPH (based on 2,000HP).
  • Rock Load per ft: 106 lbs.
  • Carrying Idlers: 6 inch dia, 35 deg troughing.
  • Head and Drive Pulleys: 66 inch dia x 60 inch face.
  • Drive Pulley : Wrap Angle 210 deg.
  • Drive Pulley: 46 RPM.
  • Drive Pulley: 0.75 inch Lagging.
  • Take-up Pulley: 48 inch dia x 60 inch face.
  • Drive Motor: 2,000 HP - 1188 RPM.
  • Belt Speed: 840 ft/min.
  • Splice Design: Two-step.
  • Type: Steel Cord.
