50-100 YPH Gold Wash Plant

• Type: Gold Wash Plant
• Condition: Used, Reported in Good Working Condition - Last Operated in 2021
• Package Consists of:
  • Coarse Material Washer:
    • Drive: Baldor Reliance Electric Motor
      • Power Output: 25HP
      • Rotation Speed: 1,775RPM
      • Voltage: 230/460 Volts
      • Current: 62/31 Amps
      • Frequency: 60Hz
      • Phase: 3-Phase
      • New Motor as of 2021 with Disconnect
  • Reciprocating Plate Feeder
    • Make: Reynolds & Associates
    • Hopper Dimensions: 9ft 6in Long x 6ft 4in Wide x 6ft Tall
    • Drive: Sterling Slo-Speed Electric Motor
      • Power Output: 2HP
      • Rotation Speed: 51RPM
      • Voltage: 480 Volts
  • Placer Gold Pigg Trommel:
    • Make: Reynolds & Associates
    • Model: RA GP
    • Year: 1995
    • Drum Size: 3ft 9in Diameter x 25ft 6in Long
    • Riffles and Carpets
    • Mounted on Trailer
      • Gross Weight: 26,000
      • 5th Wheel Dolly
    • Drive: Fairbanks Morse Electric Motor
      • Power Output: 7.5HP
      • Rotation Speed: 1,170RPM
      • Voltage: 208-220/440 Volts
      • Frequency: 60Hz
  • Stacking Conveyor
    • Make: Reynolds & Associates
    • Size: 40ft Long x 2ft Wide
    • Drive: Toshiba Electric Motor
      • Power Output: 3HP
      • Rotation Speed: 1,720RPM
      • Voltage: 230/460 Volts
      • Current: 8.0/4.0 Amps
      • Frequency: 60Hz
      • Phase: 3-Phase
      • Gear Reducer: 1:7.609
  • 4-Panel Electrical Board

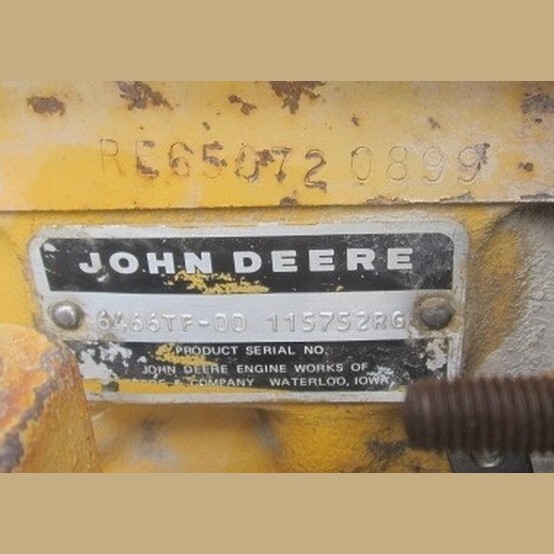

  • 100kW Kamag John Deere Diesel Generator:
    • Engine: John Deere 6466TF Diesel Engine
    • kVA/kW: 100kW (125kVA)
    • Rotation Speed: 1,800RPM
    • Voltage: 416-480 Volts
    • Current: 173-150 Amps
    • Frequency: 60Hz
    • Phase: 3-Phase or Single Phase


  • Location: Northwest USA
