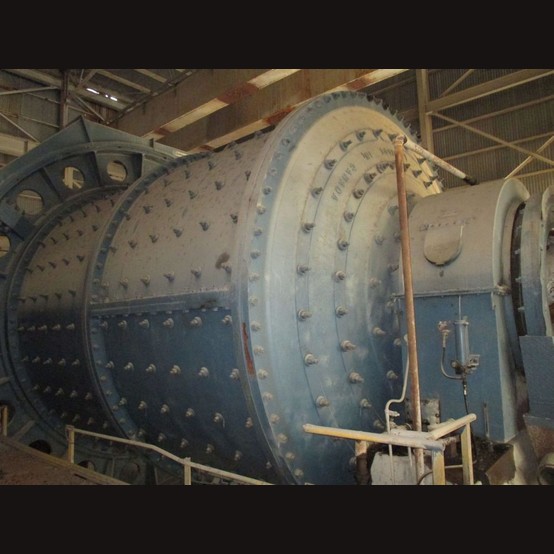

• Boliden Allis semi-autogenous grinding (SAG) mill.
    • Size (diameter x length)
      • 7.3 m x 2.74 m. (24 ft. x 9 ft.)
    • Lining: steel.
  • Sagmill inching (drive) device.

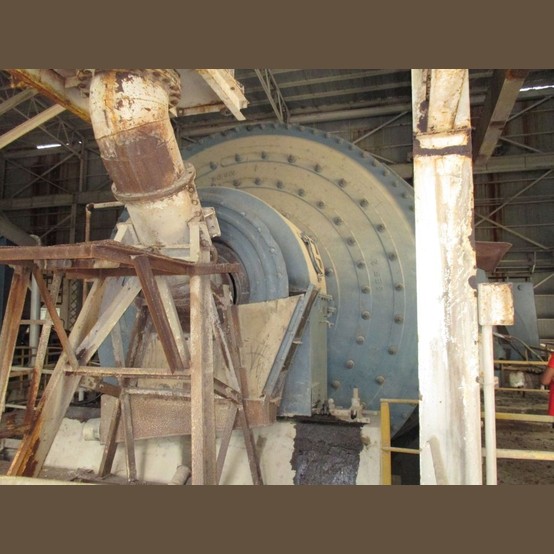

  • Sagmill feed chute.
    • Steel casing with liners.
  • Sagmill feed end.
  • Sagmill discharge liners.
  • Sagmill shell liners.
  • Sagmill discharge end.
  • Sagmilld discharge end drive.

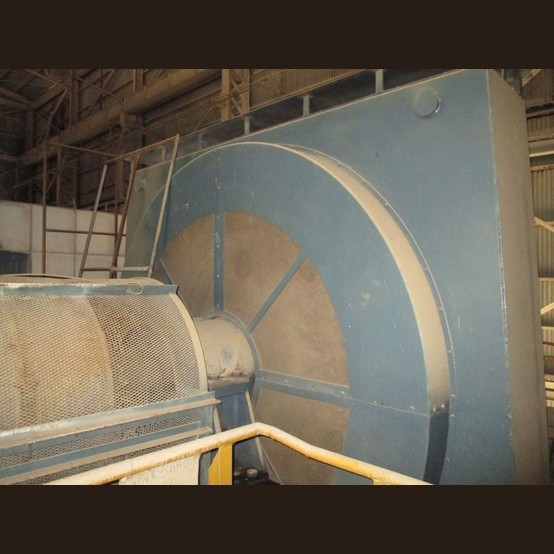

    • 3000 HP synchronous motor.
  • Sagmill discharge screen (L x W):
    • 4.8 m x 1.5 m (16 ft. x 5 ft.)
    • Allis Chalmers.
  • Sagmill liner service unit.
    • Capacity: 2.5 metric tonnes @ 1.1 m.
    • Ani Ruwolt.

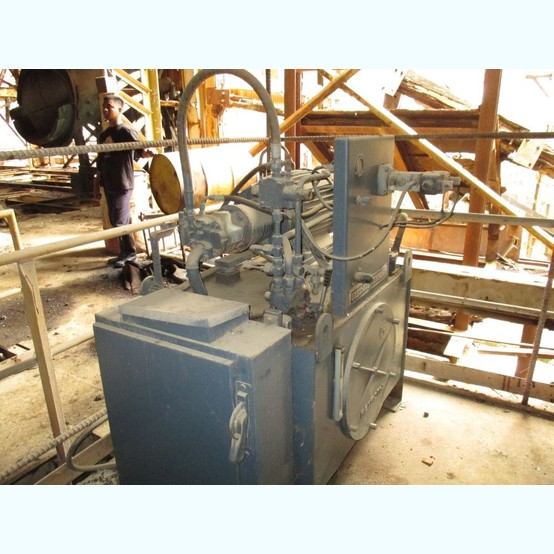

  • Sagmill lube pump #1: 1 unit.
  • Sagmill lube pump #2: 1 unit.
  • Sagmill discharge sump.
    • Capacity: 40m³/hr.
    • Rubber lined MS.

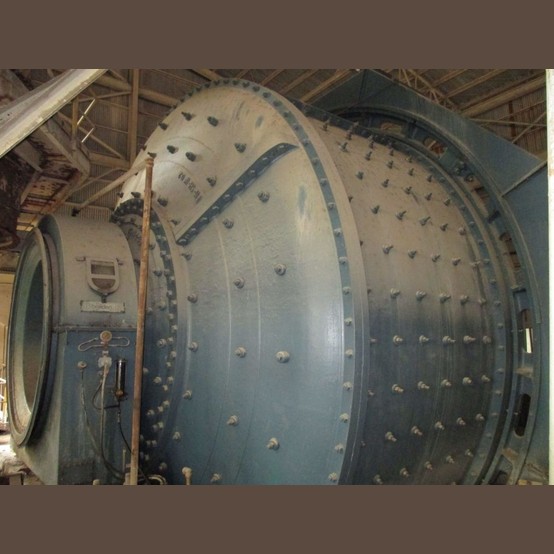

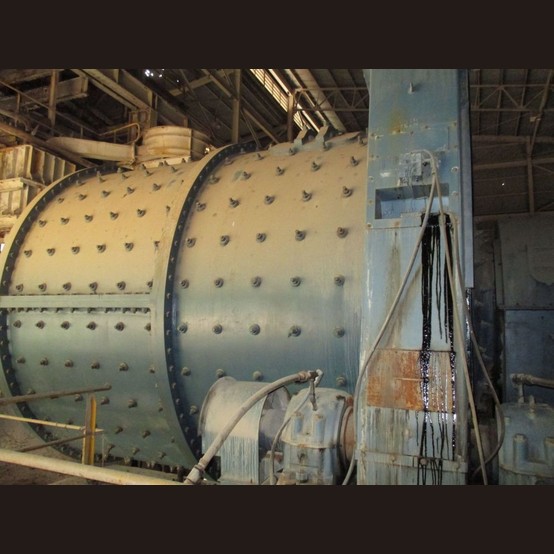

  • Boliden Allis ball mill.
    • Size: (diameter x length).
      • 4.72 m x 5.18 m (15.5 ft. x 7 ft.)
    • Lining: steel.
    • Complete with:
      • Air clutch.
      • Air compressor.
      • 3000 HP synchronous motor.
  • Ball mill lube pump #1: 1 unit.
  • Ball mill lube pump #2: 1 unit.

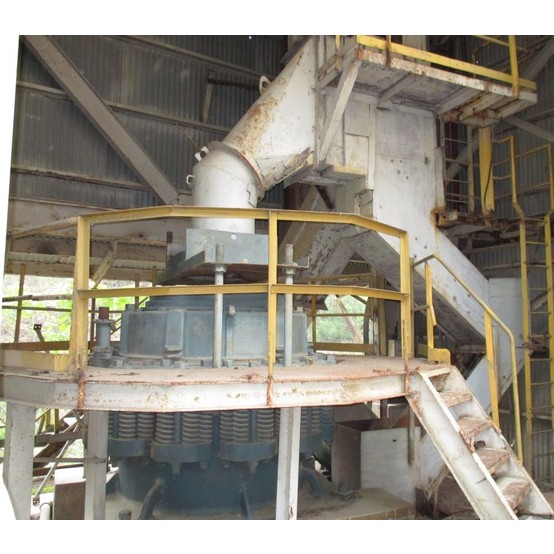

  • Symons shorthead crusher.
    • Drive: 150 HP induction motor.
    • Size 1.372 m (4.25 ft.)
  • Lime hopper bin.
    • Capacity: 2 metric tonnes (nominal).
  • Lime belt feeder.
    • Capacity: 1 ton/hr (nominal).
    • Size: 600 mm wide x 1900 mm long.
    • Drive: Electric variable speed.
  • Pikrose electric hoist.
  • Stephen Adamson Apron feeder.
    • Model: TC-20.
    • 200 ton/hr capacity.
    • Size (L x W).
      • 6.5 m x 1.2 m (21.33 ft. x 3.94 ft).
    • Base frame: steel construction.
    • Includes hydraulic drive.

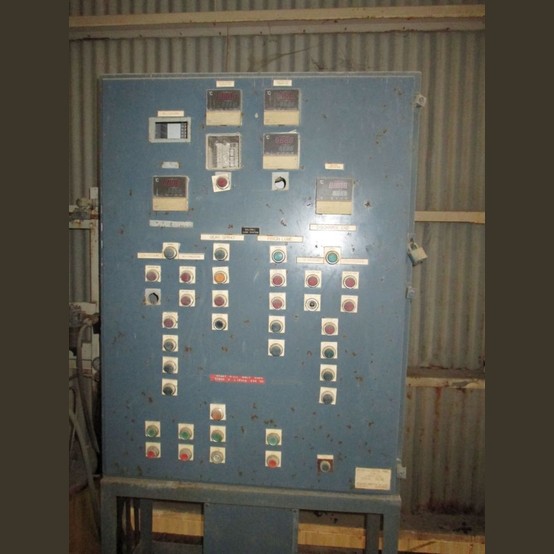

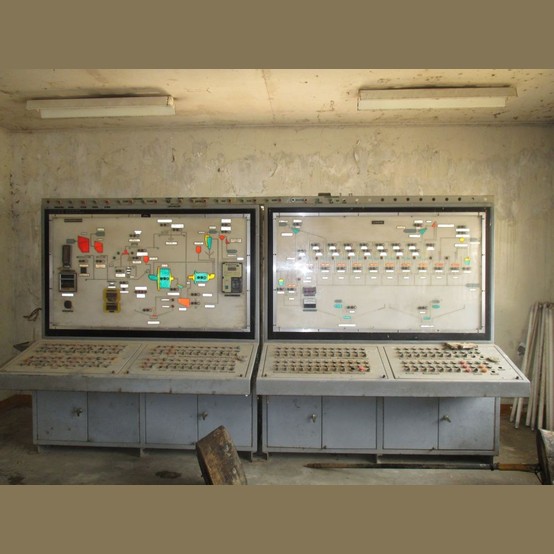

  • Mill central control panel.
  • Cyclone feed pumps: 12 x 10 FAH Warman.
  • Cyclone feed pumps: 12 x 10 FAH Warman.
    • Capacity: 660 m³/hr.
    • Type: centrifugal.
    • Drive: fixed speed.
    • Construction: rubber lined casing, metal impeller.
  • Air receiver tanks.
  • Treated water break tank.
    • 6.56 ft²
  • Mill & process water tanks:
    • Unit #1:
      • Capacity: 860 m³.
      • Size (diameter x height):
        • 10.5 m x 10.9 m (34.4 ft. x 35.76 ft.)
    • Unit #2:
      • Capacity: 1463 m³.
      • Size (diameter x height):
        • 12.3 m x 13.1 m (40 ft.  x 43 ft.)
    • Complete with:
      • Agitators.
        • Dual propeller.
        • 4 blades.
        • Rubber coated.

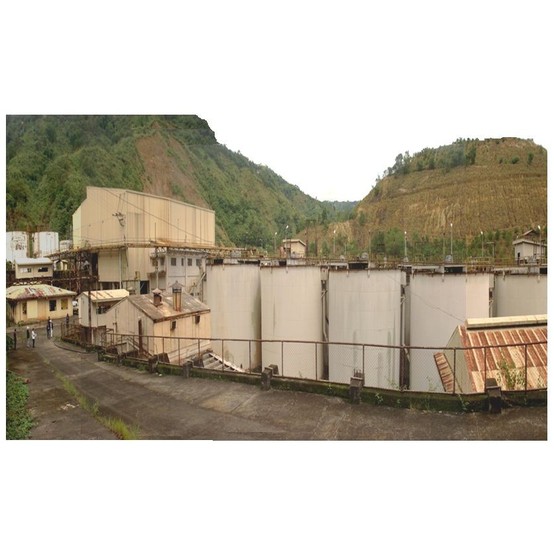

  • Leach/CIP tanks: 20 units.
    • Capacity: 1463 m³.
    • Size (diameter x height):
      • 12.3 m x 13.1 m (40 ft.  x 43 ft.)
    • Complete with:
      • Agitators.
        • Dual propeller.
        • 4 blades.
        • Rubber coated.
  • Eluate tank.
    • Size (diameter x height):
      • 4.5 m x 6.5 m (15 ft. x 21.5 ft.)
  • Thermopac boiler.
  • Boiler control panel.
  • Electrolyte transfer tank.
    • Size (diameter x height):
      • 3 m x 2.4 m (9.84 ft. x 7.87 ft.)
  • Furnace ladle.
  • Acid wash tanks: 2 units.
  • Surge tank.
    • Size (diameter x height):
      • 7.3 m x 7.5 m (24 ft. x 24.6 ft.)
    • Capacity: 292 m³.
    • Dual 4-bladed, rubber coated propellers.
  • (2) 150 HP induction motors.
  • Pre-soak tanks.
  • Conveyor #1 (CV01): 250 ton/hr.
    • 54 in. wide.
    • No belts and rollers.
  • Conveyor #2: 24 in. wide.
    • No belts and rollers.
  • Conveyor #3: 24 in. wide.
    • No belts and rollers.
  • Conveyor #4: (return).
    • 24 in. wide.
    • No belts and rollers.
  • Conveyor belts for CV01: 54 in. wide.
  • Ramsey circulating load weightometer.
  • Ramsey mill feed weightometer.

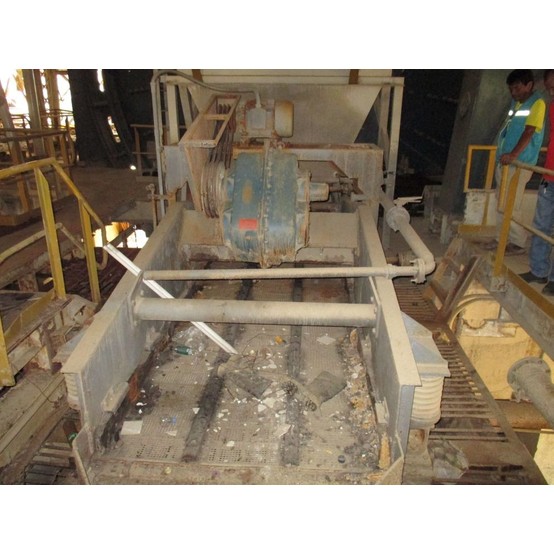

  • Trash dewatering screen.
  • Stearn Magnetics tramp metal magnet.
  • Drilling equipment.
  • RO system.
    • Capacity: 100 m³/day.
  • Activated carbon filter tanks.
  • Treated water storage tank.
    • Capacity: 100 m³.
  • Osmonics ozonator.
  • Demag overhead crane.
    • Capacity:
      • 20 metric tonne main.
      • 5 metric tonne auxiliary.
  • Electrical wiring components and connections of various equipment to control panels.
