- 300 TPD Gold and Silver Ore Processing and Recovery Plant with Merrill Crowe.
- It is possible to modify the plant to a CIP process.
- Includes the following circuits and components:
- Grinding
- Leaching.
- Filtration.
- Tailings.
- Zinc.
- Grinding Circuit:
- 18 in. x 15 ft. belt conveyor (3 hp).
- 24 in. x 30 ft. belt conveyor (3 hp).
- 24 in. x 18 ft. belt conveyor (5 hp).
- Sag mill feed chute.

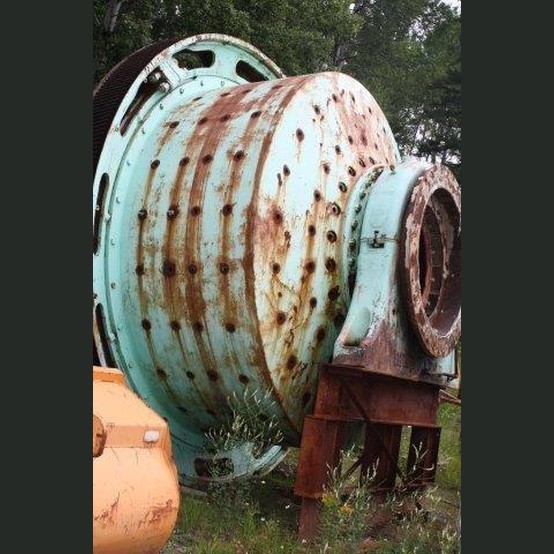

- Sag mill 12 ft. x 5 ft. w/ 250 hp electric motor and steel liners.
- Sag output conveyor 15 in. x 30 ft. (3 hp).
- Sag output conveyor (bypass) 12 in. x 14 ft. (3 hp).
- Sag output pump 3x3 SRL 12400 rpm (7.5 hp).
- 2 - Cyclone feed pump 5x4 SRL-C (15 hp).
- 3 - Krebs cyclone 10B.

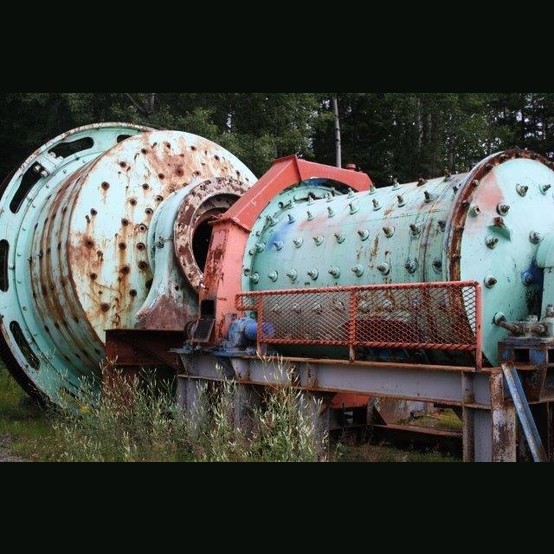

- Ball 6x9 @ 125 hp w/ feed chute.
- Ball mill discharge chute.
- Sala Vasa G 234 sump pump @ 7.5 hp.
- Sizing screen 3x3x3.
- Thickener reed pump 3x3 SRL @ 10 hp.
- Leaching Circuit:
- #1 Leach tank 18 ft. dia. x 22 ft. high c/w agitators, aeration & 25 hp motor.
- #2 Leach tank 18 ft. dia. x 22 ft. high c/w agitators, aeration & 25 hp motor.
- #3 Leach tank 18 ft. dia. x 22 ft. high c/w agitators, aeration & 25 hp motor.
- #4 Leach tank 18 ft. dia. x 22 ft. high c/w agitators, aeration & 25 hp motor.
- Compressor 400 cfm 105 psi @ 100 hp.
- Filtration Circuit:
- 4 - Drum filters complete 8 ft. dia. x 12 ft. long @ 3 hp.
- 4 - Rake agitators @ 3 hp.
- 2- Repulpers for above @ 3 hp.
- 2 - Filtrate tanks 0.762m dia. x 7m.
- 2 - Filtrate pumps 2x2 SRL @ 5 hp.
- Sala Vasa G 234 sump pump 1.5 in. @ 5 hp.
- Nash 2300 vacuum pump @ 125 hp.
- Filter water pump 2x2 SRL @ 5 hp.
- Filter water tank.
- Barometric tank.
- Tailings Circuit:
- Tailings pump tank .50 cu. meters.
- 2 - Tailings pump 3x3x14 SRL @ 10 hp.
- Merrill Crowe precipitation.
- Clarification tank (4 sections) c/w cleaner tanks (4.9m x 2.1m x 2.1m).
- Pressure filter (1.8m x 1.8m).
- Clarifier pump box.
- Clarifier pump 2x2 SRL @ 3 hp.
- Clarifier cleanser tank/pump Sala SPV232 @ 7.5 hp.
- De-aerator crow tower w/ control valve and level sight glass 914mm x 2.4mm.
- Nash vacuum pump @ 10 hp.
- Zinc feeder screw 2 in. x 3.5 ft. long.
- Zinc Con Circuit:
- Press feed pump Gould vertical 2x3x13 @ 20 hp.
- Perrin press 760mm x 760mm 20 frames complete.
- Press discharge box 1m x 1m.
- Press discharge pump 3x3 @ 5 hp.
- Barren solution tank 3.5m x 6.5m.
- Barren solution pump 3x3x10 @ 10 hp.
- Process solution tank 3.5m x 6.5m.
