2200 TPD Copper Lead Zinc Ore Processing and Recovery Plant ID: 140898


Savona Equipment Ltd is offering a complete 2200 TPD Copper Lead Zinc Ore Processing and Recovery plant for sale. The plant includes the following circuits and list of components:

Complete Assay Lab
Crushing
Grinding
Copper Rougher Flotation
Copper Regrind
Copper Cleaner Flotation
Copper Lead Flotation Separation
Zinc Rougher Flotation
Zinc Regrind
Zinc Cleaner Flotation
Copper Concentrate Dewatering and Filtration
Zinc Concentrate Dewatering and Filtration
Process Services
Reagents Preparation and Distribution
Tailings Dewatering and Backfill
Water Systems
CU/Pb On-Stream Analyzer System

Component List:

Crushing:

  • Air Dryer
  • Belt Magnet
  • Apron Feeder - Nico Model FD-4275, 36" X 10'
  • Vibrating Feeder - Simplicity / Terex 45" x 20' VGF
  • SAG Mill Feed Weigh Scale - Milltronics
  • Jaw Crusher Discharge Conveyor - 42" X 45'
  • Coarse Ore Bin Feed Conveyor - 36" X 340'
  • SAG Mill Feed Conveyor - 30" X 160'
  • Jaw Crusher Feed Chute
  • Jaw Crusher Discharge Chute
  • Transfer Chute
  • Coarse Ore Bin Feed Chute
  • Apron Feeder Feed Chute
  • Apron Feeder Dribble Chute
  • Apron Feeder Discharge Chute

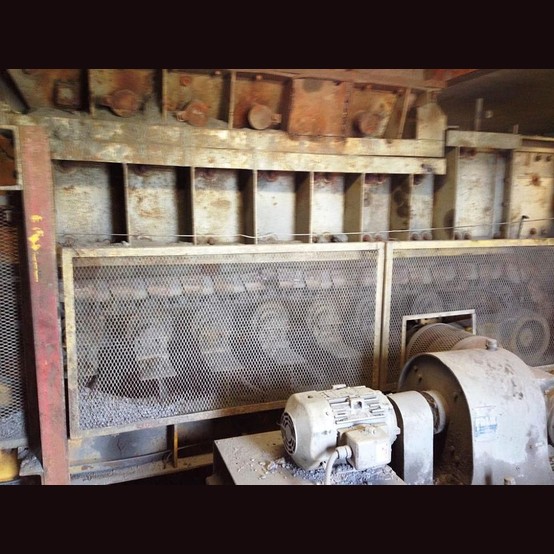

  • Jaw Crusher - Terex Cedar Rapids JW3042
  • Surge Bin Grizzly

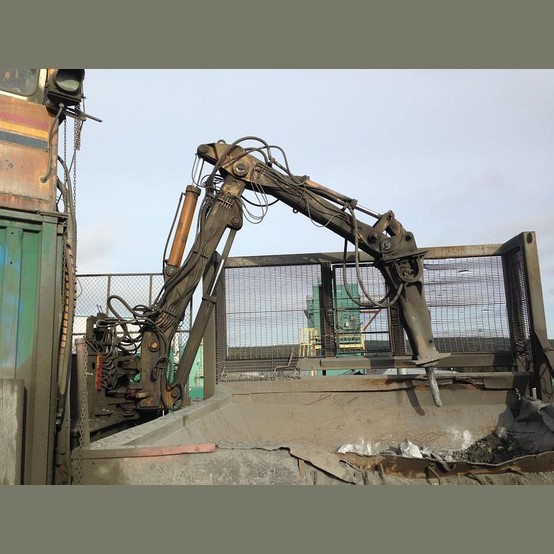

  • Rock Breaker - Teledyne TM20XH/TB925X
  • Coarse Ore Bin Monorail Hoist
  • Air Receiver
  • Instrument Air Receiver
  • Bin Liners
  • Crusher Surge Bin - 75 tonnes capacity
  • Coarse Ore Bin 1500 - tonnes (live)
  • Dust Collector Extraction Fan Muffler
  • Crusher Dust Collection Baghouse - Wheelabrator: Size 1215 TA-SB Model 120 Series
  • Dust Collector Extraction Fan - Cincinati Fan HBDI - 240
  • Dust Collector Rotary Valve
  • Sump Trough

Grinding:

  • Flash Flotation Agitator
  • Vibrating Screen Feed Box
  • SAG Mill Discharge Pump Box 6,5 m3
  • Ball Mill Discharge Pump Box

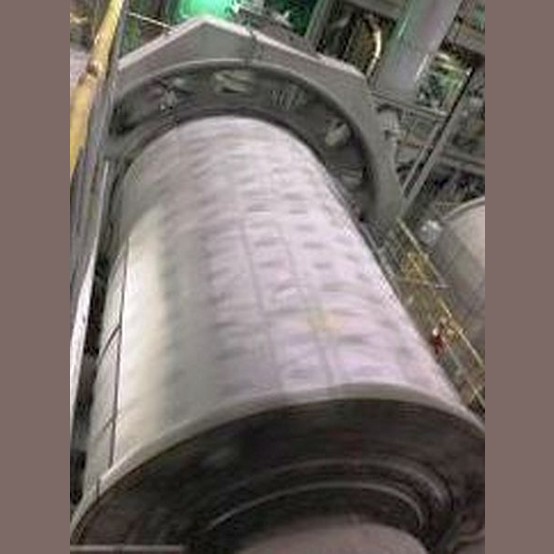

  • SAG Mill (2250 HP) Hardinge 20' x 6'  (1966)

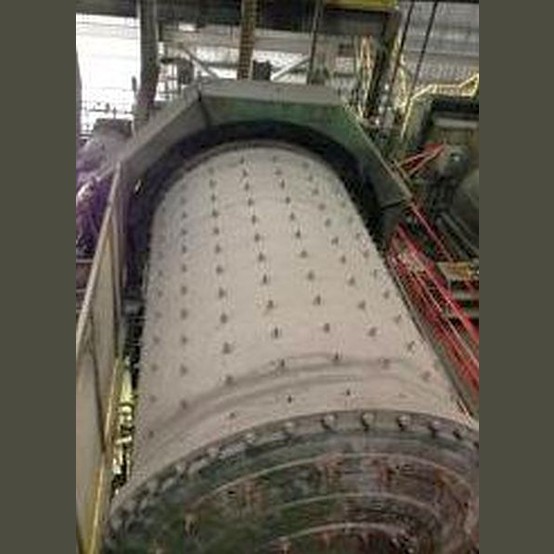

  • Ball Mill (2250 HP) Nordberg:  14' x 20'-8" (1966)
  • Flash Flotation Cell 8,5 m3
  • SAG Mill Feed Conveyor Head Chute
  • SAG Mill Retractable Chute
  • Screen Oversize Chute
  • Screen Undersize Chute (included with screen)
  • SAG Mill Discharge Chute
  • SAG Mill Ball Feed Chute
  • Ball Bucket Feed Chute
  • Ball Mill Feed Spout
  • Ball Mill Ball Feed Chute
  • Ball Mill Feed Chute
  • Ball Mill Discharge Chute
  • 5 x Ball Mill Cyclone - Warman 250CVX10
  • Diverter Box
  • Mill Feed Primary Sampler - Arcual 3640
  • Mill Feed Secondary Sampler - Arcual 1850
  • In-Line Flash Flotation Concentrate Sampler - In Line (4")
  • Copper Rougher Flotation Feed Sampler - In Line 10"
  • Ball Mill Ball Bucket
  • SAG Mill Ball Bucket
  • Pressure Washer - MS 3056-600
  • SAG Mill Lubrication System - Engrenage Provincial
  • Ball Mill Lubrication System - Mine and Smelter
  • SAG Mill Liner Handler - Mclellan 3000
  • Grinding Area Sump Pump Toyo DEC-51-80-5E-60-HC-V
  • SAG Mill Lubrication System (Low Pressure) - Pump: Commercial P350C44CEAB15-11
  • SAG Mill Lubrication System (Low Pressure) - Pump: Commercial P350C44CEAB15-12
  • SAG Mill Lubrication System (High Pressure) - Pump: Commercial 308-9146-00A
  • Ball Mill Lubrication System (High Pressure) - Pump: Simplex PES6036
  • Ball Mill Lubrication System (Low Pressure) - Pump: Vickers V2010F7S4S1AA12
  • 2 x SAG Mill Discharge Pump - Weir 125MCHGGMSS
  • 2 x Ball Mill Discharge Pump - Warman 8 x 6 AH
  • Grinding Area Overhead Crane - 20/5 tonne
  • SAG Liner Handler Jib Crane - XL200 /NR266958
  • SAG Ram Handler Monorail - XL200 /NRR8356
  • Monorail/Magnet (Ball Loading) - LV41521
  • Grinding Area Sump Pump Base
  • Ball Pit Sump Protection/Magnet Support
  • SAG Mill Vibrating Screen - Trabor 6' X 16'
  • SAG Mill Motor Cooling Fan - Buffalo Forge 805 AF
  • SAG Mill Pumpbox Extraction Fan - D/39 SQI 17LS
  • Ball Mill Pumpbox Extraction Fan - D/39 SQI 17LS

Copper Rougher Flotation:

  • Cu Rougher Flotation Cell Agitator - Outokumpu
  • 3 x Cu Scavenger Flotation Cell Agitator - Outokumpu
  • Cu Conditioner Tank Agitator Hawyard Gordon STX-12
  • 4 x Cu Rougher Cleaner Flotation Cell Agitator - Outokumpu
  • Cu Scavenger Concentrate Pump Box
  • Cu Scavenger Tails Pump Box
  • Cu Rougher Flotation Cell - 16 m3 (Outokumpu)
  • 3 x Cu Scavenger Flotation Cell - 16 m3 (Outokumpu)
  • 4 x Cu Rougher Cleaner Flotation Cell - 1,5 m3
  • Cu Rougher Cleaner Feed Sampler - Pressure (thief 4")
  • Cu Rougher/Cleaner Concentrate In-line Sampler - In Line (6")
  • 2 x Cu Cleaning Circuit Feed Thief Sampler - Pressure (thief 6")
  • Cu Scavenger Tails In-line Sampler - In Line (8")
  • 2 x Cu Circuit Tails Thief Sampler - Pressure (thief 6")
  • Cu Rougher Area Sump Pump - D-3.5-SR-A-1100 x 60
  • Rougher Cleaner Feed Tank Pump - Metso: VF80
  • 2 x Cu Scavenger Concentrate Pump - 8x6x18 SLR-C
  • 2 x Cu Scavenger Tails Pump - AC 8 x 6 x 18 SRL-C-HD
  • Flotation Area Overhead Crane - XL300 / NR264899
  • Cu Conditioner Tank - 2,600 m Ø x 3,4 m H
  • Cu Rougher Area Sump Pump Base

Copper Regrind:

  • Cu Regrind Mill Cyclone Feed Pump Box
  • Cu Regrind Mill (900 HP) - Dominion 11' X 14' (1958)
  • Cu Regrind Mill Ball Feed Chute
  • Cu Regrind Mill Feed Chute
  • Cu Regrind Mill Discharge Chute
  • 8 x Cu Regrind Mill Cyclone - Krebbs: GMAX6-3193
  • Cu Regrind Mill Cyclone
  • Regrind Mills Ball Bucket
  • Cu Regrind Mill Lubrication System - Howard Marten Co.
  • Cu Regrind Sump Pump D-3.5-SR-A-1100 x 60
  • Cu Regrind Mill Lubrication Unit 700 AL DUPLEX
  • 2 x Cu Regrind Mill Cyclone Feed Pump - AC 10 x 8 x 21 SRL-C-HD
  • Cu Regrind Mill Clutch Air Receiver
  • Cu Regrind Sump Pump Base
  • Cu Regrind Mill Motor Cooling Unit - Jess HVAC B1P1-18
  • Extraction Fan - D/39 SQI 17LS

Copper Cleaner Flotation:

  • 3 x Cu 1st Cleaner Flotation Cell Agitator - Outokumpu
  • 3 x Cu Cleaner Scavenger Flotation Cell Agitator - Outokumpu
  • 3 x Cu 3rd Cleaner Flotation Cell Agitator - Outokumpu
  • 4 x Cu 2nd Cleaner Flotation Cell Agitator - Outokumpu
  • Cu 1st Cleaner Concentrate Pump Box
  • Cu Cleaner Scavenger Tails Pumpbox
  • Final Cu/Pb Concentrate Pump Box
  • Cu 2nd Cleaner Concentrate Pump Box
  • 3 x Cu 1st Cleaner Flotation Cell 16 m3 - (Outokumpu)
  • 3 x Cu Cleaner Scavenger Flotation Cell - 8 m3 (Outokumpu)
  • 3 x Cu 3rd Cleaner Flotation Cell - 8 m3 (Outokumpu)
  • 4 x Cu 2nd Cleaner Flotation Cell - 8 m3 (Outokumpu)
  • 2 x Cu Cleaner Scavenger Tails Thief Sampler - Pressure (thief 6")
  • Cu 3rd Cleaner Concentrate In Line Sampler - In Line (8")
  • Final Cu/Pb Concentrate Thief Sampler - Pressure (thief 6")
  • Final Cu/Pb Concentrate Thief Sampler - Pressure (thief 6")
  • Cu Cleaning Area Sump Pump - D-3.5-SR-A-1100 x 60
  • 2 x Cu 1st Cleaner Concentrate Pump - AC 8 x 6 x 18 SRL-C
  • Cu Cleaner Scavenger Concentrate Tank Pump - Metso: VF80
  • Cu Cleaner Scavenger Tails Pump - AC 8 x 6 x 18 SRL-C
  • Cu Cleaner Scavenger Tails Pump - AC 8 x 6 x 18 SRL-C-HD
  • 2 x Final Cu/Pb Concentrate Pump - AC 8 x 6 x 18 SRL-C
  • 2 x Cu 2nd Cleaner Concentrate Pump - 8x6x18 SRL-C
  • Cu 2nd Cleaner Tails Tank Pump - Metso VF100
  • Cu Cleaning Area Sump Pump Base

Copper – Lead Flotation Separation:

  • Pb Conditioner Tank Agitator - Hayward Gordon STX-10
  • 2 x Pb Rougher Flotation Cell Agitator - Outokumpu
  • 3 x Pb Scavenger Floation Cell Agitator - Outokumpu
  • 2 x Pb 3rd Cleaner Flotation Cell Agitator - Outokumpu
  • 2 x Pb 2nd Cleaner Flotation Cell Agitator - Outokumpu
  • 2 x Pb 1st Cleaner Flotation Cell Agitator - Outokumpu
  • Cu Concentrate Pump Box
  • 2 x Pb Rougher Flotation Cell - 5 m3 (Outokumpu)
  • 3 x Pb Scavenger Floation Cell - 5 m3 (Outokumpu)
  • 2 x Pb 3rd Cleaner Flotation Cell - 5 m3 (Outokumpu)
  • 2 x Pb 2nd Cleaner Flotation Cell - 5 m3 (Outokumpu)
  • 2 x Pb 1st Cleaner Flotation Cell - 5 m3 (Outokumpu)
  • 2 x Cu Concentrate Thief Sampler - Pressure (thief 6")
  • Pb Rougher Concentrate Thief Sampler - Pressure (thief 4")
  • Pb 1st Cleaner Tails Thief Sampler - Pressure (thief 4")
  • Pb Final Concentrate Thief Sampler - Pressure (thief 4")
  • Pb/Cu Flotation Area Sump Pump - Tusami 10 HP
  • Pb/Cu Flotation Area Sump Pump - D-3.5-SR-A-1100 x 60
  • Pb Rougher Concentrate Tank Pump - Metso VF80
  • Pb Scavenger Concentrate Tank Pump - Metso VF80
  • 2 x Cu Concentrate Pump - AC 8 x 6 x 18 SRL-C
  • Pb Final Concentrate Tank Pump - Metso VF50
  • Pb 2nd Cleaner Concentrate Tank Pump - Metso VF80
  • Pb 1st Cleaner Concentrate Tank Pump - Metso VF80
  • Pb 1st Cleaner Tails Tank Pump - Metso VF80
  • Pb Conditioner Tank - 2,0 m Ø x 2,56 m H
  • 2 x Pb/Cu Flotation Area Sump Pump Base

Zinc Rougher Flotation:

  • Zn Conditioner Tank Agitator (High Intensity) - Hayward Gordon MBX-57
  • Zn Rougher Flotation Cell Agitator - Outokumpu
  • 4 x Zn Scavenger Flotation Cell Agitator - Outokumpu
  • Zn Flotation Tails Pump Box
  • Zn Rougher Flotation Cell - 16 m3 (Outokumpu)
  • 4 x Zn Scavenger Flotation Cell - 16 m3 (Outokumpu)
  • 2 x Zn Rougher Cleaner Flotation Column - 1,2 m Ø x 10.0 m
  • Zn Rougher Cleaner Flotation Column Feed Box
  • Zn Rougher Cleaner Feed Sampler - Pressure (thief 4")
  • Zn Rougher Cleaner Concentrate Thief Sampler - Pressure (thief 4")
  • Zn Scavenger Concentrate Thief Sampler - Pressure (thief 6")
  • 2 x Zn Scavenger Tails Thief Sampler - Pressure (thief 6")
  • Zn Rougher Area Sump Pump - D-3.5-SR-A-1100 x 60
  • Zn Rougher Concentrate Tank Pump - Metso: VF80
  • Zn Scavenger Concentrate Tank Pump - Metso VF150
  • 2 x Zn Flotation Tails Pump - AC 8 x 6 x 18 SRL-C
  • Zn Rougher Cleaner Concentrate Tank Pump - Metso VF50
  • Zn Rougher Cleaner Tails Tank Pump - Metso VF80
  • Flotation Area Overhead Crane - XL300 /NR264897
  • Zn Conditioner Tank - 2,6 m Ø x 3,36 m H
  • Zn Rougher Area Sump Pump Base

Zinc Regrind:

  • Zn Regrind Mill Cyclone Feed Pump Box
  • Zn Regrind Ball Mill (600 HP) - Allis Chalmers 9' X 14' (1965)
  • Zn Regrind Mill Ball Feed Chute
  • Zn Regrind Ball Mill Feed Chute
  • Zn Regrind Ball Mill Discharge Chute
  • 5 x Zn Regrind Mill Cyclone - Krebbs: GMAX6-3193
  • Zn Regrind Mill Lubrication System - Howard Marten Co.
  • Zn Regrind Sump Pump D-3.5-SR-A-1100 x 60
  • Zn Regrind Ball Mill Lubrication Unit - 70 SL DUPLEX
  • 2 x Zn Regrind Mill Cyclone Feed Pump - AC 8 x 6 x 18 SRL-C-HD
  • Zn Regrind Mill Clutch Air Receiver
  • Zn Regrind Sump Pump Base
  • Zn Regrind Mill Motor Air Cooling Unit - Jess HVAC B1P1-18

Zinc Cleaner Flotation:

  • 2 x Zn 3rd Cleaner Flotation Cell Agitator - Outokumpu
  • 3 x Zn 2nd Cleaner Flotation Cell Agitator - Outokumpu
  • 3 x Zn 1st Cleaner Flotation Cell Agitator - Outokumpu
  • 3 x Zn Cleaner Scavenger Flotation Cell Agitator - Outokumpu
  • Zn Final Concentrate Pump Box
  • Zn Cleaner Scavenger Tails Pumpbox
  • 2 x Zn 3rd Cleaner Flotation Cell - 5 m3 (Outokumpu)
  • 3 x Zn 2nd Cleaner Flotation Cell - 5 m3 (Outokumpu)
  • 3 x Zn 1st Cleaner Flotation Cell - 8 m3 (Outokumpu)
  • 3 x Zn Cleaner Scavenger Flotation Cell - 8 m3 (Outokumpu)
  • 2 x Zn Cleaner Scavenger Tails Thief Sampler - Pressure (thief 6")
  • Zn 3rd Cleaner Concentrate In-line Sampler - In Line (6")
  • 2 x Zn Final Concentrate Thief Sampler - Pressure (thief 6")
  • Zn Cleaning Area Sump Pump - RNE 25 HP
  • Zn Final Concentrate Pump - AC 8 x 6 x 18 SRL-C-HD
  • Zn Final Concentrate Pump - AC 8 x 6 x 18 SRL-C
  • Zn 2nd Cleaner Concentrate Tank Pump - Metso VF100
  • Zn 2nd Cleaner Tailings Pump - Metso VF80
  • Zn 1st Cleaner Concentrate Tank Pump - Metso VF100
  • Zn Cleaner Scavenger Concentrate Tank Pump - Metso VF80
  • Zn Regrind Feed Pump - Allis Chalmers 8 X 6 X1 8 SRL
  • Zn Regrind Feed Pump - Allis Chalmers 5 X 4 X 14 SRL
  • Zn Cleaner Scavenger Tails Pump - AC 5 x 4 x 14 SRL-C
  • Zn Cleaner Scavenger Tails Pump - AC 5 x 4 x 14 SRL-C
  • Zn Cleaning Area Sump Pump Base

Copper Conc Dewatering & Filtration:

  • Cu Concentrate Filter Feed Tank Agitator - Robbins Myers: 1060FRT60
  • Concentrate Loadout Truck Scale
  • Cu Concentrate Thickener Overflow Standpipe
  • Cu Filtrate Pump Box
  • Cu Concentrate Thickener Tank New - Fabrication
  • Cu Concentrate Thickener Rakes and Mechanisms - Westpro TH35HC
  • 2 x Cu Concentrate Pressure Filter - PF32/38 AH1
  • Pressure Washer - MS S3042EE
  • 2 x Pressure Filter Control Panel
  • Cu Thickener Area Sump Pump - RNE Model 100MS/900/250
  • 2 x Pressure Filter Hydraulic Unit
  • 2 x Cu Concentrate Thickener Underflow Pump - WEMCO RPP 080 FM
  • 2 x Cu Concentrate Filter Feed Pump - 5" x 4" x 14" SRL-CHD
  • Cu Filtrate Pump - AC 8 x 6 x 18 SRL-C
  • Cu Concentrate Thickener Overflow Pump - AC 5 x 4 x 14 SRL-C
  • Filters cloth wash booster pump - KSB: G-032-200 G10
  • Pressure Filter Wash Pump (booster) - KSB: G-032-200 G10
  • Filter Area Overhead Crane - XL300 /NR264898
  • 2 x Pressing Water Pump
  • Cu Concentrate Filter Feed Tank - 8.5 m x 7.0 m high
  • 2 x Cu Filtrate Release Tank
  • Cu Concentrate Thickener Feed Box
  • Pressing Water Head Tank
  • Pressing Water Head Tank
  • Air Receiver - 18 m3 (2.4 m x 4.0 m H)
  • Air Receiver - 18 m3 (2.4 m x 4.0 m H)
  • Cu Thickener Area Sump Pump Base
  • Concentrate Loadout Extraction Fan

Zinc Conc Dewatering & Filtration

  • Zn Concentrate Filter Feed Tank Agitator - PROCHEM (R&M) 750FRT30
  • Zn Concentrate Thickener Overflow Standpipe
  • Zn Filtrate Pump Box
  • Zn Concentrate Thickener Rakes and Mechanism - Outokumpu T93-4631
  • Zn Concentrate Thickener Tank - 10,7 m Ø
  • 2 x Zn Concentrate Pressure Filter - PF32/38 AH1
  • 2 x Pressure Filter Control Panel
  • Zn Concentrate Thickener Area Sump Pump - D-3.5-SR-A-1100 x 60
  • 2 x Pressure Filter Hydraulic Unit
  • 2 x Zn Concentrate Thickener Underflow Pump - Waukesha SP 65
  • 2 x Zn Concentrate Filter Feed Pump - 5" x 4" x 14" SRL-CHD
  • Zn Filtrate Pump - AC 8 x 6 x18 SRL-C
  • Zn Concentrate Thickener Overflow Pump - AC 5 x 4 x 14 SRL-C
  • Pressure Filter Wash Pump (booster) - KSB: G-032-200 G10
  • 2 x Pressing Water Pump
  • Zn Concentrate Thickener Feed Box
  • 2 x Pressing Water Head Tank
  • Zn Concentrate Filter Feed Tank - 6.0 m x 7.0 m high
  • 2 x Zn Filtrate Release Tank
  • 2 x Air Receiver - 18 m3 (2.4 m x 4.0 m H)
  • Zn Concentrate Thickener Area Sump Pump Base
  • Concentrate Loadout Extraction Fan

Process Services:

  • Instrument Air Dryer - Atlas Copco FD90
  • Instrument Air Compressor - Atlas Copco GA37
  • 4 x Air Compressor (Plant/Mine)
  • Air Compressor (Plant/Mine) (Future)
  • 2 x Flotation Air Blower Intake Filter
  • Blowers Monorail Hoist - Cap 2 tonne
  • Plant Air Receiver
  • Instrument Air Receiver
  • 2 x Flotation Air Blower - Co-Vent CD2-6050
  • Wet Scrubber - Reagents Area
  • Wet Scrubber - Assay Laboratory - EHU-703
  • Wet Scrubber - Assay Laboratory
  • 3 x Scrubber Fan

Reagents Preparation & Distribution:

  • Lime Holding Tank Agitator - Hayward Gordon MBX-54
  • CuSO4 Mix Tank Agitator - Hayward Gordon STX-10
  • AP7279 Holding Tank Agitator - Hayward Gordon GX-11
  • A3418 Holding Tank Agitator - Hayward Gordon GX-11
  • PAX Mix Tank Agitator - Hayward Gordon GX-11
  • NaHS Mix Tank Agitator - Hayward Gordon STX-10
  • Flocculant tank Agitator - Hayward Gordon GX-3
  • Cyanide Mix Tank Agitator - Hayward Gordon STX-10
  • SIBX Mix Tank Agitator - Hayward Gordon GX-11
  • Lime Silo Discharge Screw Feeder (VSD)
  • Lime Slaker Grit Screw
  • Safety Shower/Eye Wash Station (Reagents Area)
  • Safety Shower/Eye Wash Station (Flotation Area)
  • Safety Shower/Eye Wash Station (Concentrate Area)
  • Safety Shower/Eye Wash Station (Grinding Area)
  • Safety Shower/Eye Wash Station (Backfill Plant Area)
  • Safety Shower/Eye Wash Station (Reagents Area)
  • Safety Shower/Eye Wash Station (Binder Area)
  • Lime Slaker Chemco: 2,000 lb/hr
  • Automatic Flocculant Mixing System
  • 4 x DF250 Metering Pump - Gala G/4b 1201 NP3 000D21000
  • DF250 Metering Pump NOT INSTALLED
  • AP7279 Metering Pump Gala 1605TTT060UD003000
  • AP7279 Metering Pump Gala 1605TTT060UD003000
  • AP7279 Metering Pump Gala 1605TTT060UD003000
  • AP7279 Metering PumpNOT INSTALLED
  • 6 x MIBC Metering Pump - Gala G/4B 0803 NP3 000D21000
  • MIBC Metering Pump - Gala 1605TTT060UD003000
  • MIBC Metering Pump - Unknown            C7970591
  • MIBC Metering Pump - Gala G/4A 1601 PP1 000D21000
  • A3418 Metering Pump - Gala G/4b 1201 NP3 000D21000
  • A3418 Metering Pump NOT INSTALLED
  • A3418 Metering Pump - Gala 1605TTT060UD003000
  • A3418 Metering Pump - Gala G/4B 0803 NP3 000D21000
  • A3418 Metering Pump - Gala G/4b 1201 NP3 000D21000
  • A3418 Metering Pump - Gala 1605TTT060UD003000
  • 2 x PAX Distribution Pump
  • 4 x Progressive Cavity Pumps (VSD) - 2 x 3
  • Reagent Area Sump Pump - D-3.5-SR-A-1100 x 60
  • Reagent Area Sump Pump
  • Lime Transfer Pump
  • 2 x Lime Distribution Pump - Goulds JC 1x1.5-11
  • Effluent Treatment Lime Pump - Goulds 3196 1.5x3-8
  • 2 x CuSO4 Distribution Pump - MAGNETIQUE
  • 2 x NaHS Distribution Pump
  • Cyanide Distribution Pump - POMPE PRICE
  • Cyanide Distribution Pump - MAGNETIQUE
  • SIBX Distribution Pump - POMPE PRICE
  • SIBX Distribution Pump - POMPE PRICE
  • Grit Box
  • Lime Dilution Tank
  • Lime Holding Tank - 5,029 m Ø x 5,88 m H
  • CuSO4 Mix Tank - 3,658 m Ø x 2,385 m H
  • CuSO4 Holding Tank - 3,658 m Ø x 2,969 m H
  • CuSO4 Feed Hopper
  • DF250 Holding Tank - 0,914 m Ø x 1,037 m H
  • AP7279 Holding Tank - 0,914 m Ø x 1,037 m H
  • MIBC Holding Tank - 1,0 m Ø x 1,5 m H
  • A3418 Holding Tank - 0,914 m Ø x 1,037 m H
  • PAX Mix Tank - 0,914 m Ø x 1,113 m H
  • PAX Holding Tank - 1,067 m Ø x 1,393 m H
  • PAX Feed Hopper
  • NaHS Mix Tank - 2,438 m Ø x 2,563 m H
  • NaHS Holding Tank - 2,845 m Ø x 2,766 m H
  • NaHS Feed Hopper
  • Flocculant Mixing Tank
  • Flocculant Holding Tank - 2,0 m Ø x 3,148 m H
  • Cyanide Mix Tank - 1,93 m Ø x 2,156 m H
  • Cyanide Storage Tank - 2,438 m Ø x 2,512 m H
  • Cyanide Feed Hopper
  • SIBX Mix Tank - 1,067 m Ø x 1,318 m H
  • SIBX Holding Tank - 1,067 m Ø x 1,826 m H
  • SIBX Feed Hopper
  • Lime Silo - 93C-207-1
  • 2x Reagent Area Sump Pump Base
  • Lime Silo Baghouse - BV-500-245
  • Lime Silo Skirt Exhaust Fan
  • Lime Slaker Exhaust Fan
  • Bin Activator - CD18-3715

Tailings Dewatering & Backfill:

  • Backfill Feed Surge Tank Agitator - Hayward Gordon LHX-9S
  • Binder Wetting Tank Agitator - Hayward Gordon GX-3
  • Filtered Tailings Weigh Scale
  • Final Tailings Pump Box
  • Filtered Tailings Conveyor - B.I.D. Canada: Job No. 06668
  • Binder Weigh Feeder - K-Tron: 20 kg/hr
  • Filtered Tailings Chute
  • Cemented Backfill Screw Mixer Feed Chute
  • Cemented Backfill Screw Mixer
  • Binder Transfer Screw
  • Binder Screw Conveyor
  • Tailings Thickener Rake and Mechanism - Outokumpu T93-4731
  • Tailings Thickener Tank - 15,25 m Ø
  • Backfill Disc Filter - GL&V 535 cu. Ft.
  • Tailings Area Sump Pump - D-3.5-SR-A-1100 x 60
  • Backfill Area Sump Pump - RNE Model 100ms/900/250
  • Slag Mixing Area Sump Pump - RNE Model 100ms/900/250
  • Cemented Backfill Pump Hydraulic Unit
  • 2 x Tailings Thickener Underflow Pump - AC 5 x 4 x 14 SRL-C
  • 2 x Final Tailings Pump - Warman 12 x 10 AH
  • 2 x Backfill Filter Feed Pump - AC 5 x 4 x 14 SRL-C
  • 2 x Disc Filter Filtrate Seal Pump
  • Cemented Backfill Pump - Putzmeister KOS 2160 HP
  • Binder Slurry Transfer Pump - WEIR: WEMCO RPP 050 FM
  • Filter Area Overhead Crane - 3 tonne
  • Vacuum Pump Monorail - 10 tonne
  • Disc Filter Vacuum Pump
  • Thickener Feed Box
  • Backfill Feed Surge Tank - 8,636 m Ø x 8,118 m H.
  • Disc Filter Filtrate Receiver - GL&V 28 HG Vacuum
  • Vacuum Water Trap - GL&V 28 HG Vacuum
  • Vacuum Seal Pot
  • Cemented Backfill Head Box
  • Slag Feed Hopper
  • Binder Wetting Tank
  • Snap-Blow Air Receiver
  • Disc Filter Vacuum Pump Silencer
  • Binder Silo
  • Truck Unloading Blower Gardner Denver Duroflow
  • Tailings Area Sump Pump Base
  • Backfill Area Sump Pump Base
  • Slag Mixing Area Sump Pump Base
  • Binder Silo Baghouse

Water Systems:

  • 2 x Process Water Pump - 731 PLUS (8 x 6, F4J1 frame)
  • Fire Water Pump - AP Aurora 481BF ; 8-481-17B
  • Fire Water Jockey Pump - AP Aurora 392-11
  • 2 x Fresh Water Distribution Pump - KSB: G 080-200 G10
  • 2 x Gland Seal Water Pump - KSB: G 050-160 G10
  • 2 x Gland Water Booster Pump - KSB: G 040-160 G10
  • 2 x River Water Pump - Peerless
  • 2 x Reclaim Water Pump
  • Fresh Water Tank - 10,0 m Ø x 11,6 m H
  • Process Water Tank - 8,0 m Ø x 11,6 m H
  • Gland Seal Water Tank - 2,5 m Ø x 3,0 m H

Cu/Pb On-Stream Analyser System:

  • Cu Flash Concentrate Sample Pump - SPVC 232-2-R-L-HD
  • Cu Flotation Feed Sample Pump - 2" x 2" x 10" SRL
  • Cu Rougher Cleaner Feed Sample Pump - SPVC 232-2
  • Cu Rougher Cleaner Concentrate Sample Pump - VF50-HD / 10 HP
  • Cu Cleaning Circuit Feed Sample Pump - SPVC 232-2
  • Cu Scavenger Tailings Sample Pump - SPVC 232-2
  • Cu Cleaner Scavenger Tailings Sample Pump - SPVC 232-2
  • Cu Circuit Tailings Sample Pump - VF50-HD / 7.5 HP
  • Cu Third Cleaner Concentrate Sample Pump - SPVC 232-2
  • Cu/Pb Concentrate Sample Pump - SPVC 232-2-R-L-HD
  • Final Cu Concentrate Sample Pump - SPVC 232-2
  • Pb Rougher Concentrate Sample Pump - SPVC 232-2
  • Pb 1st Cleaner Tailings Sample Pump - SPVC 232-2
  • Final Pb Concentrate Sample Pump - SPVC 232-2
  • Zn Rougher Concentrate Sample Pump - SPVC 232-2
  • Zn Rougher Cleaner Concentrate Sample Pump - SPVC 232-2
  • Zn Cleaning Circuit Feed Sample Pump - SPVC 232-2
  • Zn Scavenger Tailings Sample Pump - WARMAN 1.5 x 1 - AH
  • Zn Cleaner Scavenger Tailings Sample Pump - SPVC 232-2
  • Zn Third Cleaner Concentrate Sample Pump - SPVC 232-2
  • Zn Final Concentrate Sample Pump - SPVC 232-2
  • 2 x Sample Return Pump - SPVC 232-2-R-L-HD
  • 2 x Sample Return Pump - Sala VF50
  • 2 x Sample Return Pump - Sala 304 SPVC
  • Samples Vacuum Pump
  • 2 x Gorman Rupp Wheel Mounted Diesel Pump (6") - John Deere Diesel
  • Gorman Rupp Tray Mounted Diesel Pump (6") - Caterpillar Diesel
  • 2 x Gorman Rupp Skid Mounted Diesel Pump (4") - Deutz Diesel
  • 3 x Slimline Turbo Mist Evaporator
  • Allis Chalmers Slurry Pump - 8 X 6 X 18
  • 2 x Goulds Lime Pump - Model 3196 2 X 3 X 13
  • Goulds Lime Pump - Model ST 1 X 1-5 X 11 JC
  • Bredel Hose Pump - Model 65

View more Ore Processing Plants

Image 1 of 21

    Get Quote

    Get Equipment Quote

    Full Name
    Email Address
    Phone
    Questions, Informations and Comments
    Project Location
