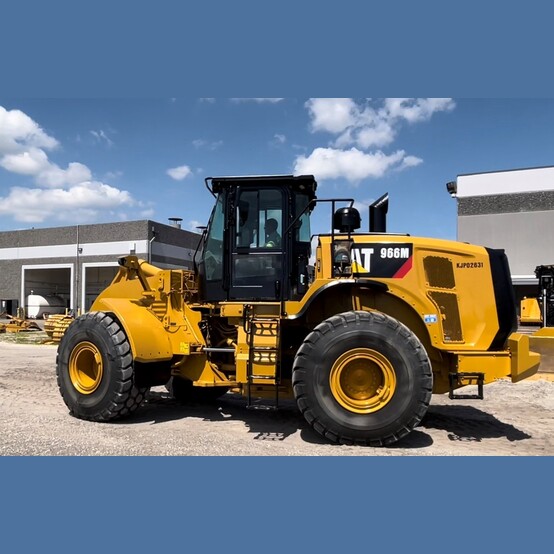

2017 CAT 966M Wheel Loader
- Make: Caterpillar
- Model: 966M
- Year: 2017
- Condition: Used, Reported in Good Condition
- Hours: 6,976
- New 5.5yd GP Bucket
- EROPS with AC
- New Paint
- Ex-Rental Machine, Well Maintained
- CAT Dealer Inspection Report Available
- Oil Samples Available
- General Model Specifications:
- Forces:
- Breakout Force: 38,984 lbs.
- Static Tipping Load - Full 37 Degrees Turn - With Tire Deflection: 32,329 lbs.
- Static Tipping Load - Full 37 Degrees Turn - No Tire Deflection: 34,873 lbs.
- Engine:
- Model: Cat C9.3 ACERT
- Power Output: 311HP
- Torque: 1,599 Nm
- Displacement: 9.3 Liters
- Transmission: 4 Speed
- Forward: 0-39.5 km/h
- Reverse: 0-39.5 km/h
- Axles
- Front: Fixed
- Rear: Oscillating 13° Degrees
- Maximum Single-Wheel Rise And Fall: 19.5in
- Hydraulic System:
- Implement System - Maximum Operating Pressure: 4,496 psi
- Implement Pump Type: Variable Displacement Piston
- Implement System - Maximum Pump Output @2,200 RPM: 95 Gal/Min
- Hydraulic Cycle Time - Total: 10.1 Sec
- Hydraulic Cycle Time - Raise From Carry Position: 6.1 Sec
- Hydraulic Cycle Time - Dump, At Maximum Raise: 1.4 Sec
- Hydraulic Cycle Time - Lower, Empty, Float Down: 2.6 Sec
- Forces:
- Location: Southeast USA
