2016 Astec BR87-50T Rail Car Loader

• Make: Astec
• Model: BR87-50T
• Year: 2016
• Condition: Used
• Hours: 4,500
• Throughput Capacity: 600-650 TPH
• Total Operating Length (25°): 86ft 9in (26.5m)
• Total Operating Width: 14ft 4in (4.4m)
• Discharge Conveyor:
  • Length: 50ft (15m) with Drop Chute
  • Discharge Height (25°): 11ft 5in (3.5m)
  • Belt:
    • Belt Width: 1200mm (48in)
    • EP 500
    • Thickness: 3 Ply (5mm Top + 1.5mm Bottom)
  • 5in Diameter Rollers
  • RHS Conveyor Support Above
  • 2 Hydraulic Drive Motors
  • 2 Hydraulic Rams for Support and Adjustments
  • 60° of Radial Coverage
  • Steel Lined Feedboot with Rubber Skirting
  • Folding Head Section for Transport
• Hopper Feeder:
  • Hopper Width: 14ft 7in (4.49m)
  • Hopper Length: 10ft 2in (3.14m)
  • Lined with 6mm Steel Plate
  • Belt:
    • Belt Width: 2200mm (87in)
    • EP630
    • Thickness: 4-Ply (6mm Top + 2mm Bottom)
    • Belt Bolted to Apron Chain
    • 2 Hydraulic Drive Motors and Gearboxes
  • Heavy Duty Feed-In Point for Trucks
• 2 Hydraulically Extending Jack Legs near the Front
• Multiple Large, Lockable, Access Doors

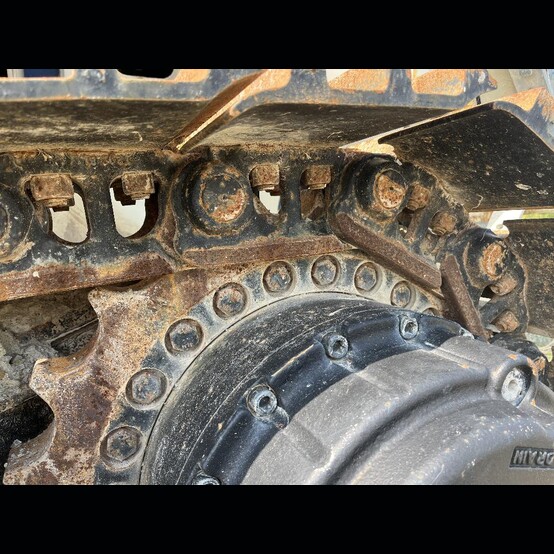

• Heavy Duty Tracks:
  • Length: 13.8ft (4.2m)
  • Width: 1.3ft (0.4m)
  • Drive: 2 Integral Hydraulic Motors
• Hydraulics:
  • Variable Pump System
  • Capacity: 132 US gal
  • Oil Type: Grade 32
• Engine: CAT C4.4 Tier 4 Diesel
• Fuel Capacity: 52 US gal (240L)
• Control Cab with Control Panel

• Overall Dimensions:
  • Transport Length (Head Folded): 72ft 5in (22.1m)
  • Transport Width (Gearboxes Removed): 10ft 3in (3.15m)
  • Height: 13.5ft (4.1m)
  • Weight: 97,003lbs. (44,003kg)

• Location: Eastern USA
