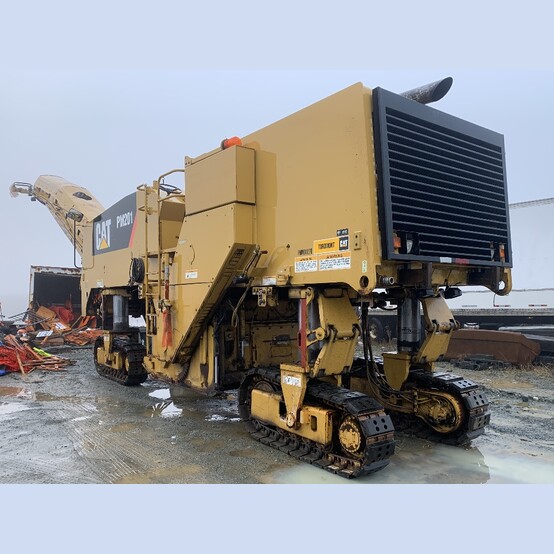

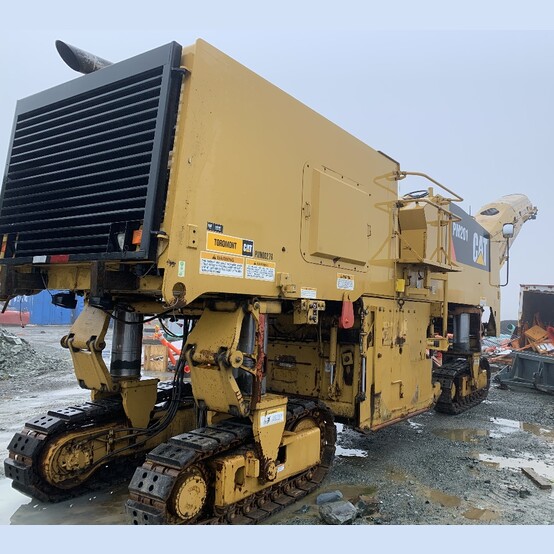

2011 CAT PM-201 Cold Planer

• Make: CAT

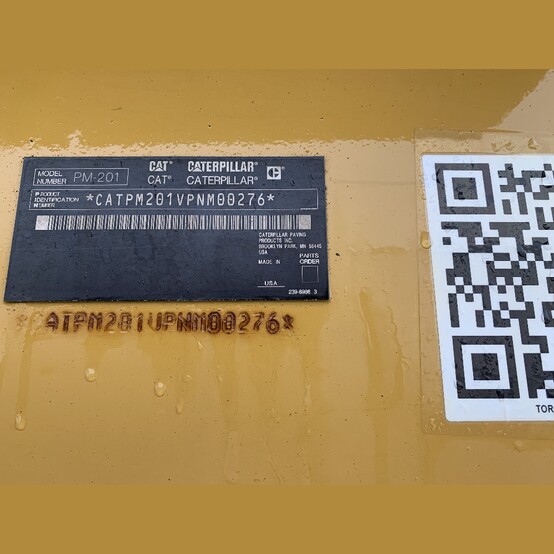

• Model: PM-201 Cold Planer
• Year: 2011

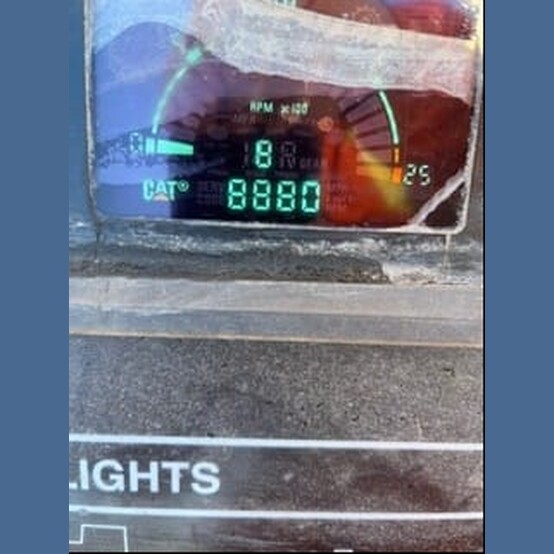

• Hours: 8,800
• Well Maintained Unit in Good Running Condition

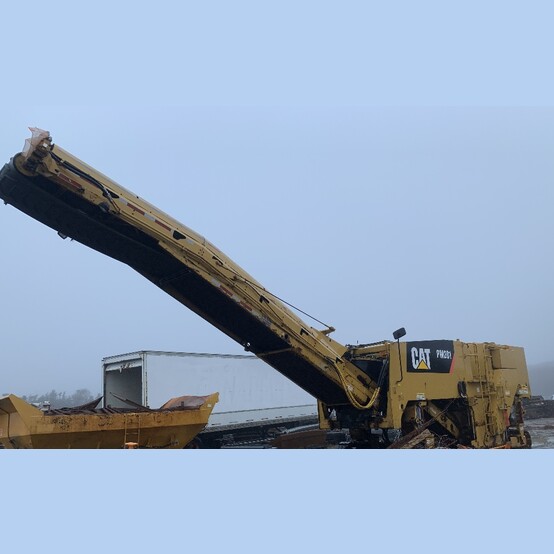

• Conveyor System
  • Discharge Conveyor Width: 36in
  • Collecting Conveyor Width: 40in
  • Discharge Conveyor Length: 25ft
  • Discharge Conveyor Maximum Speed: 760 ft/min
  • Discharge Conveyor Swing - From Center: 45°
  • Collecting Conveyor Speed: 620 ft/min

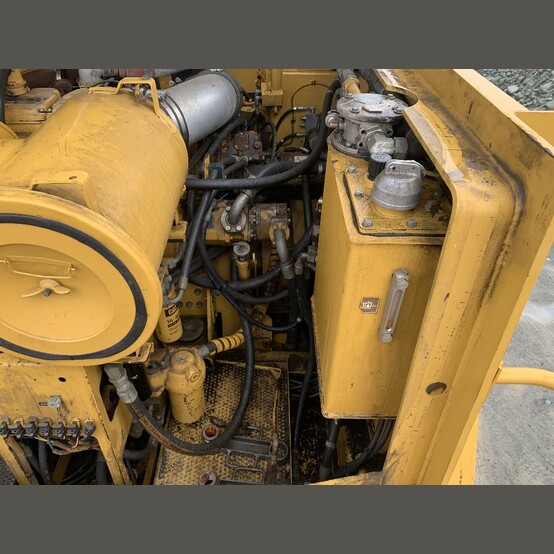

• Engine
  • Make: CAT
  • Model: C18 ACERT
  • Gross Power: 650HP @2100rpm
  • Displacement: 1,105cu in

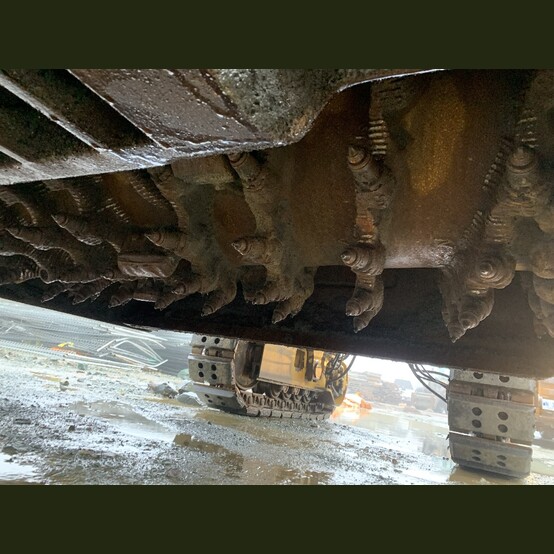

• Rotary Cutter
  • Cutting Width: 6.9ft
  • Cutting Depth: 12.1in
  • Cutter Diameter: 46in
  • Number Of Tools: 190


• Operational
  • Operating Weight - Full Load: 86,360 Lbs.
  • Fuel Capacity: 250 Gal
  • Hydraulic System Fluid Capacity: 180 Gal
  • Water Spray System Fluid Capacity: 1,000 Gal
  • Engine Oil Capacity: 17 Gal
  • Cooling System Fluid Capacity: 21 Gal
  • Operational Voltage: 24V
  • Operating Speed: 132ft/min
  • Travel Speed: 3.7 mph
  • Inside Turn Radius: 15.4ft


• Overall Dimensions: Shipping
  • Length: 51.5ft (With Conveyor Down)
  • Width: 8.4Ft
  • Height: 10.6Ft
  • Weight: 76,950 Lbs.


• Location: Eastern Canada
