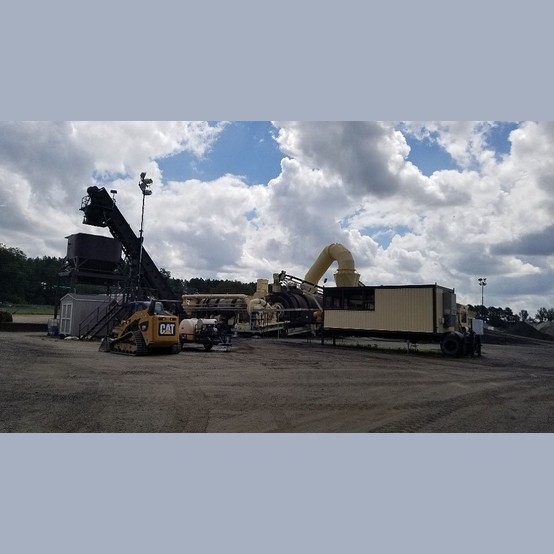

2001 Portable 500 TPH Recycle Counter Flow Astec Plant ID: 291728


  • 2001 Cold Feed System
  • Fully Portable
  • Model: 4BF-130691-2A
    • 5 Bin System
      • (5) 9ft. x 14ft. Bins with
      • Extensions
      • Dividers
      • on a Portable Frame
      • Triple Axle Portability Package
    • Feeders
      • 30in. x 10ft. long
      • Driven by 5 HP AC Motors
    • Collecting Conveyor
      • 20ft. Foldable Stinger on the end for Transportation
    • Cold Feed System
      • Sits on Steel Legs
    • Bins Include Free Standing Relocatable Ramp Wall
    • Side Mounted NEMA Box with
      • 5 Updated A.C Variable Frequency Inverters
  • Model: PSS-512 (Screen and Conveyor System)
    • 4ft. x 12ft. Double Deck Screen
    • Astec Portable 34in. wide 85ft. long Heavy Channel Frame Belt Conveyor
    • Feeds a 500 TPH Pugmill
    • Single Axle
    • Hydraulic Raise
  • Model: PLM T500-60
    • 500 TPH Twin Shaft Pugmill with
      • Two Drive Motors
    • Material Bypass Chute
    • 34in. x 40ft. Incline Weigh Bridge Channel Conveyor
      • Feeds Dryer
    • Single Axle Chassis
  • 2001 Counter Flow Dryer
    • Model: PAD 937C
    • Astec Portable Quad-Axle Counter Flow Recycle Dryer
    • 9ft. dia and 37ft. long
    • Chain Driven by
      • Single 200 HP Drive Package
    • Gravity Feed Chute into Dryer
    • Hauck SJO 750 Burner Burn Recycled Oil
    • Powered by a 200 HP Motor
    • Dryer Dumps the Dried Materals into Mixing Drum
    • Dryer Assembly Includes
      • Steel Timber Cribbing
      • Hydraulic Leveling
    • Shell has an Average Thickness of .400
    • Drive Chain and Sprockets have 75% Life Left
  • 2001 Mixing Drum
    • Model: BTX822
    • Astec Portable Tandem Axle Mixing Drum
    • 8ft. Dia. and 22ft. Long
    • Trunnion Driven by 4 x 25 HP Motors
    • Gravity Feed Chute Introduces Virgin Materials and Recycle into the Drum
    • Shell has Insulation and Stainless Steel Skin Wrapped around for Heat Retention
    • Front has the Scavenger Fan Mounted Over Goose Neck
    • Triple Axle
  • 2012 Wrap Around Recycle System
    • 2 Bin System
    • (2) 8 ft. dia and 22ft. long
    •  Heavy Duty Incline Grizzly's
    • Bin Vibrators
    • Bins Feeders are Horizontal with
      • 36in. x 16ft. Variable Speed Feeders
      • 10 HP A.C Motors
    • Variable Frequency Drives are Mounted in a Nema Side Cabinet
    • Feed a 36in. Incline Channel Conveyor to a Single Deck Screen
    • 4ft. x 10ft. Single Deck Screen Feeds Over Flow Materials back to a Frame Mounted Rap Crusher to Re-Feed the Screen Again.
    • Weigh Belt Conveyor is Mounted on a Common Portable Tandem Axle Self-Erecting Frame
    • 36in. wide and 60ft. long Lattice Conveyor has a Single Axle and 20 HP Motor
  • 2001 Pollution Control
    • Model: PBH 85SP
    • Portable Astec Direct Pulse Baghouse
    • Filters 85,000 CFM of Dust-Landen Air at a 5.8 to 1 Air to Cloth Ration with 1400 Bags
    • All Inlet and Outlet Dust Work with an Asec Fan
    • Twin 200 HP Motors
    • Inlet Damper
    • Dust Removed from Baghouse by Tandem Auger's Driven by a 5 HP Motor
    • 40 HP Screw Type Air Compressor Provides the Air
    • Baghouse Fan on a Tandem Axle Trailer
    • Primary Cyclone Mounted on the M.C Trailer for Precleaning of Heavy Dust Particulates
    • Approx. 150,000 Tons on the Bags
  • 2001 Asphalt Storage System
    • Model: SEB10036
    • Astec 100- Ton Self Erect Surge Bin System
    • Holding Capactiy: 100 Tons Weighing 120 Pounds per Cubic Foot
    • Clam Gates have a 5ft. x 18in. Opening
    • 36in. Double Chain Slat Conveyor has a Reject Gate and Can Handle 500 TPH with a 75 HP Motor
    • 100-Ton Surge Bin is Mounted on Load Cells for Accurate load out into Trucks
    • Whole Unit is Mounted on a Quad Axle Assembley for Transportation
  • 2001 Control House with Controls
    • Astec Pilot III Control House is One Room 10ft. x 22ft.
    • Atsec Controls were Upgraded to New Astec PM-2 Computer Controls
    • Mixing Drum
    • Baghouse Cross Screw
    • Dryer Motors are Set Up with Frequency Drive Inverters
    • Single Axle
  • 2001 Motor Control Center
    • Model: PCY 855PS03
    • Motor Control Center with All Starters and Breakers is Mounted on the Front of the Cyclone
    • 15,000 Gallon Fuel Tank
    • M.C are Seimens and Includes Soft Starts for the Burner Mixing Drum and Baghouse Exhaust Fan Motors
    • S/O Type Wiring with Quick Disconnect Plugs
    • Tandem Axle Trailer
  • Liquid Asphalt System
    • One 2001 CEI 30,000 Gallon Single Compartment with AC Metering Pump
    • Heatec
      • Model: HC-100a/
    • 1 MBTU Combo Oil/Gas Hot oil Heater is mOunted along with Unloading Pump Mounted on a Goose-Neck on Tank
    • Tank is Mounted on a Triple Axle Frame
    • 4in. Plant Metering Skid on the Rear Deck of A.C Tank
  • Other Equipment
    • 8ft. x 40ft. Portable Trailer is Provided for the Spare Parts for the Plant
    • Hydraulic Pump Kit is Loacted inside along with Misc. Bags, Belts, Bearings etc.
  • Location: Eastern USA
