18in Wide x 27ft Long Flat Belt Conveyor

• Type: Flat Conveyor
• Condition: Used Condition
• Size: 18in Wide x 27ft Long
• Belt: Chevron Belting
  • Ply: 3 Ply
  • Top Cover Thickness: 3/16in
  • Back Cover Thickness: 1/16in
• Head Pulley: 11in Diameter - Rubber Lagged
• Tail Pulley: 11in Diameter - Plain, Steel
• Idlers: Trough Only
• Sides: 9in Tall with 2ft Tall Extensions at Drive End

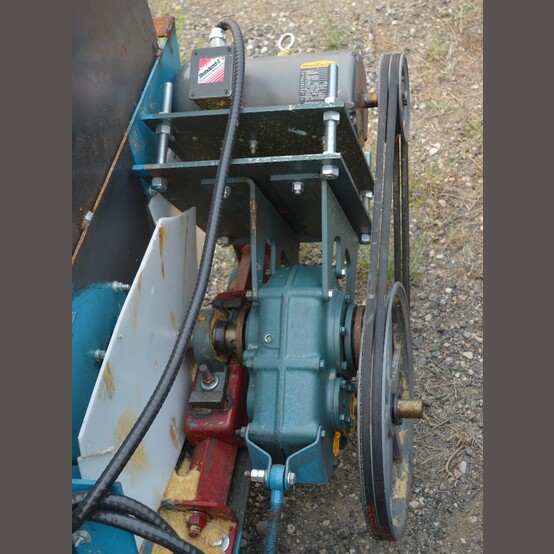

• Drive: Baldor Electric Motor, Belt Drive
  • Power Output: 5HP

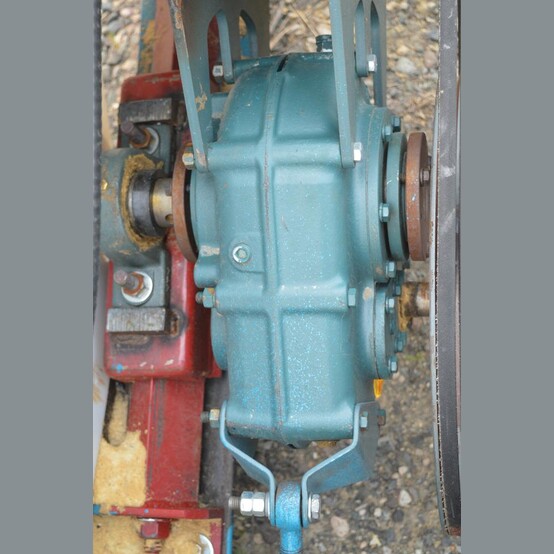

• Reducer: Dodge Shaft Mount Reducer
  • Model: TXT425BT
  • Ratio: 24.38:1


• Overall Dimensions:
  • Length: 27.5ft
  • Width: 4ft
  • Height: 4ft


• Location: Savona, British Columbia, Canada
