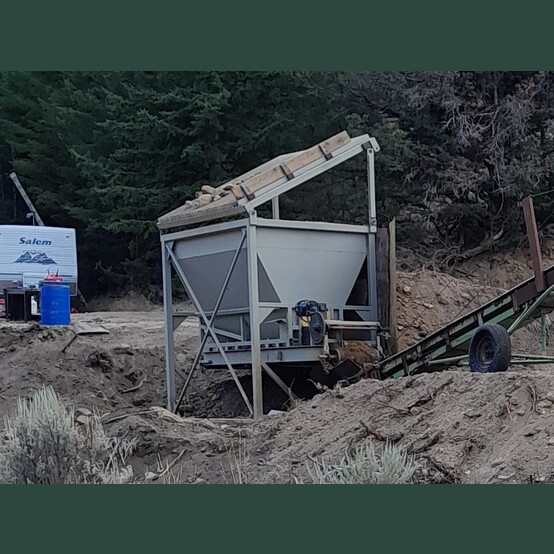

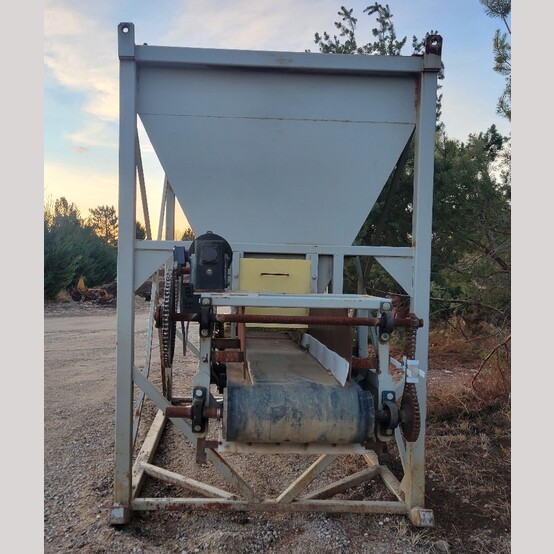

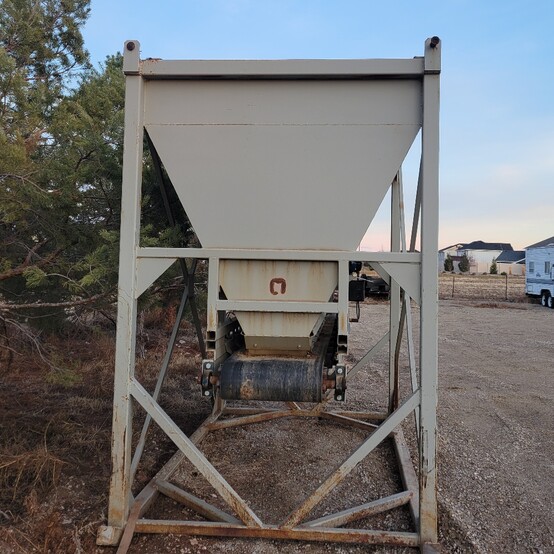

10yd³ Belt Feeder

• Make: Custom
• Type: Belt Feeder
• Condition: Used Condition
• Capacity: 10yd³


• Hopper:
  • Dimensions:
    • Feed Opening: 6ft Wide x 10ft Long

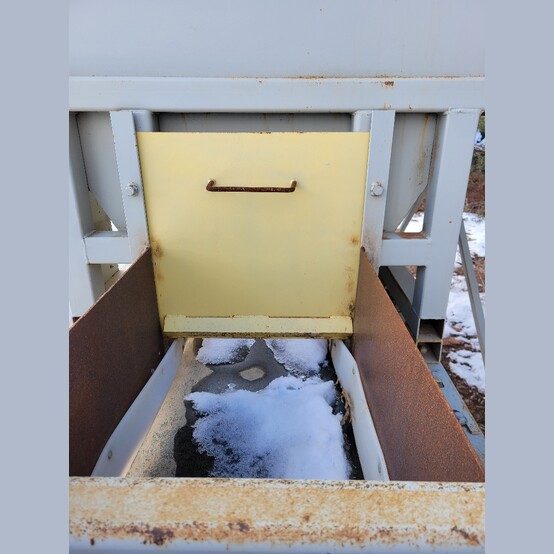

    • Adjustable Discharge Door: 15in Wide and Can Be Opened from 4in-15in

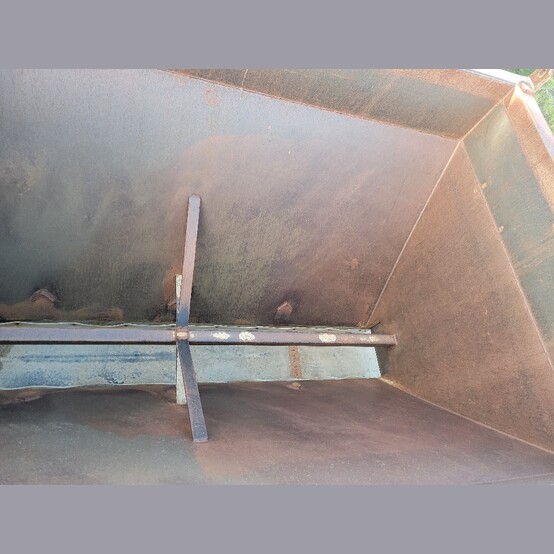

    • Interior Dimensions: 6ft Wide x 10ft Long x 6ft Deep
    • Overall Dimension: 6ft 8in Wide x 11ft 4in Long x 10ft High
  • Construction:
    • Frame: 4in x 4in x 0.25in Square Tubing
    • Thickness: 3/16in Tick Plate
    • Weight: 6,000 Lbs. Approx.

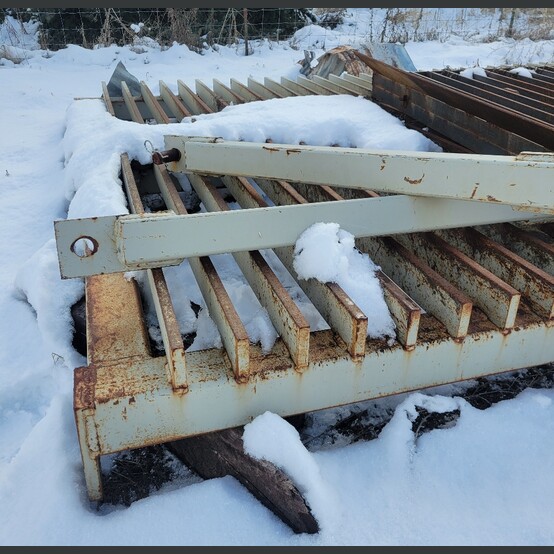

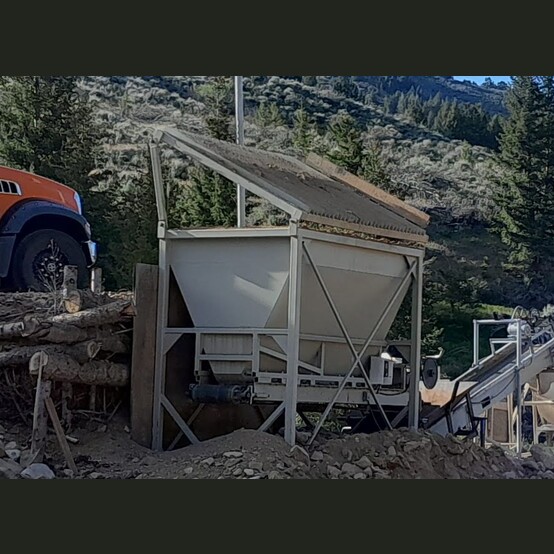

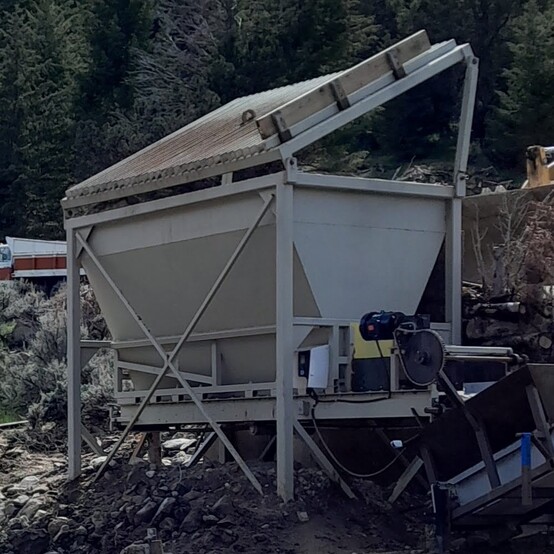

• Grizzly:
  • Spacing: 3in Spacing
  • Angle: 42° Set Angle
  • Design: Pin-On Design - With Pins and Support Arms
  • Construction:
    • Frame: 4in x 4in x 0.25in Square Tubing
    • Bars: 3in x 3/4in Flat Stock
    • Dimensions: 8ft Wide x 10ft 8in Long
    • Center Mounted Lifting Hook for Easy Install/Removal
    • Weight: 3,000 Lbs. Approx.

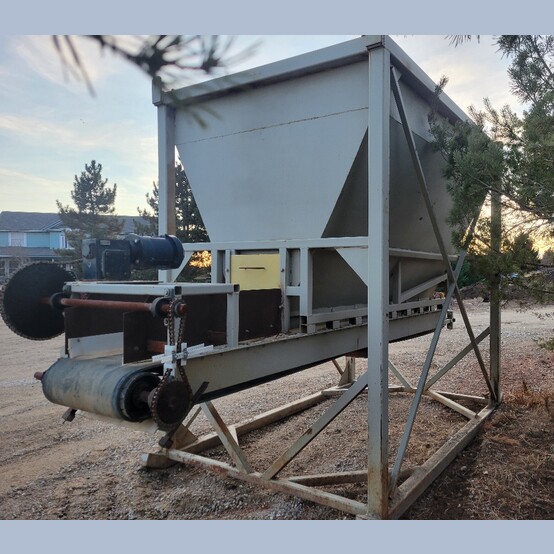

• Conveyor:
  • Size: 24in Wide x 15ft Long
  • Weight: 2,000 Lbs. Approx.
  • Throughput: 5-60yd³ Per Hour with Feed Gate and VFD

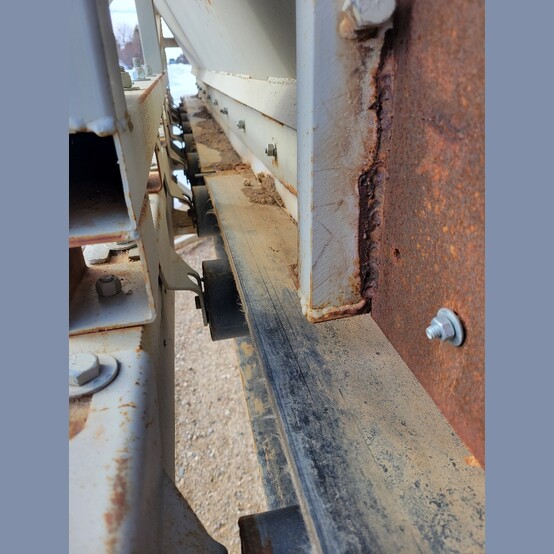

  • Idlers: (11) 4in Dia. Straight Steel Idlers

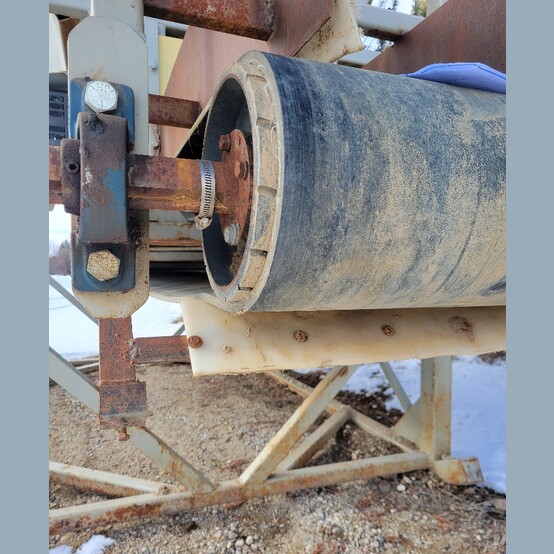

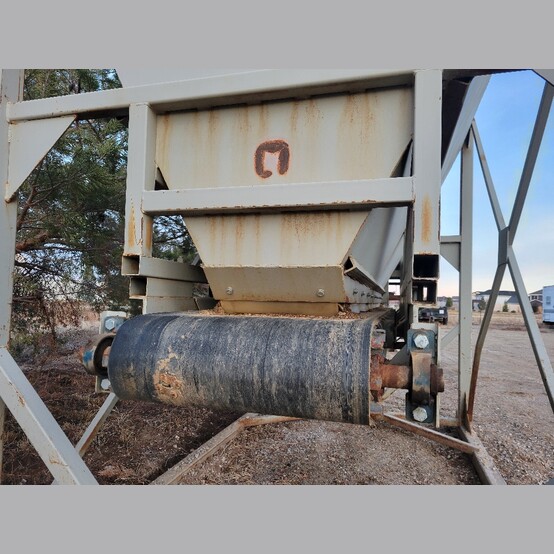

  • Head Pulley: 9in Dia. - Rubber Lagged
  • Tail Pulley: 8in Dia. - Steel Winged
  • Belt Wiper Installed Underneath Conveyor

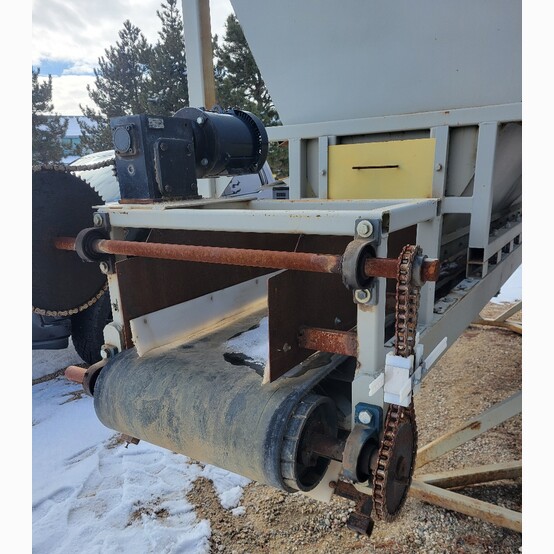

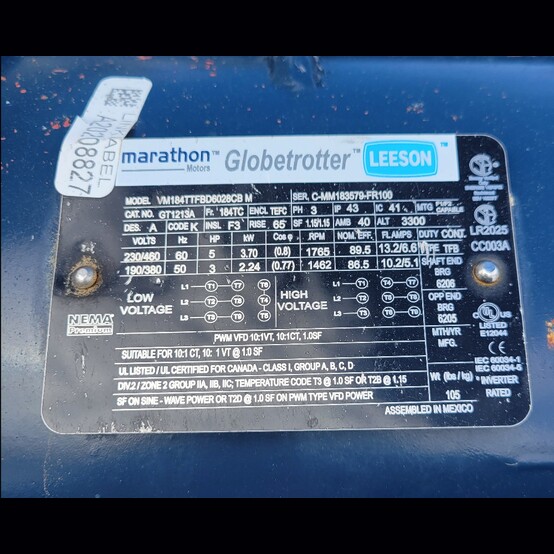

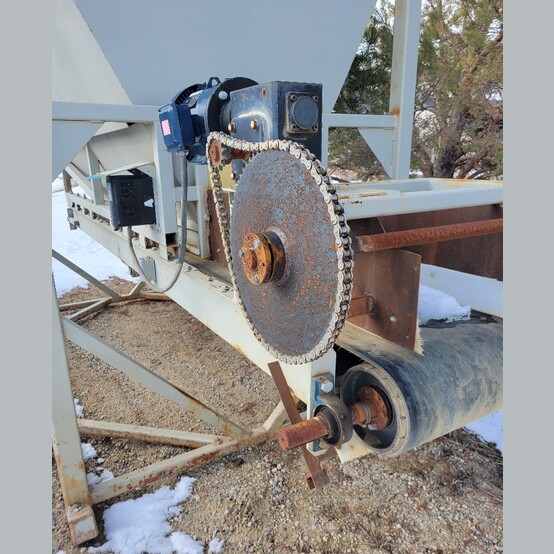

  • Drive: Marathon Electric Motor with Reducer and VFD
    • Power Output: 5HP (3HP)
    • Rotating Speed: 1765 RPM (1462 RPM)
    • Voltage: 230/460 Volt (190/380 Volt)
    • Current: 13.2/6.6 Amps (10.2/5.1 Amps)
    • Frequency: Dual Frequency: 60Hz (50Hz)
    • Phase: 3-Phase

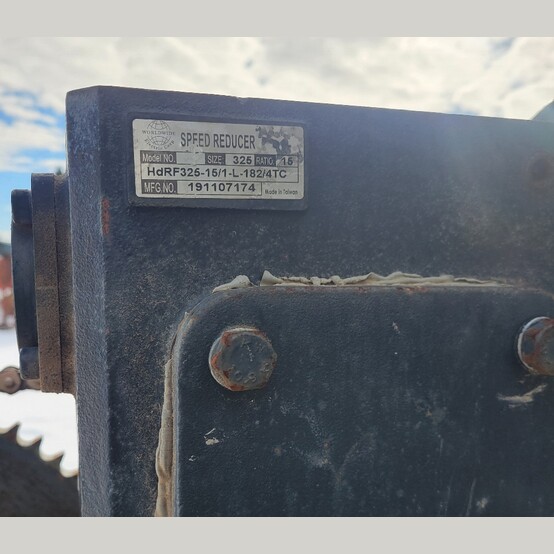

    • Reducer: Worldwide Gear Reducer
      • Ratio: 15:1

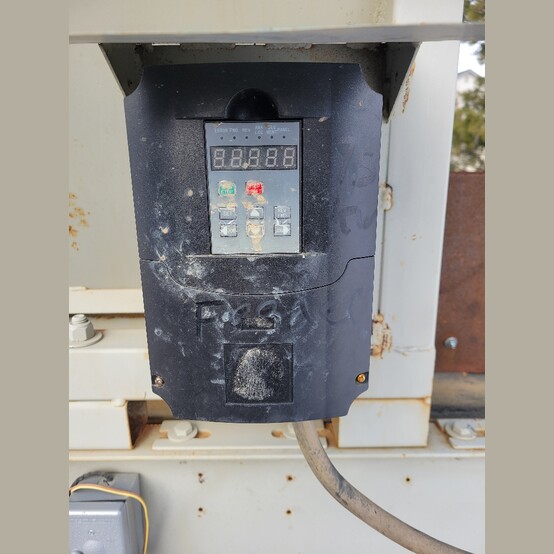

    • VFD Equipped
      • Accepts Single Phase or 3-Phase Input
      • Buyer Will Need to Wire Plug


• Overall Dimensions:
  • Length: 15ft
  • Width: 6ft 8in
  • Height: 10ft
  • Weight: 11,000 Lbs. Approx.


• Location: Northwest USA
