Complete Derocker Package

  • 10 x 20 Derocker
  • Lister 3 Cylinder Diesel Hydraulic Drive
  • Cornell Centrifugal Pump

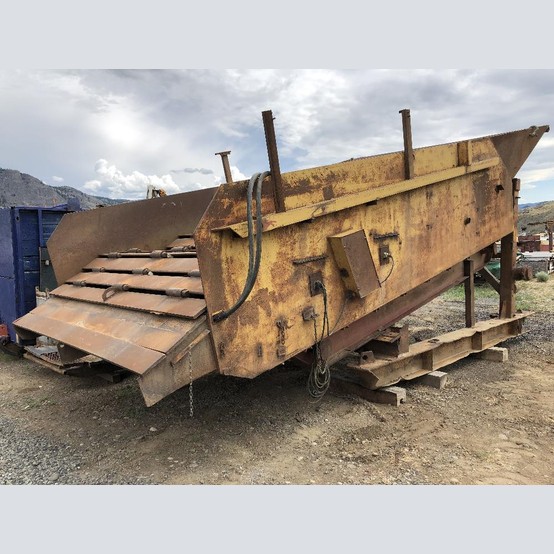

Derocker

  • Hopper Dimensions: 10 ft. Wide x 23 ft. Long x 3 ft. High to Flights
  • 24 Flights
    • 8 in. Wide x 10 ft. Long x 7/8 in. Thick
  • 4 Axles with
    • Tires Under Flights
  • Overall Dimensions: 139 in. Wide x 25 ft. Long x 142 in. High

Lister 3 Cylinder Diesel Hydraulic Drive

  • Model: B.S.649
  • HP: 6
  • RPM: 1500
  • Pump
    • Inlet Size: 1.5 in.
    • Outlet Size: 1 in.

Cornell Centrifugal Pump

  • Pump
    • 10 in. x 8 in. Centrifugal Pump
  • Cat 8 Cylinder Diesel Engine
    • Model: D 336
    • Hih Idle: 2455 RPM
    • Full Load: 2200 RPM
    • HP: 340 @ Sea Level
  • Tidy Tank
    • Dimensions: 29 in. Wide x 50 in. Long x 24 in. High
  • Overall Dimensions: 63 in. Wide x 150 in. Long x 79 in. High

2 Section Sluice Box

  • Section 1
    • 48 in. Wide x 20 ft. Long x 13.5 in. Deep
    • Lined with
      • Minors Moss
      • Expanded Metal
    • Opening on Expanded Metal: 1 in. Wide x 3.5 in. Long
  • Section 2
    • 48 in. Wide x 15 ft. 4 in. Long x 13.5 in. Deep
    • Lined with
      • Minors Moss
      • Expanded Metal
    • Opening on Expanded Metal: 1 in. Wide x 3.5 in. Long

Spray Bar

  • Dimension: 12 ft. Wide x 78 in. Long

Over Size Chute

  • 9 in. High on other end
  • 23 in. Wide x 173 in. Long x 21 in. High on One End
  • 10 in. Intake Hose
    • 151 in. Long
  • 10 in. 12 Bolt Flange on One End
  • 10 in. Foot Valve on Other End
  • Location: British Columbia, Canada
