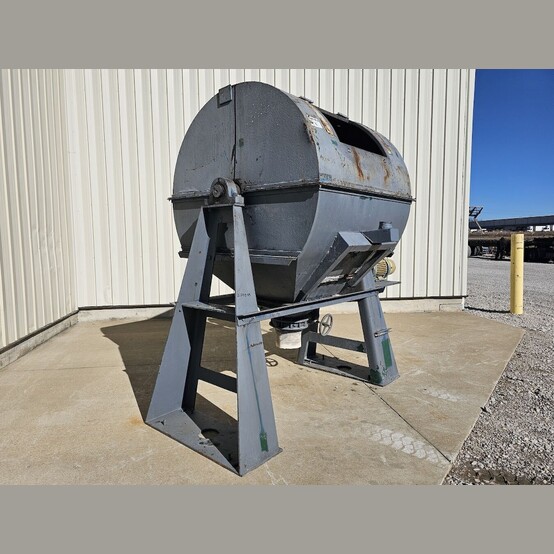

42in Dia. x 48in Paul O Abbe Batch Mill

• Make: Paul O Abbe
• Model: 5BM
• Condition: Used
• Drum Size:
  • Diameter: 42in Diameter
  • Length: 48in Long
  • Total Volume: 38ft³
  • Dry Working Capacity: 23ft³
  • Wet Working Capacity: 10ft³
• Internal Lifter Bars at 180°
• Drum Opening:
  • Length: 24in
  • Width: 11in
  • Includes Screen/Gate and Solid Cover
• Clam Shell Dust Housing with Discharge Hopper
  • Manual Butterfly Valve: 10in Diameter
• Base Elevation to Discharge: 29in

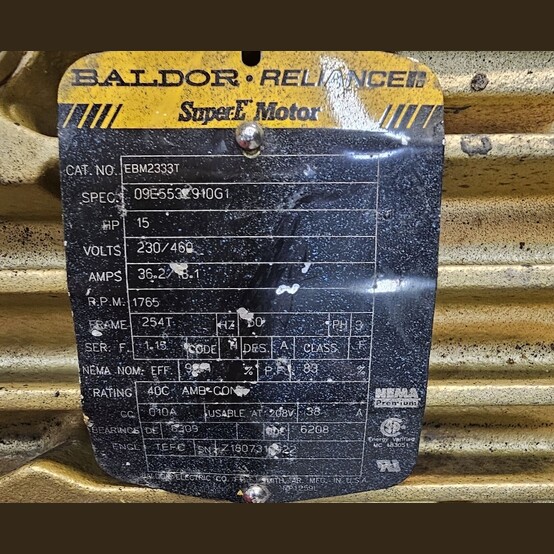

• Drive: Electric Motor
  • Power Output: 15HP
  • Voltage: 230/460 Volt
  • Current: 36.2/18.1 Amp
  • Rotation Speed: 1,765RPM
  • Frequency: 60Hz
  • Phase: 3-Phase
• Base Area Mounting: 48in x 106in


• Location: Eastern USA
