Topcast Tilting Induction PGM Gold Furnace ID: 137669


  • Topcast TMF-60R PGM Tilting Induction Furnace.
    • Coreless induction melting furnace capable of melting ferrous, non-ferrous or precious metals. Electric tilt.
    • Suitable for Platinum, Gold, Silver, Steel, Brass
      • Complete with:

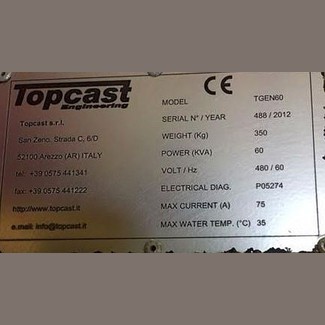

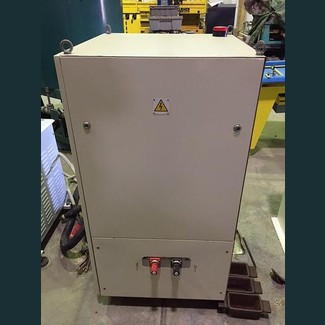

        • Topcast Induction Generator.
          • Model: TGEN60.
            • 60 kW power supply for induction heating.
            • Frequency: 1-25 kHz.
            • 480V, 60 Hz.

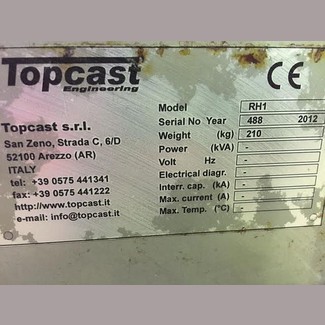

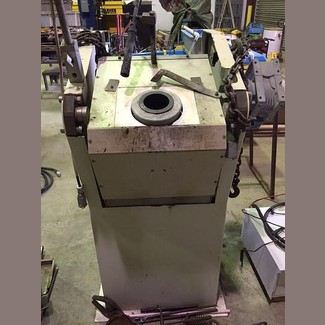

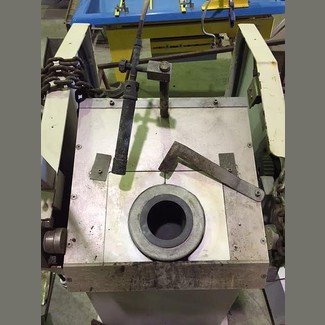

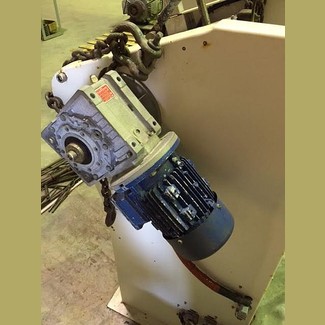

        • Topcast Tilt Induction Furnace.
          • Model: RH1.
            • 600cc graphite crucible.

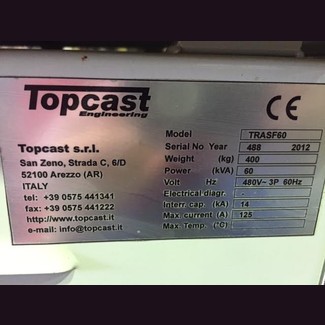

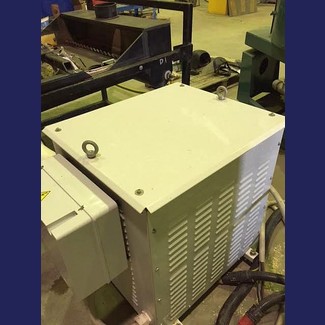

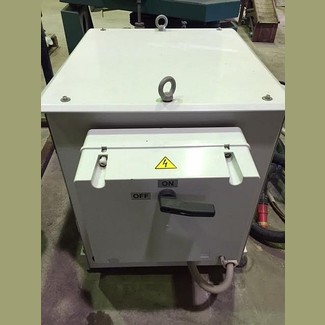

        • Topcast 60 kVA Transformer.
          • Model: TRASF60.
            • 480V, 60 Hz.

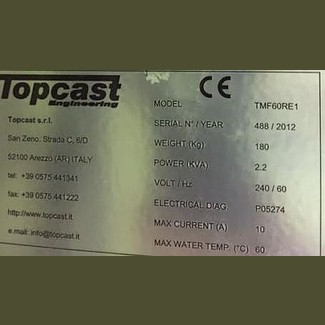

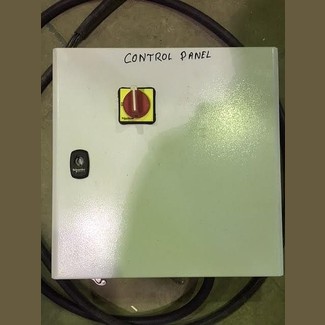

        • Topcast Control Panel.
          • Model: TMF60RE1.

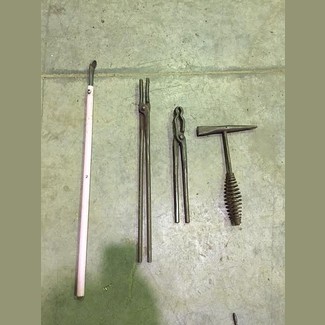

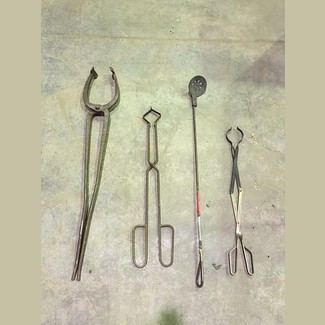

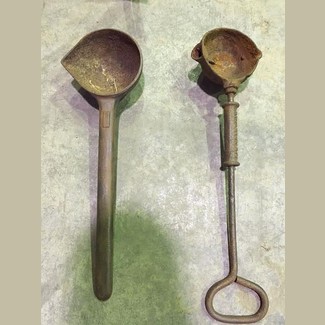

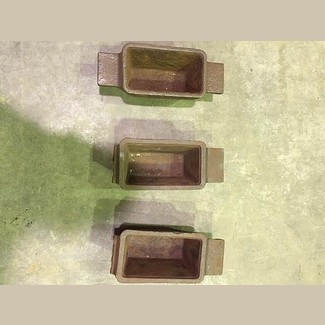

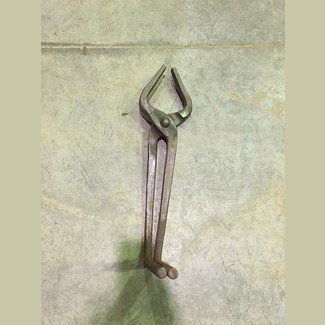

        • Assorted smelting tongs, molds, tools and three aluminum aprons.



  • Shipping information:
    • Dimensions (L x W x H):
      • TGEN60 Induction Generator:
        • 35 in. x 34 in. x 54 in.
        • 89 cm x 86 cm x 137 cm.
          • Weight: 772 lbs / 350 kg.
      • RH1 Induction Furnace:
        • 32 in. x 34 in. x 54 in.
        • 82 cm x 86 cm x 137 cm.
          • Weight: 463 lbs / 210 kg.
      • TRASF60 Transformer:
        • 40 in. x 29 in. x 36 in.
        • 102 cm x 74 cm x 91 cm.
      • TMF60RE1 Control Panel.
        • 16 in. x 11.5 in. x 19 in.
        • 41 cm x 29 cm x 48 cm.
          • Weight: 26 lbs / 12 kg.



Please contact us for more information.
