RDH Cretemaster 600R Concrete Remixer ID: 1296203

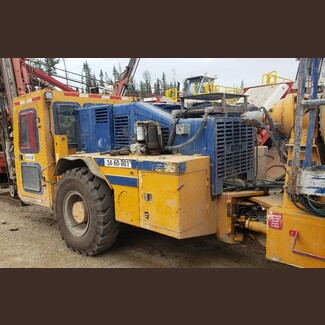

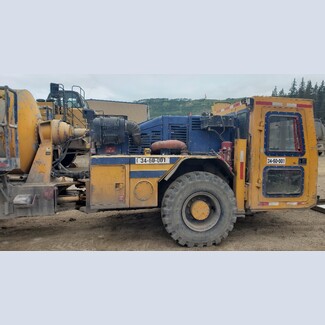

RDH Cretemaster 600R Concrete Remixer

Quantity: 2 Units Available

• Make: RDH/Maxon
• Model: Cretemaster 600R/4.50M
• Serial(s): 259, 260
• Year: 2014
• Drive: 4WD
• Articulated Heavy-Duty Frame
• Proven to Withstand Impacts and Stresses of Mining Application


• General Model Specifications:

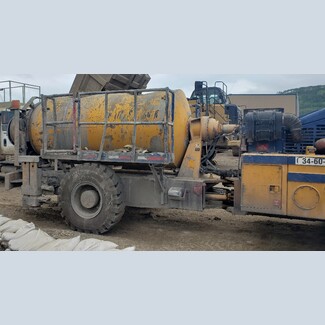

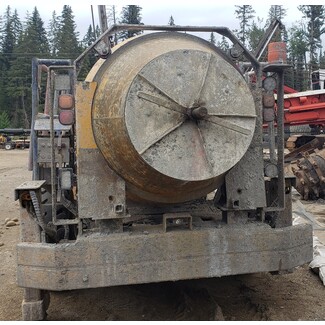

  • Concrete Drum:
    • Maximum Transportation Capacity: 4.5m³ (5.9yds³)
    • Drum Volume: 5.2m³ (6.8yds³)
    • Hydraulically Operated Mixing and Loading
    • Adjustable Rotation Speed in Both Directions: 0-13 RPM
    • Abrasive Resistant Steel Drum
    • Two Round Filling Hatches
    • Aluminum Rear Hatch
    • 2 Heavy-Duty Support Bearings
    • 2 Heavy-Duty Roller Bearings

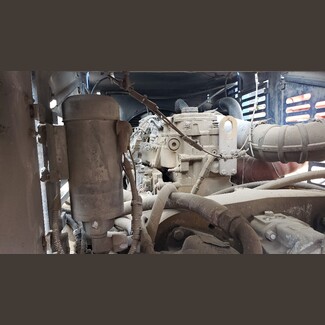

  • Engine:
    • Make: Cat® C6.6 ACERT Diesel Engine Tier 3
    • Power Rating: 212HP (158kW) @2200 RPM
    • Compression Ratio: 16.5:1
    • Displacement: 6.6 L (402.8 in³)
    • Exhaust: Catalytic Purifier with Silencer
    • Fuel Tank Volume: 227 L


  • Transmission:
    • Make: Dana Powershift, 32000-Series
    • Speeds: 4 Speeds Forward and Reverse
    • Drive: 4 Wheel Drive


  •  Axles:
    • Make: Dana 113
    • Type: Planetary
    • Oscillation (Rear Axle): +7°


  • Brakes:
    • Service: Wet Disc (Integrated), Internal SAHR
    • Emergency & Parking: SAHR


  • Steering:
    • Type: Hydraulic, Articulated
    • Steering Angle: +38°


  •  Hydraulics
    • Drum: 170 bar, 190 L/min/2200 rpm
    • Steering: 152 bar, 76 L/min/2200 rpm
    • Hydraulic Oil Tank Volume: 227 L


  • Electrical System
    • Voltage: 24 V
    • Battery: 2 x 12 VDC
    • Tramming/Working LED Lights: 4 Front / 4 Rear
    • Brake Lights: 2 Rear
    • Horn & Reverse Alarm


  • Miscellaneous
    • Central Grease Point – Manual

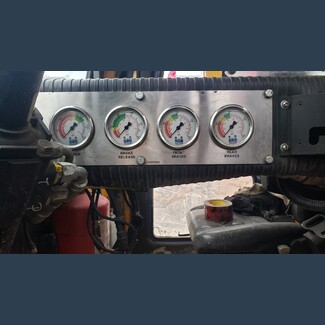

    • Standard Gauges and Instrumentation
    • ANSUL Fire Suppression System - Manual
    • Copy of Parts/Operator/Service Manuals
    • Passenger Seating
    • Suspension Seating (Operator/Passenger)
    • ROPS/FOPS Certified Canopy
    • Hydraulic Driven Air Compressor
    • Articulated Heavy-Duty Frame

• Overall Dimensions:
  • Length: 317in
  • Width: 93in
  • Height: 108in
  • Weight: 35,186 Lbs.


• View Spec Sheet Below


• Location: Western Canada
