250kW CAT XQ225 Diesel Generator ID: 1182568

250kW CAT XQ225 Diesel Generator

• Make: Caterpillar
• Model: XQ225
• Duty: Prime/Continuous

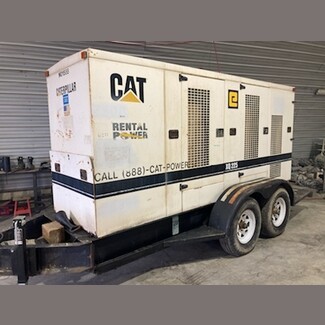

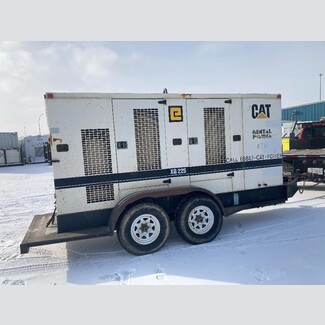

• Portable/Stationary: Portable, Trailer Mounted

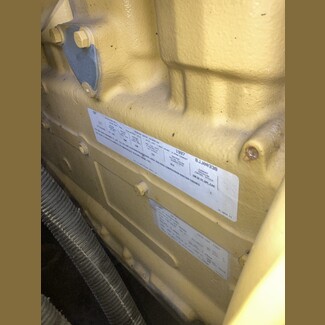

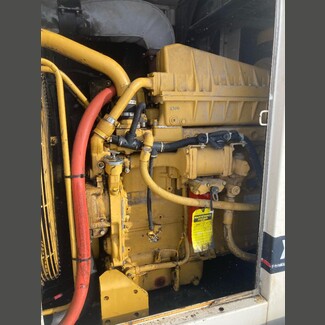

• Engine: CAT 3306ATAAC (316HP)

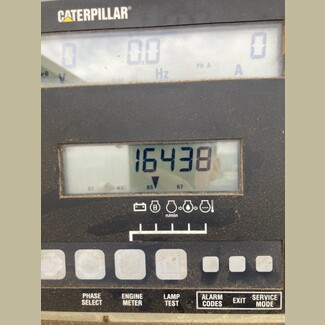

  • Hours: 16,500
  • Oil: Requires CF-4 Oil, Capacity - 29.0 Liters
  • Radiator: Air to Air, Charge Air Cooled, Capacity - 45.5 Liters


• Generator:
  • kVA/kW:
    • Prime: 250kW (312.5 kVA)
    • Continuous: 200kW (250 kVA)
  • RPM: 1800
  • Voltage: 208/480V
  • Amperage:
    • 208V: 781 Amps
    • 480V: 338 Amps
  • Frequency: 60Hz
  • Phase: 3-Phase
  • Main Breaker:
    • 208V: 800 Amp
    • 480V: 400 Amp

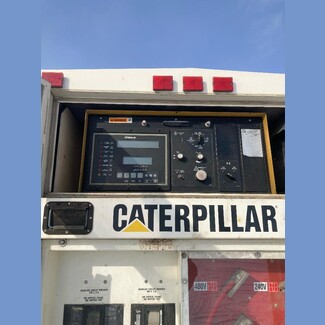

  • Output Panel: EMCP II (Electronic Modular Control Panel)


• Overall Dimensions:
  • Length: 221in
  • Width: 75in
  • Height: 103in
  • Weight: 11,000 Lbs.


• Additional Information:
  • Mounted in Sound-Attenuated Enclosure
  • Shock Mounted Control Panel
  • From Very Well-Maintained Rental Fleet


• Location: Canada
