12ft. x 70ft. Bridge ID: 1117763

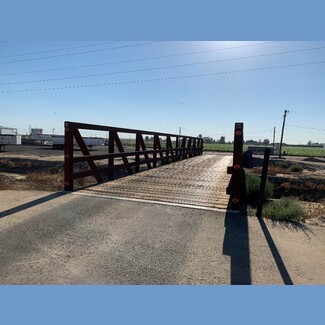

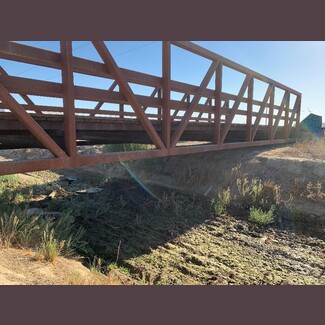

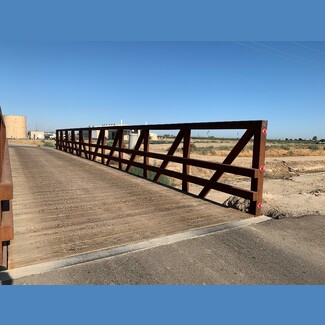

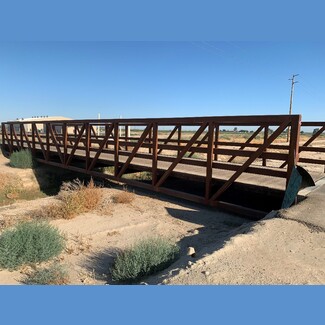

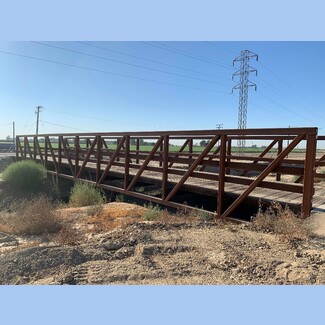

12ft x 70ft Bridge

100% MADE IN USA

Manufacturing Date:
• May 2018

Steel:
• High Strength, Low Alloy, Self-Weathering, and Atmospheric Corrosion Resistant

Dimensions:
• Truss Span = 70’-2” L
• Truss Deck = 12’-0” W (I.D. = 11’-10”)
• Deck/Rub Rail Type = 4in x 12in Douglas Fir-Larch #1 (0.4 Lbs. of Preservative Per Cu/Ft.)
• Deck Weight (PSF) = 17

Wide Flange Floor Beam to HSS Truss Connection:
• End Floor Beam = W12X22
• Interior Floor Beam = W12X22
• Bottom Chord = HSS6X6X1/4
• End Vertical = HSS6x6x1/4
• Interior Vertical = HSS6x4x1/4

Maximum Capacity:
• 5 Axle 80,000 lbs.

Weight:

•  Total Bridge Lifting Weight with Deck = 44,000 Lbs

Included

• Approved Set of Drawings from Manufacturer
• Structural Calculations
• Bridge Installation Guide

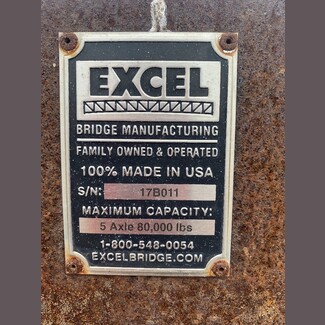

• Maximum Load Calculation Plate


• Location: Western USA
