Sold

Versa Drill KmN1.4SM Tracked Diamond Core Drill

• Make: Versa Drill
• Model: KmN1.4SM
• Type: Diamond Core Drill
• Style: Mobile Tracked Unit
• Year: 2022
• Hours: 4,880.6 Hours
• Condition: Used Condition
• Upgraded Guarding for Tier One Mines with Auto Shut-Offs
• Upgraded Wireline
• Optimized Design for Surface Operation with Low Above-Ground Pressure

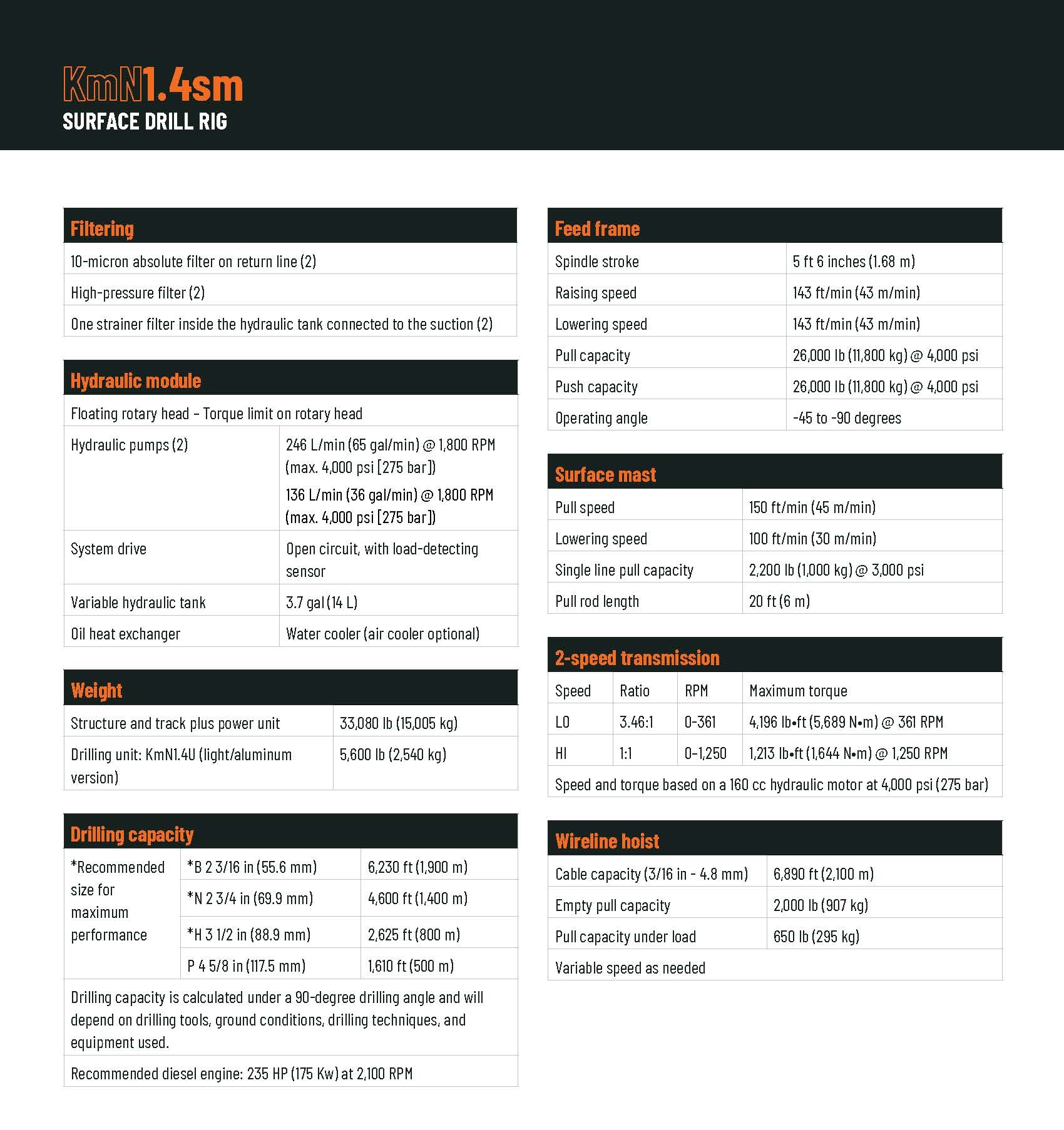

• General Model Specifications:
  • Drilling Capacity:
    • "B" (55.6 mm): 6,230ft (1,900m)
    • "N" (69.9 mm): 4,600ft (1,400m)
    • "H" (88.9 mm): 2,625ft (800m)
    • "P" (117.5 mm): 1,610ft (500m)


  • Rotary Head and Chuck:
    • Holding Capacity: 38,000 Lbs. (17,236 kg)
    • Spindle Interior Dimension: 4.9in (124mm) for PWL Drill Rod
    • Chuck Operation: Spring Closed and Hydraulically Opened
    • Final Drive: HV-80-3 Chain in an Oil Bath
    • Hydraulic Motor: HI-LO 2-Speed Mechanical
    • Rotary Head Ratio: 1:2.33 Pressurized by Pump, Filter, and Cooler
    • Lubrication Speed: From 0 to 1,250 RPM


  • Feed Frame:
    • Spindle Stroke: 5ft 6in (1.68m)
    • Raising Speed: 143 ft/min (43 m/min)
    • Lowering Speed: 143 ft/min (43 m/min)
    • Pull Capacity: 26,000 Lbs. (11,800 kg) @ 4,000 PSI
    • Push Capacity: 26,000 Lbs. (11,800 kg) @ 4,000 PSI
    • Operating Angle: -45 to -90 Degrees


• Location: Western USA
