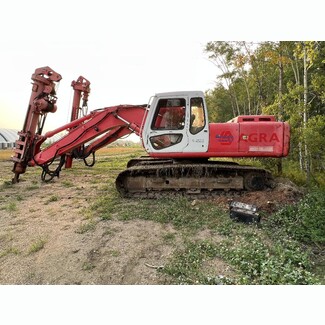

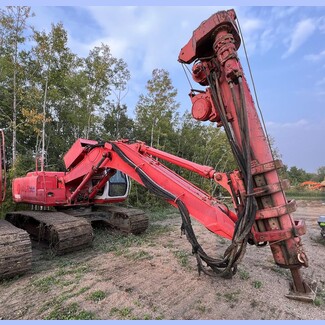

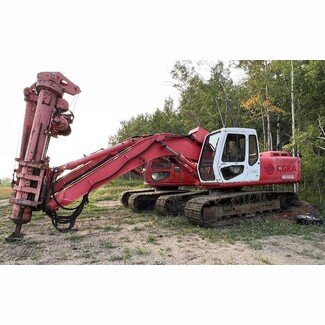

LoDril LM-50 Foundation Drill ID: 1403374

LoDril LM-50 Foundation Drill

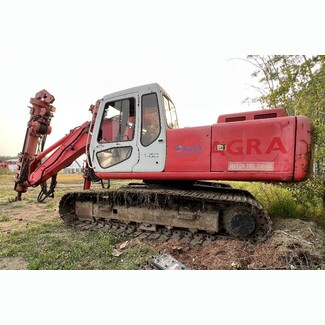

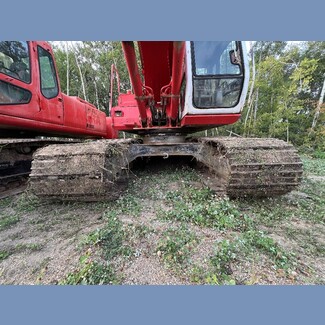

• Excavator:

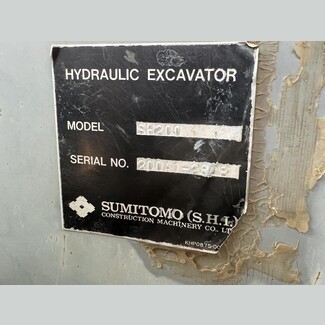

  • Make: Sumitomo
  • Model: SH-200

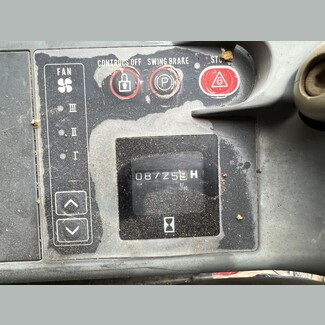

  • Hours: 8,725.9 Hours
  • Weight: 41,230 Lbs.

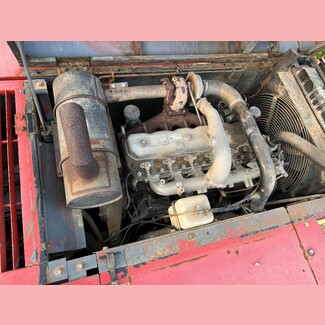

  • Engine: Isuzu 6BD1T
  • Horsepower: 99HP
  • Max System Pressure: 4,980 PSI

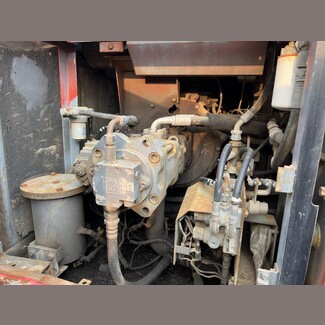

  • Hydraulic Pump Flow: (2x) 52 GPM
  • Pilot System: 5.3 GPM

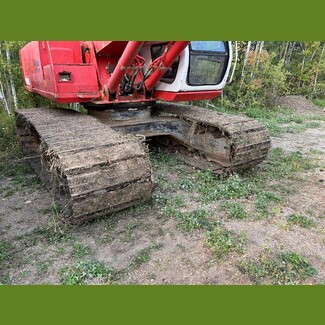

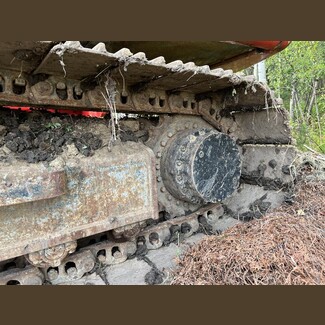

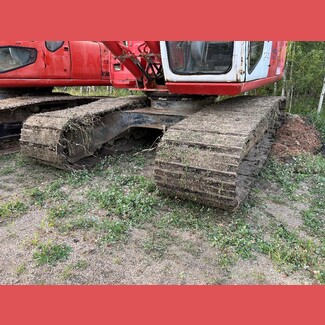

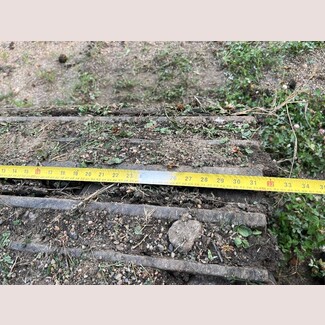

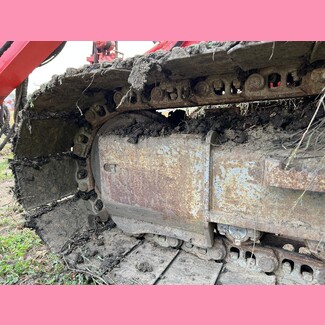

  • Track Pads: 31.5in Wide

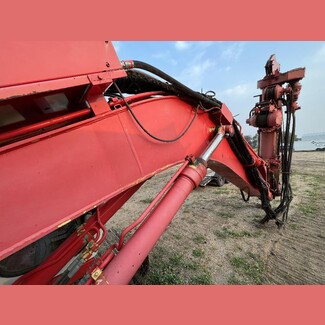

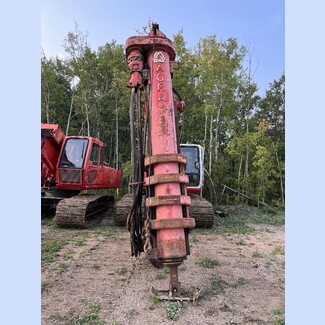

• Attachment: LM-50
  • Weight: 6,000 lbs. (w/o Bar Set)
  • Height: 17ft (w/o Tooling)
  • Crowd Stroke: 36in

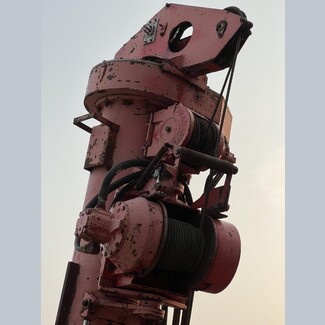

  • Kelly Winch: Pullmaster H-12
    • Hoist Speed: 130 FPM
    • Lower Speed: 530 FPM
  • Service Winch: Pullmaster PL-5
    • Equal Speed: 150 FPM

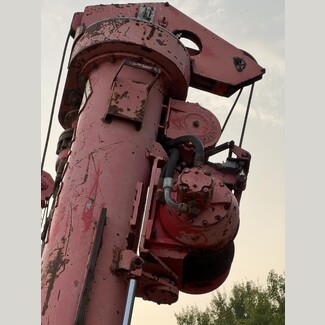

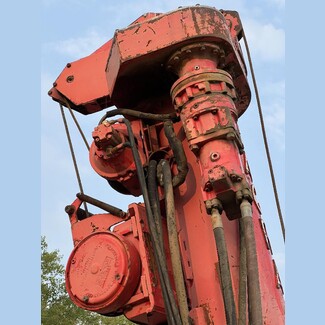

  • Rotary:

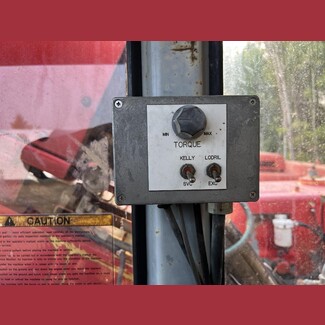

    • Torque: 16,000 ft-lbs.
    • Drilling Speed: 30-60 RPM
    • Spin-Off Speed: 100 RPM

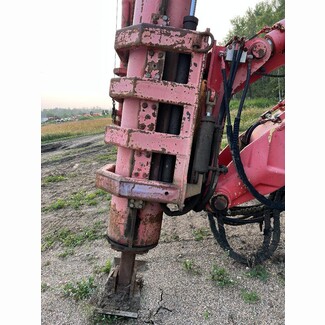

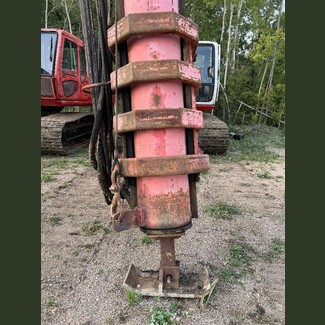

  • Kelly: 5 Element
    • Digging Depth: 50ft
    • Diameter: up to 48in


• Location: Western Canada
