• Make: Wyssmont Turbo Tray Dryer
• Model: N22
• Weight: 12,000 lbs.
• Structural steel support frame with 1.5in thick insulated panels, stainless steel sheet cladded
• Base area is a decagon shape measuring 9ft 9in across corners
• Roof:
  • Height: 12ft
  • With a 5in step-down level.
• Dryer Trays:
  • Qty: 22
  • Diameter: 78in
  • Stacked at 4-11/16in spaces
• Product Inlet (roof): 5in x 15in Sleeve @ 12ft 7in Elev.
• Product Discharge: 5.5in x 23in Opening @ 2ft 5-1/4in Elev.
• Drying Air Outlet (roof): 18in Diameter Opening @ 12ft Elev.
• Turbo Fan Drive:
  • Power Output: 1.5HP
  • With Roto-clone variable speed pulley

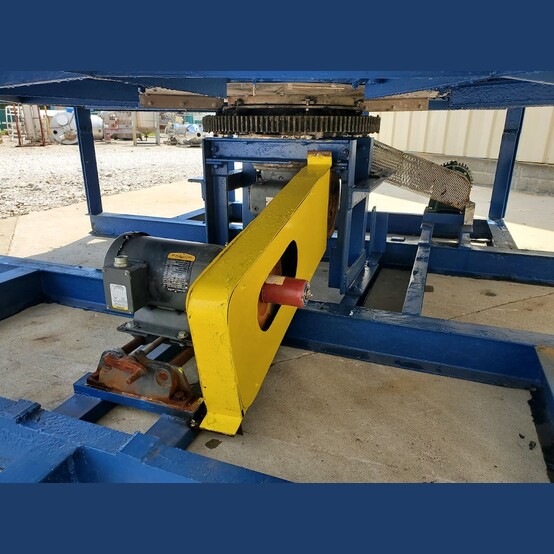

• Tray Drive: Gearmotor & Chain
  • Power Output: 1HP
• Heating Coils:
  • Qty: 3
  • Inline Aerofin steam coil heating units
• Inlet Air Filter: Filter Housing, holds 44in Wide x 35in Tall HEPA filters
• Does not include heater fan
• Overall Dimensions:
  • Diameter: 120in
  • Width: 129in
  • Height: 151in
  • Weight: 12,000 lbs.
• Cover Panels Included

• Location: Eastern USA
