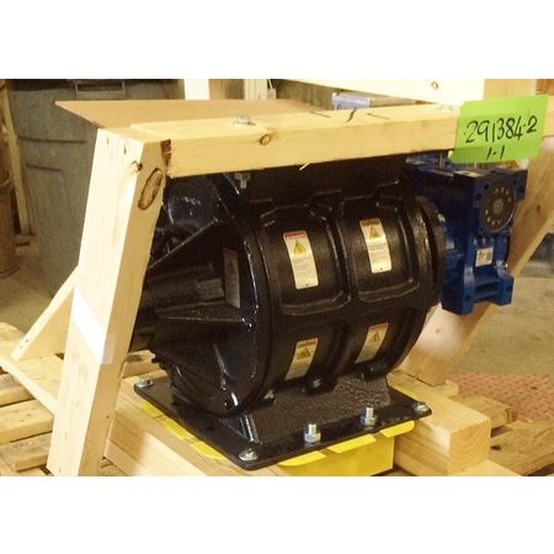

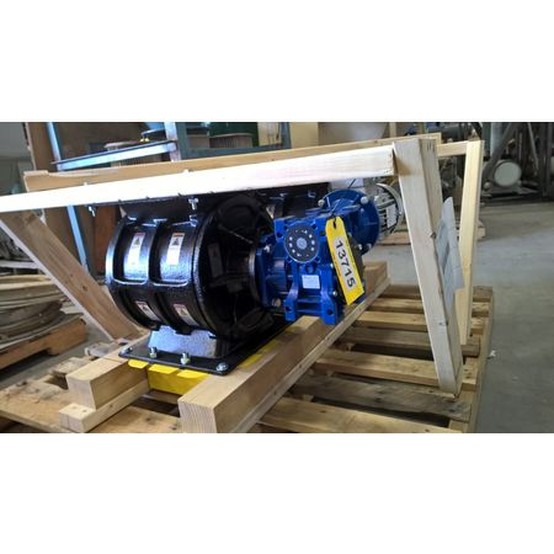

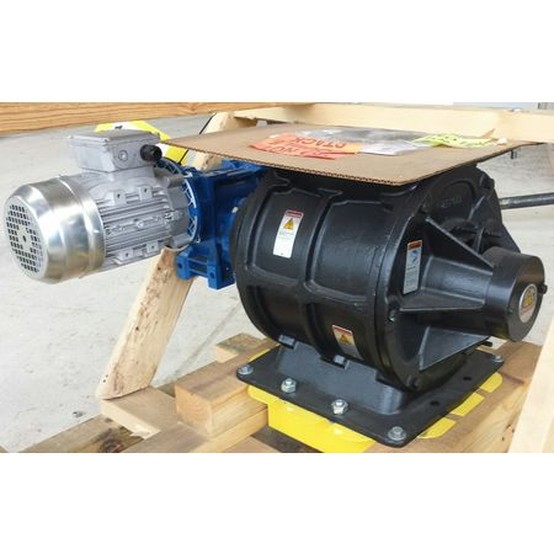

• Manufacturer: Wm W Meyer & Sons.
• All carbon steel construction.
• Open-end rotor w/ beveled tips.
• Feed rate: 0.48 cu ft per revolution.
•  15.0" valve height.
• Direct drive right-angle worm gear.

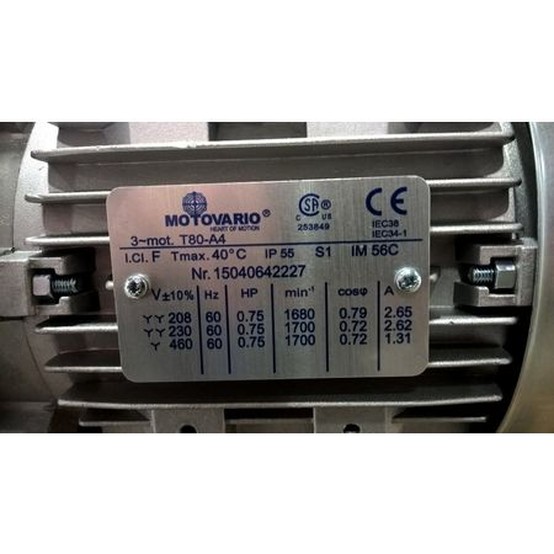

• Motovario 0.75 Motor:
  • 208-230/460 v.
  • 60 hz.
  • 3 ph.
• The DDV Dust Duty Valves are designed to provide a low cost airlock solution for simple dust collection under baghouses and cyclones.
• This design is uniquely suited for low pressure applications in light duty non-abrasive dust collection.
• One skid:
  • 335 lbs.
  • 32" W x 48" L x 28" H.
