  • Weight: 7000 kg.
  • KW: 79.
  • Milling width max.: 20 In. (500 mm.).
  • Milling depth: 6 In. (0-160 mm.).

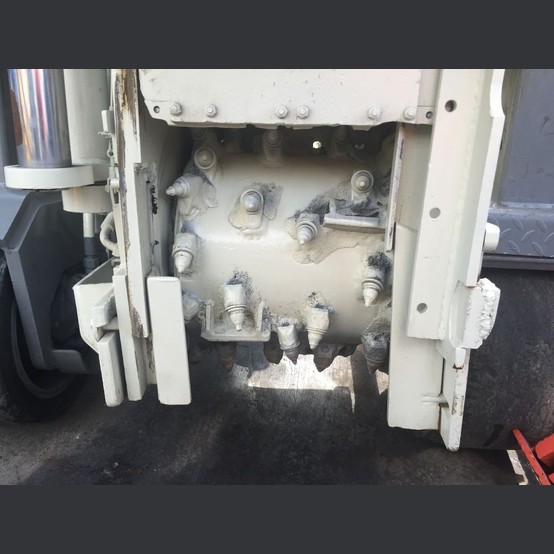

  • Milling drum:
    • Tool spacing: ½ In. (15 mm.).
    • Number of tools: 50.
    • Drum diameter with tools: 24 In. (610 mm.).
    • Diameter of the miling drum: 15 In. (385 mm.).
    • Drum inclination, max.: 10 Degrees.
  • Engine
    • Manufacturer: IVECO.
    • Type: 8045.SU 00
    • Cooling: Water.
    • Number of cylinders: 4.
    • Output: 79 kW / 105 HP / 107 PS.
    • Engine speed: 2,300 min-1.
    • Displacement: 238 in3 (3,900 cm3) .
    • Fuel consumption, 1/1 load: 5.2 gal/h (19.7 l/h).
    • Fuel consumption, 2/3 load: 3.4 gal/h (13.0 l/h).
  • Speed /gradeability:
    • Operating speed, 1st gear: 0 – 66 ft /min (0 – 20 m/min).
    • Travel speed: 0 – 4 MPH (0 – 6 km/h).
    • Theoretical gradeability in 1st gear: 60 %.
    • Theoretical gradeability in travel gear: 60 %.
    • Ground clearance: 8 In. (200 mm.).
  • Weights
    • With conveyor
      • Front axle load, full tanks: 5,512 lbs (2,500 daN kg).
      • Rear axle load, full tanks: 11,023 lbs (5,000 daN kg).
      • Own weight: 14,991 lbs (6,800 daN kg).
      • Operating weight, CE: 16,094 lbs (7,300 daN kg).
      • Operating weight, full tanks: 16,535 lbs (7,500 daN kg).
    • Without conveyor
      • Front axle load, full tanks: 6,945 lbs (3,150 daN kg).
      • Rear axle load, full tanks: 7,826 lbs (3,550 daN kg).
      • Own weight: 13,228 lbs (6,000 daN kg).
      • Operating weight, CE: 14,330 lbs (6,500 daN kg).
      • Operating weight, full tanks: 14,771 lbs (6,700 daN kg).
  • Tyres
    • Type: Solid rubber.
    • Tyre size, front (dia. x W): 22 In. x 10 In. (560 x 250 mm.).
    • Tyre size, rear (dia. x W): 22 In. x 10 In. (560 x 250 mm.).
  • Tank capacities:
    • Fuel tank: 43.6 gal (165 l).
    • Hydraulic fluid tank: 39.6 g (150 l).
    • Water tank: 60.8 gal (230 l).
  • Electrical system: 24 V.

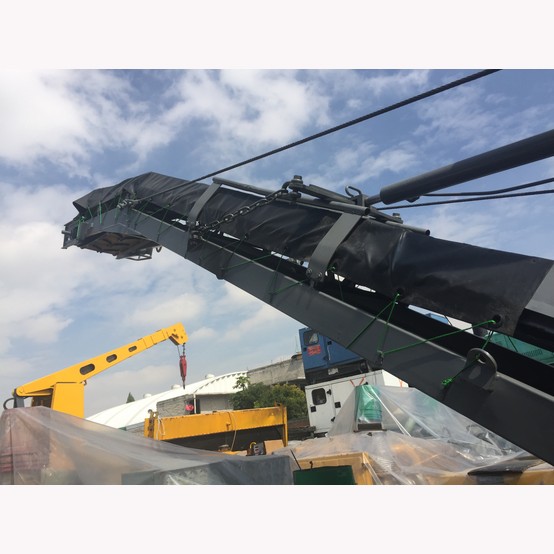

  • Conveyor system.
    • Belt width: 16 In. (400 mm.).
    • Theoretical conveyor capacity: 65 m3/h.
  • Shipping dimensions:
    • Dimensions of machine (L x W x H): 11’ 10” x 5’ 7” x 6’ 11” (3,600 x 1,700 x 2,100 mm.).
    • Dimensions of conveyor (L x W x H): 19’ 4” x 2’ 10” x 3’ (5,900 x 860 x 900 mm.).
