• Manufactured: 1995.

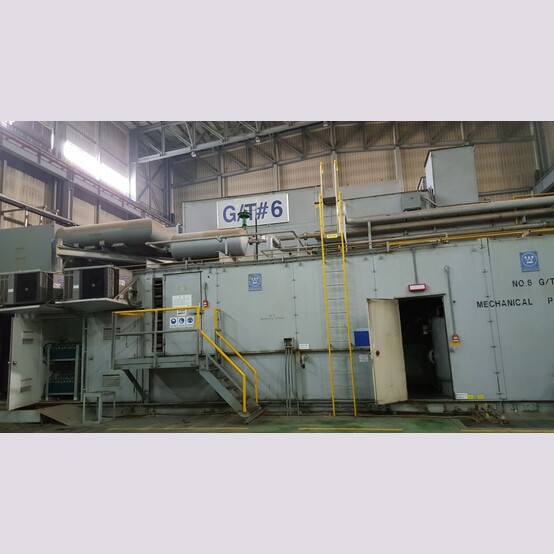

• Westinghouse Gas Turbines.
  • Model: W501D5.
  • Type: Axial Flow.
  • Power Output: 100,000 kW(100MW).
  • Stages: 4.
  • Inlet Temp.: 1093 ℃.
  • Exhaust Temp.: 530 ℃.
  • Exhaust Flow: 1313272 kg/h.
  • TAC Temp.: 15℃.
  • Speed Governor: DEHC.
    • Starter System.
  • Type: 1530 kW Electric Motor.
  • Quantity: 1 ea.
    • Combustor.
  • Can-Annular Air Compressors (link to Air compressors parent category).
    • Quantity : 14 ea.
    • Type : Axial Flow.
    • Air Mass Flow: 358 N㎥/min.
    • Inlet Temp.: 15℃.
    • Pressure Ratio: 14:01.
    • Outlet Pressure: 14.462 kg/㎠.
    • Stages: 19.
    • Outlet Temp.: 389 ℃.

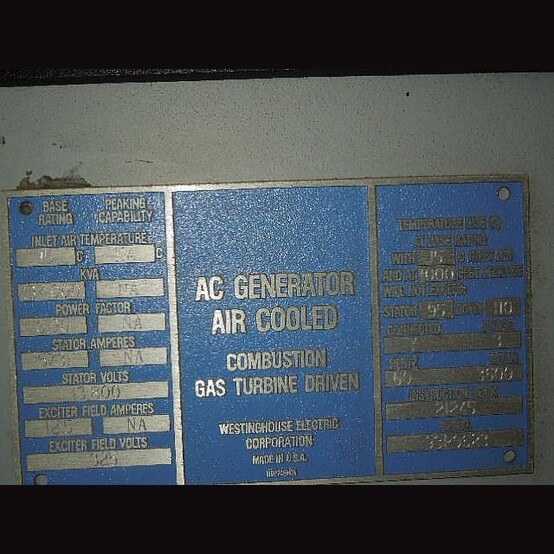

  • Westinghouse generators.
    • Type : OAC(Open-Air-Cooled).Sal
    • Rated Power: 129(143) MW(MVA).
    • Power Factor/ short-circuit ratio: 90%/0.695.
    • Frequency: 60Hz/2pole.
    • Speed : 3600 RPM.
    • Rated Voltage/Current : 13.8 kV/5731 A.
    • Insulation Class : F.
    • -Exciter.
    • Speed : 3600 RPM.
    • Exciter Type : PMG.
    • Rated Voltage/Current 325 V/1006 A.
    • Protection Devices : 87G, 59GN, 40,32,46, 51V, 60,25.
    • Neutral Grounding: NGR.
    • Bus Bar: IPB(3phases).
    • Rotation Direction: CW (Viewed Form Exciter end).
  • Hitachi Steam Turbine & Generator.
    • Year: 1971.
    • Overhaul year:1997.
    • Type: TCDF Reheat Condensing 23.
    • Power Output: 150,000 kW.
    • Rotor Speed: 3,600 RPM.
    • Number of stage: HP 6 / IP 7 / LP 5.
    • Main Steam Pressure: 100.1 kg.
    • Main Steam Inlet Temperature: 498.2.
    • U: 34.4 kg.
    • Reheat Steam Inlet Temperature: 353.9.
    • Reheat Steam Outlet Pressure: 31.7 kg.
    • Reheat Steam Outlet Temperature: 501.5.
    • Exhaust Pressure: 38 mmHg(a).
    • Speed Governor: Electro-Hydraulic Governor.
  • Quantity: 5.
  • Location: Asia.
