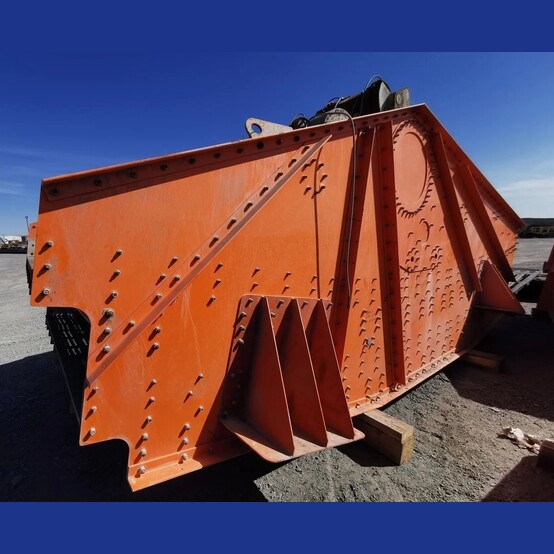

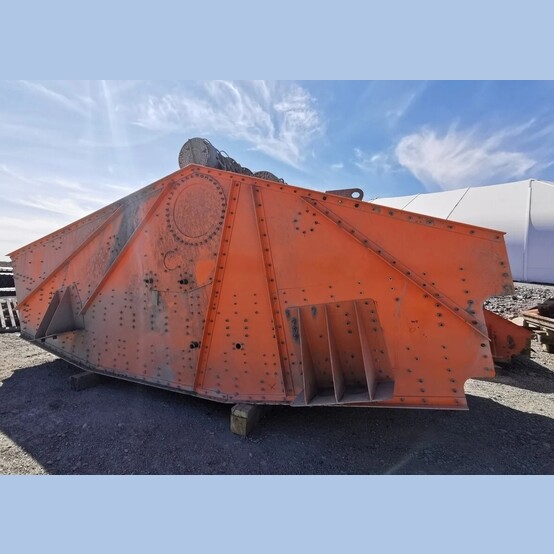

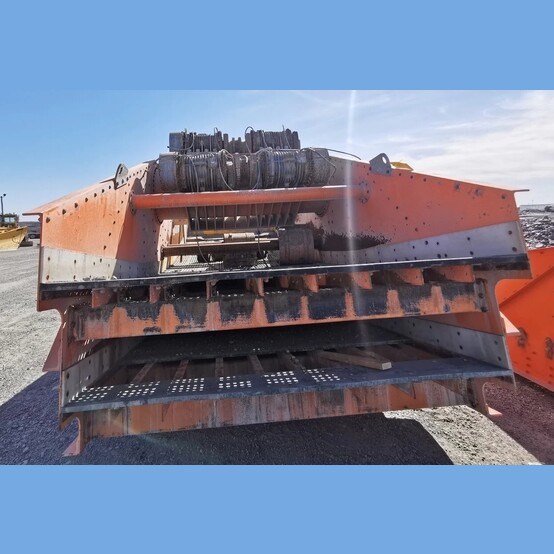

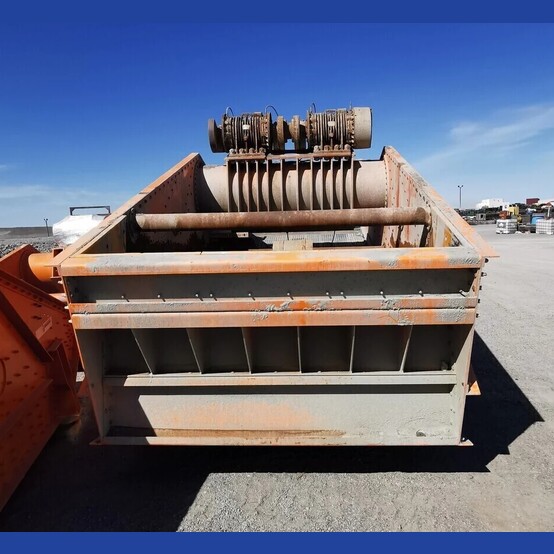

Vibramech M2-67-27 2-Deck Banana Screen

• Make: Vibramech
• Model: M2-67-27
• Condition: Used, Reported in Good Condition


• General Model Specifications:
  • Deck: 2-Deck
  • Inclination: Multi-Slope
  • Deck Width: 2,745mm (108in)
  • Deck Length: 6,710mm (264in)
  • Vibration Motors: 4 x 11 kW
    • RPM: 890
  • Top Deck: 32mm Vibroplast
  • Top Deck Spray Pressure: 150m³/hr, 150kPa
  • Top Deck Cut-Off Size: 30mm
  • Bottom Deck: 1.4 x 8mm SWF Hiflow
  • Bottom Deck Spray Pressure: 150m3/hr, 150kPa
  • Bottom Deck Cut-Off Size: 1.5mm
  • Water Sprays: 4 x Spray Pipes w/ MFN 13 Nozzles
  • Isolators: Rubber Buffers
  • Weight: 16,200 kg


  • Solids Oversize:
    • Max: 52 TPH
    • Average: 39 TPH
  • Solids Middles:
    • Max: 247 TPH
    • Average: 206 TPH
  • Solids Undersize:
    • Max: 81 TPH
    • Average: 79 TPH
  • Solids Design Cap:
    • Max: 380 TPH
    • Average: 380 TPH
  • Water Design Cap:
    • Max: 536 TPH
    • Average: 435 TPH


• Location: Western Canada
