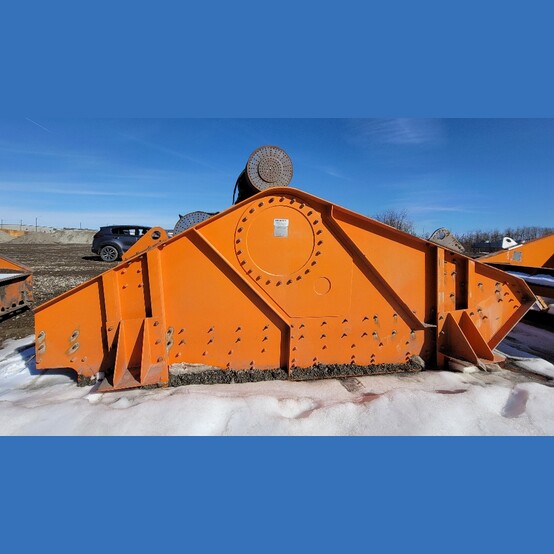

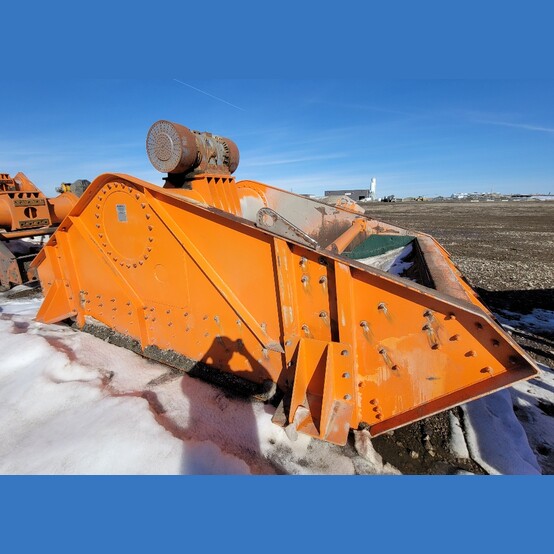

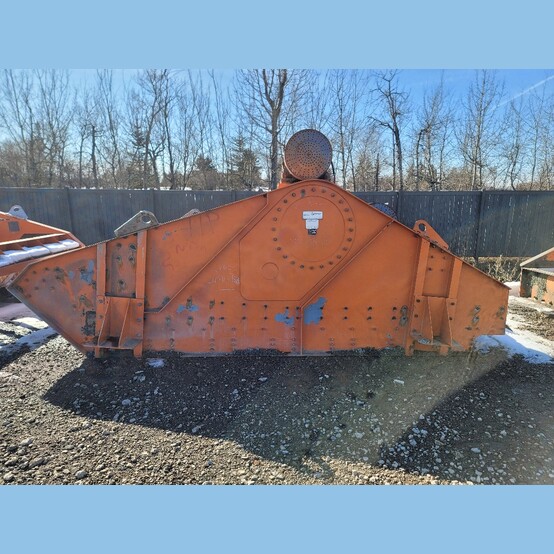

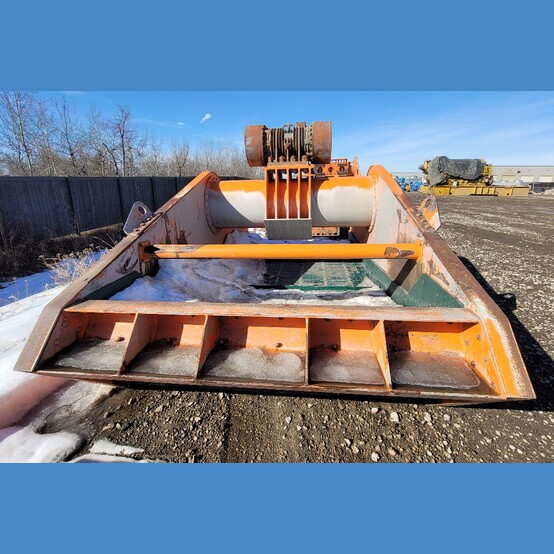

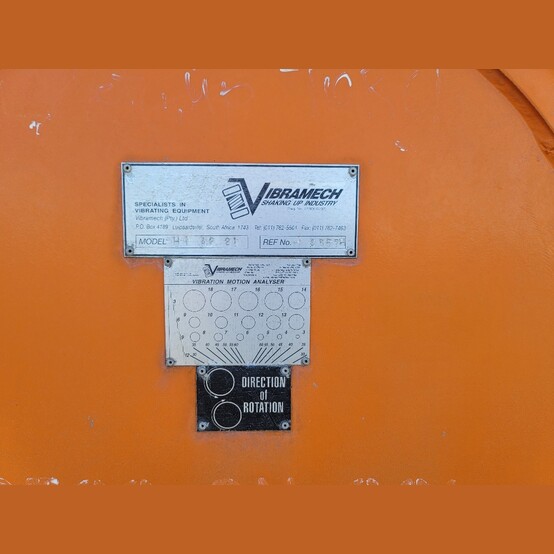

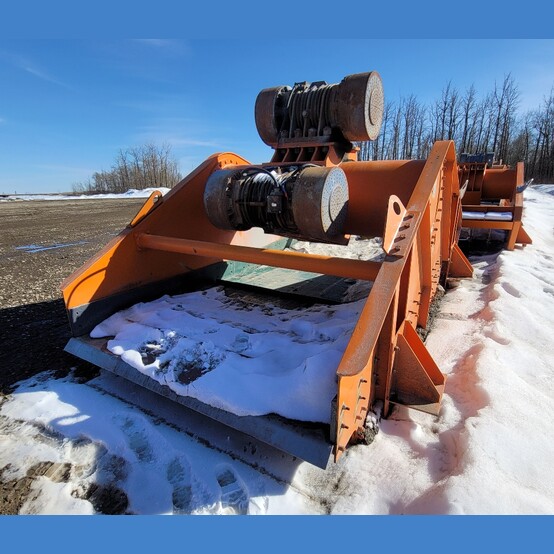

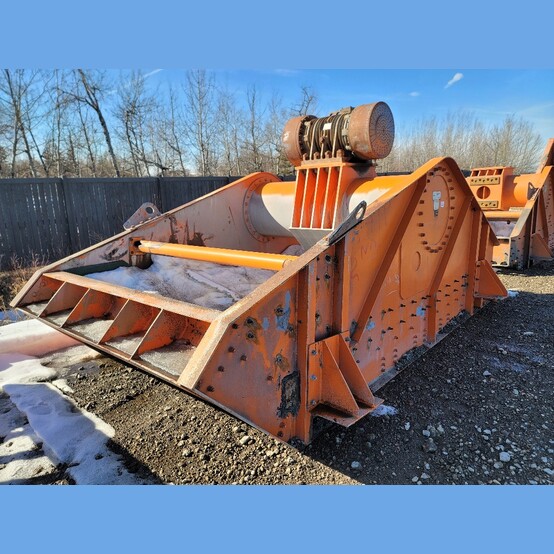

Vibramech H1-42-21 Screen

• Make: Vibramech
• Model: H1-42-21
• Type: Single Deck
• Style: Dewatering Screen
• Condition: Reported in Good Condition


• General Specifications:
  • Number of Decks: 1
  • Deck Size: 2135mm x 4270mm
  • Deck: 0.5 x 8.8 mm Hi-Flow Poly
  • Deck Spray Pressure: Not Required
  • Deck Cut-Off Size: 0.5mm
  • Inclination: 3-5 Degrees Upward
  • Water Sprays: N/A
  • Isolators: Rubber Buffers
  • Max./Avg. Solids Oversize: 70/53 TPH
  • Max./Avg. Solids Design Cap: 78/76 TPH
  • Max./Avg. Water Design Cap: 46/44 TPH

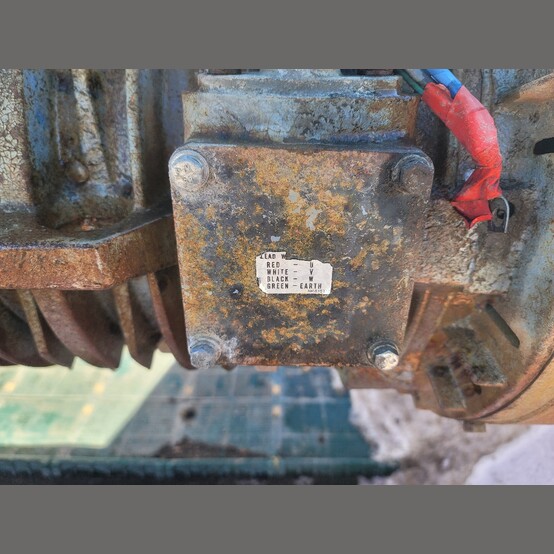

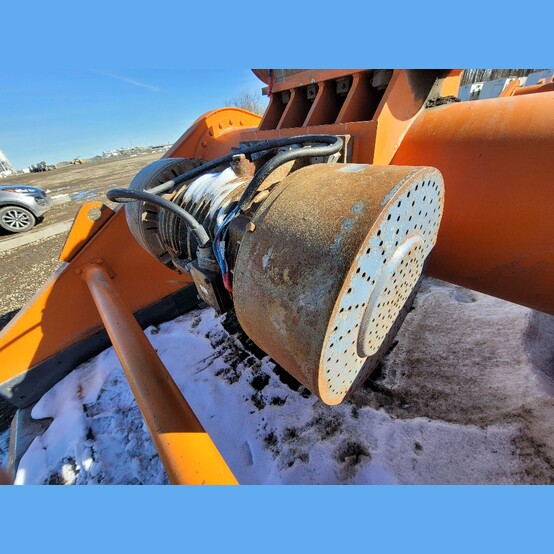

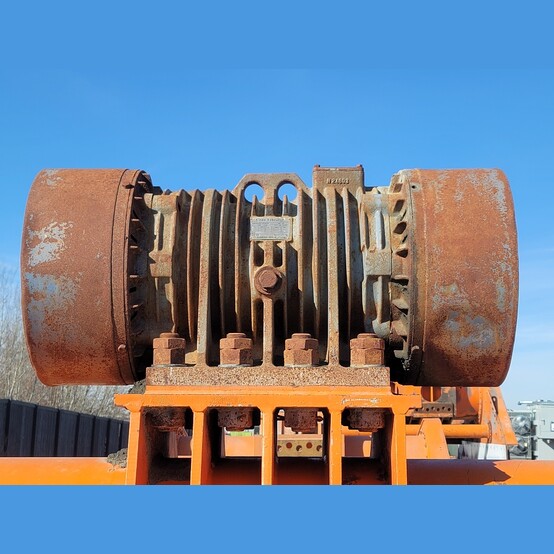

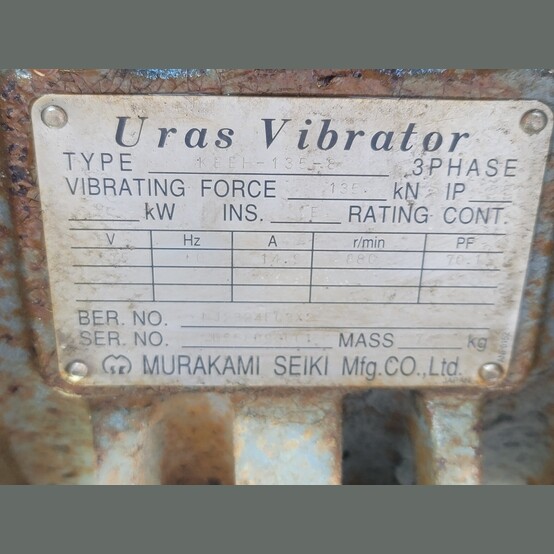

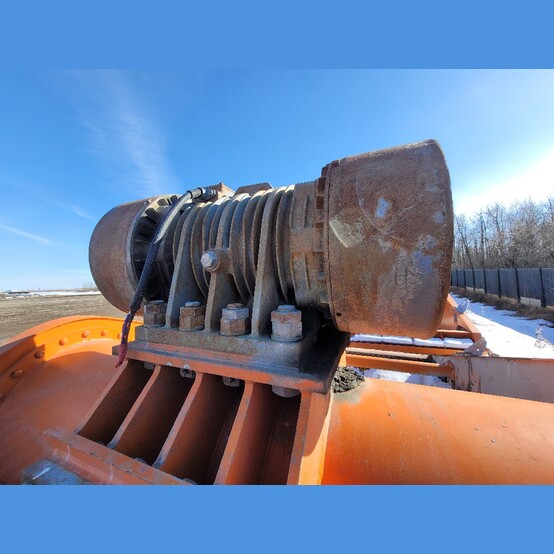

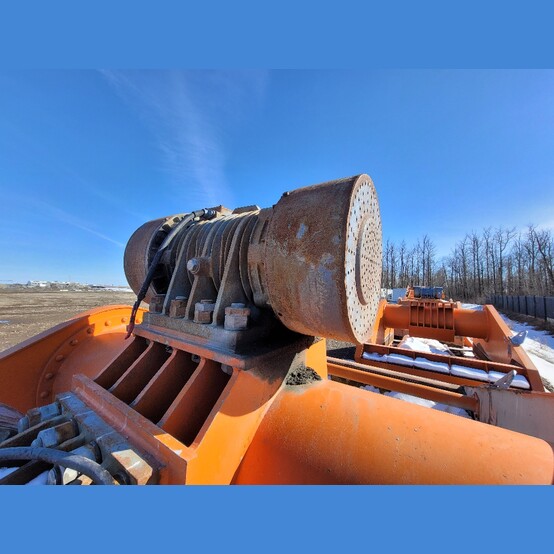

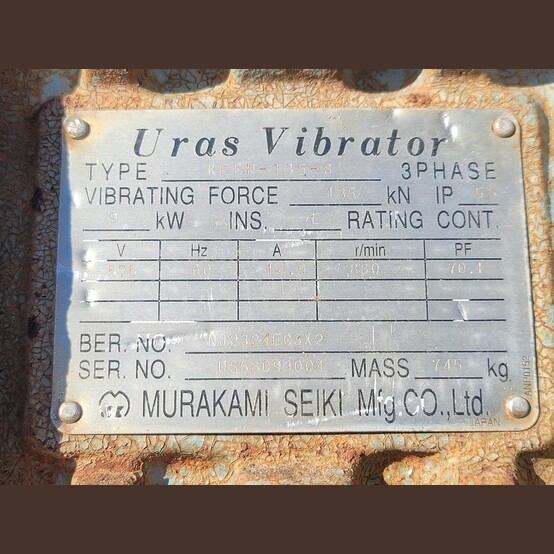

  • Vibration Motors: 2 x URAS KEEH-135-8
    • Power Output: 9kW
    • RPM: 890 RPM
    • Voltage: 575 Volts
    • Frequency: 60Hz
    • Phase: 3-Phase


• Overall Dimensions:
  • Length: 4,816mm
  • Width: 2,860mm
  • Height: 2,458mm
  • Weight: 5,650 Kgs (12456 Lbs.)


• Location: Western Canada
