Versa KmA3S Diamond Core Fly Drill Package with Skid and Enclosure ID: 1002092

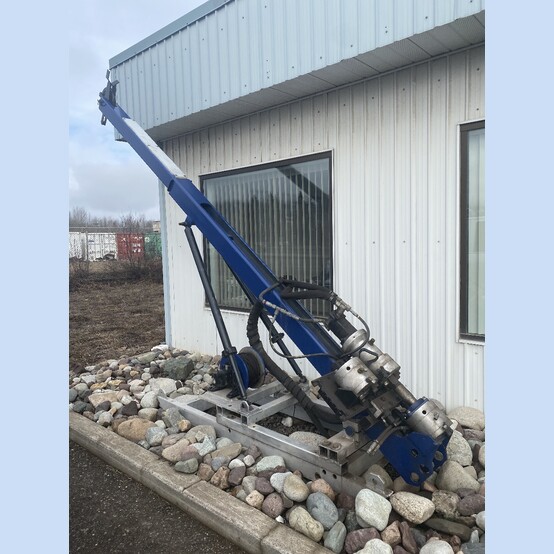

Versa KmA3S Diamond Core Fly Drill Package with Skid and Enclosure

  • Included:
    • 60 HP Diesel Drive Hydraulic Power Pack and Controls
    • Aluminum Drill Shack
    • Supply Pump
    • Pressure Pump
    • Wire Line
    • Feed Frame
    • Rod Holder
  • Weight (Dry)
    • 60 HP Diesel Power Unit/Hydraulic Pump/ Tank: 900 lbs. (408 kg)
    • Control Panel: 190 lbs. (86 kg)
    • Drill: 507 lbs. (230 kg)
    • Total Weight: 1,597 lbs. (725 kg)

  • Power Unit
    • Diesel Engine: 60 HP

  • Drilling Capacity
    • *ATW (1.75in) - 985ft. (300m)
    • *BTW (2.1875in) - 490ft. (150m)
    • NTW ( with 60 HP Only) - 160 ft. (50 m)
    • *Recommended Size for Maximum Performance
    • Drilling Capacity is Calculated in a 90° Degree Hole and Will Depend on In-Hole Tools, Ground Conditions, Drill Techniques and Equipment Used

  • Feed Frame
    • Head Stroke: 5ft 4in (1.65m)
    • Raising Speed: 92ft/min (28m/min)
    • Lowering Speed: 151ft/min (46m/min)
    • Pull Capacity: 10,000 lbs. (4,536 kg)
    • Push Capacity: 5,000 lbs. (2,268 kg)
    • Possible Angle: -20° to -90°

  • Rod Holder
    • Holding Capacity: 10,000 lbs. (4,536 kg)
    • Open/Close: Hydraulic
    • Rod Size:
      • ATW/AQTK Rod
      • AW Casing
      • BTW/BQTK Rod

  • Wireline Hoist
    • Cable Capacity (3/16 in. - 4.8 mm): 1,000 ft. (300 m)
    • Pull Capacity: 650 lbs. (295 kg)
    • Variable Speed as Needed

  • Mounted in Skidded Enclosure

    View Spec Sheet Below

  • Location: Western Canada
