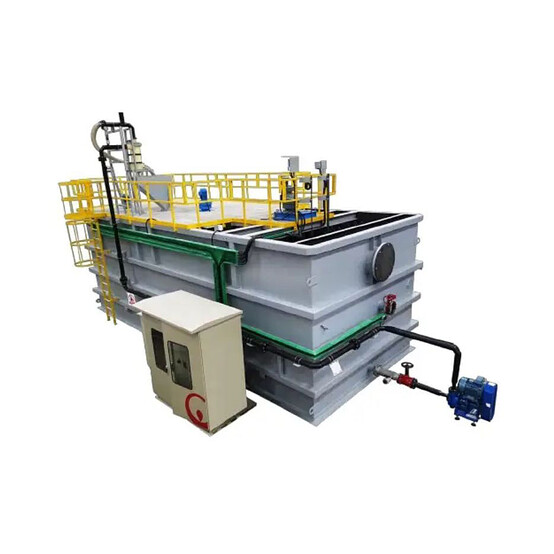

Veolia Actiflo High Rate Ballasted Clarifier Package

• Make: Veoila Water Technologies
• Model: Actiflo Clarifier ACP2-55 (Mark III)
• Type: High-Rate Ballasted Flocculation System
• Year: 2023
• Condition: Unused, New Surplus - Sealed in Original Packaging
• Includes:
  • Actiflo Clarifier ACP2-55
  • HydraPol Polymer Preparation System

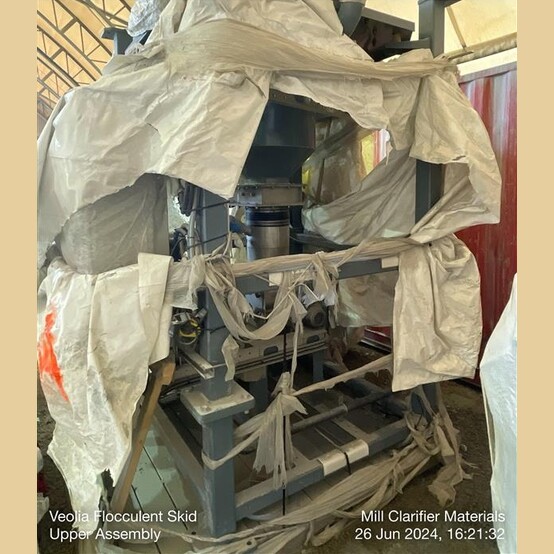

  • Polymer Dosing Skid
  • Coagulant Dosing Skid
  • Caustic Soda Dosing Skid

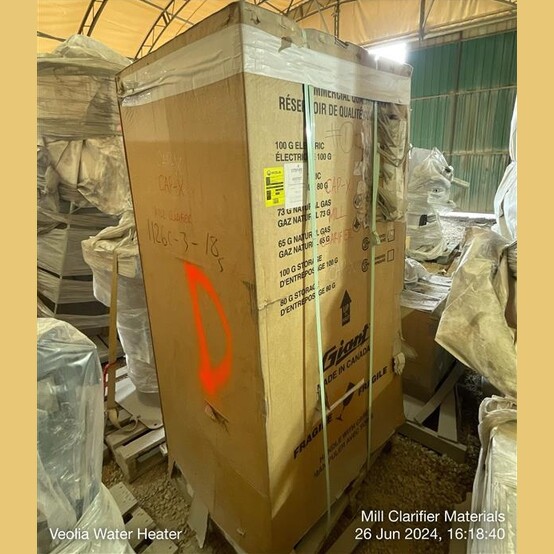

  • Water Heater


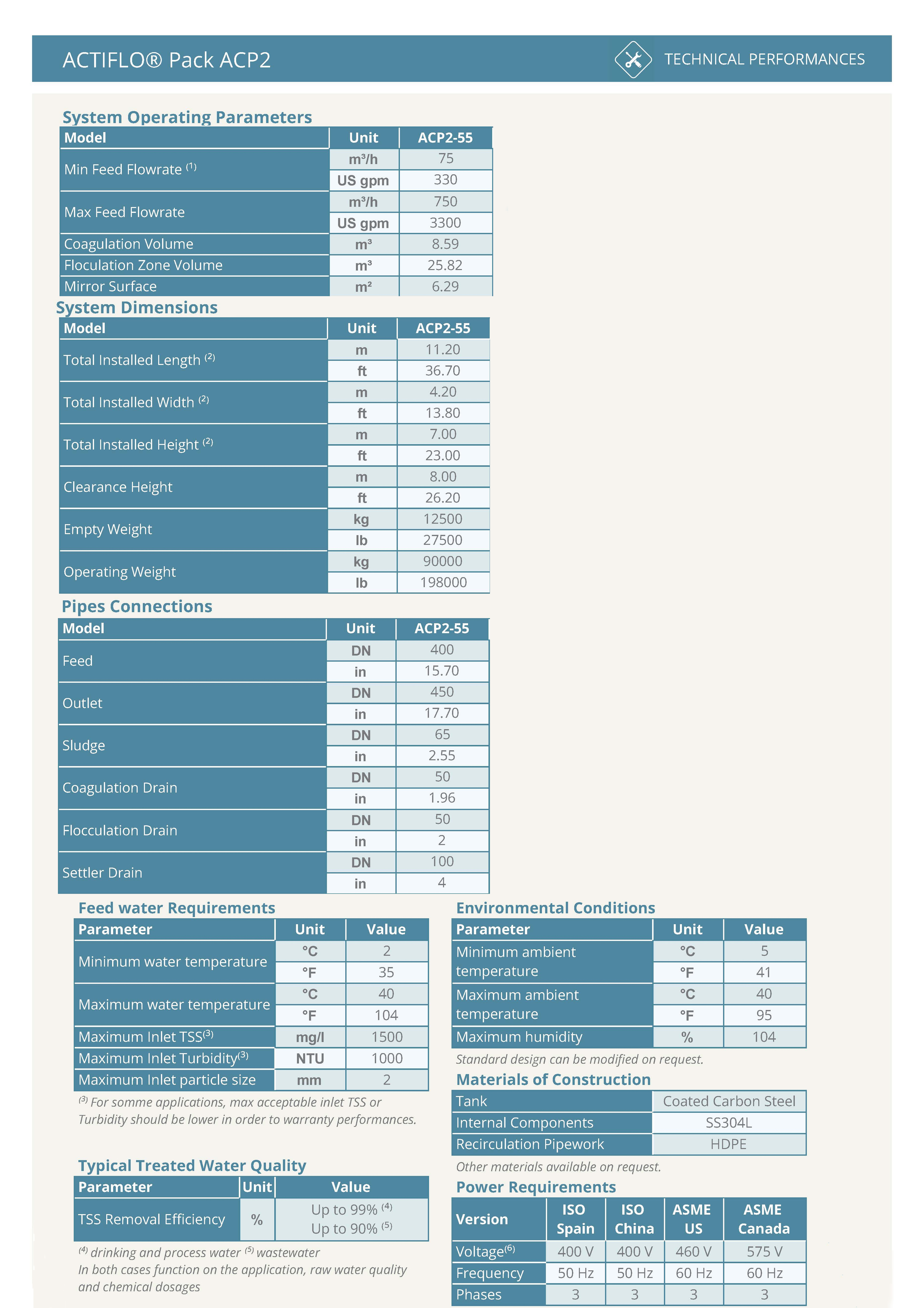

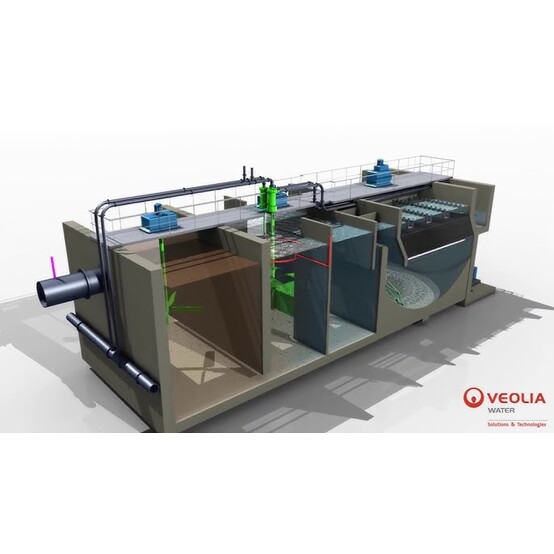

• Actiflo Clarifier General Information:

  • Technology: ACTIFLO
  • Type: TURBO
  • Model: ACP2-55
  • Nominal Characteristics:
    • Nominal Flowrate per Unit: 6,000 m³/d (@ 40 m/h)
    • Nominal Settling Velocity per Unit: 40m/h
    • Max. Capacity per Unit (Hydraulic): 12,000 m³/d  (@ 80 m/h)
    • Retention Time at Nominal Flowrate:
      • Extended Coagulation: 2.06 min
      • Coagulation: 2.06 min
      • Flocculation: 6.20 min


• Technical Specifications:
  • Extended Coagulation:
    • Basin Dimensions:
      • Length: 1899mm
      • Width: 1521mm
      • Water Depth: 2973mm
    • Mixer:
      • Manufacturer: VWTC
      • Model: EVGX3-2.0
      • Impeller: 1
      • Weight: 143kg
      • Rotation/Direction of Thrust: Counterclockwise/Up
      • Material and Grade: AISI 304/304L
    • Motor:
      • Power: 2HP
      • Type: TEFC Premium Efficiency
      • Manufacturer: Nord
  • Coagulation:
    • Basin Dimensions:
      • Length: 1899mm
      • Width: 1521mm
      • Water Depth: 2973mm
    • Mixer:
      • Manufacturer: VWTC
      • Model: EVGX3-2.0
      • Impeller: 1
      • Weight: 179kg
      • Rotation/Direction of Thrust: Clockwise/Down
      • Material and Grade: AISI 304/304L
    • Motor:
      • Power: 2HP
      • Type: TEFC Premium Efficiency
      • Manufacturer: Nord
  • Flocculation:
    • Basin Dimensions:
      • Length: 2850mm
      • Width: 3048mm
      • Water Depth: 2973mm
    • Mixer:
      • Manufacturer: VWTC
      • Model: EVGX4-5.0
      • Impeller: 1
      • Weight: 227kg
      • Rotation/Direction of Thrust: Clockwise/Down
      • Material and Grade: AISI 304/304L
    • Motor:
      • Power: 5HP
      • Type: TEFC Premium Efficiency
      • Manufacturer: Nord
  • Settling:
    • Basin Dimensions:
      • Length: 3047mm
      • Width: 3048mm
      • Total Depth: 2973mm
    • Scraper:
      • Manufacturer - Drive: SEW Eurodrive
      • Model - Drive: RF87 R57 AR71/W DRN80MK4/C/DH/RI
      • Manufacturer - Reducer Drive - 3rd Stage: VWTC
      • Model - Reducer Drive - 3rd Stage: Gear Ratio 4.59:1
      • Running Torque: 2022 Nm
      • Rotation: 0.63 RPM
      • Drive Tube Diameter: 150mm (6in)
      • Material: AISI 304/304L
      • Torque Monitor: SEW Eurodrive FR-1
    • Motor:
      • Power: 0.75HP
      • Type: TEFC Fractional
      • Manufacturer: SEW Eurodrive
    • Settling Tubes:
      • Brand/Model: SECCO
      • Material: PP K8003
      • Thickness: 60 mils
      • Height: 610mm (24in)
      • Angle: 60°
      • Hydraulic Diameter: 85mm (3.35 po)
    • Troughs:
      • Material: AISI 304/304L
      • Quantity: 2
  • Microsand Recirculation:

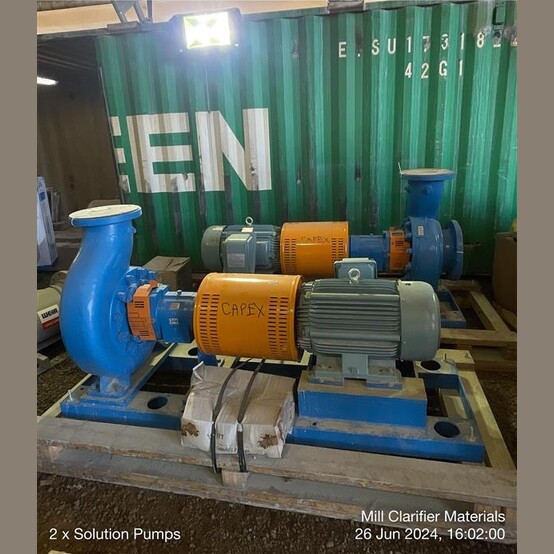

    • Pump:
      • Manufacturer: McLanahan
      • Model: M3H-CRD 2/2
      • Seal Type: Dry Gland
      • Flow: 35.0m³/h
      • Head: 20.20m
      • Quantity per Unit: 2
      • In-Duty / Duty Assist / Standby: 1 / 0 / 1
      • Max. Number of Pumps In-Service Simultaneously: 1
    • Motor:
      • Power: 10HP
      • Type: TEFC Premium Efficiency
      • Manufacturer: WEG

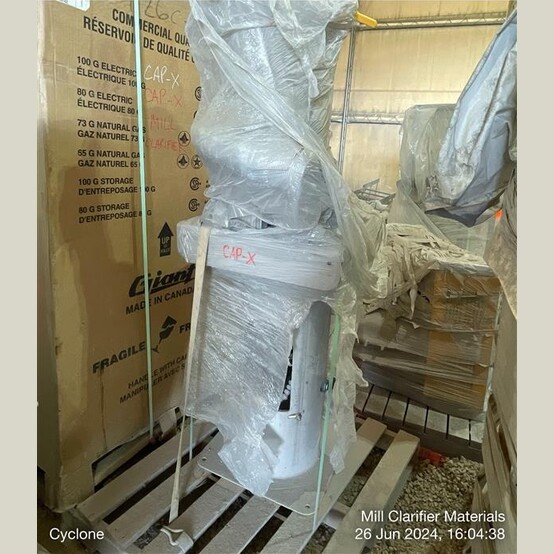

    • Hydrocyclones:
      • Manufacturer: Krebs
      • Model: U6-10-1758
      • Quantity per unit: 2
      • Hydrocyclones Support Material: AISI 304/304L
    • Microsand Recirculation Piping:
      • Diameter: 100mm (4in)
      • Number of Lines per Unit: 2
      • Material: Galvanized Steel and Abrasion Resistant Hose Stainless Steel 304 under Settling Tank
    • Effective Size of Microsand: 120-135 microns
    • First Fill Required Mass: 430kg
  • Connections:
    • Flanges: Flange 1/2" Thick, OD & Bolt Pattern as per ASME B16.5 #150
    • Inlet Diameter: 350mm (14in)
    • Hydrocyclone Sludge Outlet Diameter: 100mm (4in)
    • Polymer Dosing Inlet Diameter: 20mm (0.75in)
    • Lamella Air Cleaning Inlet Diameter: 80mm (3in)
    • Extended Coagulation Drain Diameter: 50mm (2in)
    • Flocculation Drain Diameter: 50mm (2in)
    • Partial Drain Diameter: 100mm (4in)
    • Outlet Diameter: 400mm (16in)
  • Drainage:
    • Sludge Discharge Per Cyclone: 35m³/h
    • Max. Sludge Discharge per Cyclone: 28.0m³/h
    • Instant Max. Flow - Partial Drain: 43L/s


• Power Feed Requirements:
  • Power: 575 Volt, 3-Phase, 60Hz
  • Controls: 120 Volt, Single-Phase, 60Hz
  • Junction Box Type: NEMA 4X


• Dimensions & Weights:
  • Length: 9,478mm (373.2in)
  • Width: 3,638mm (143.3in)
  • Height: 4,811mm (189.4in)
  • Shipping Weight (Dry): 13,500 Kg (29,835 Lbs.)
  • Installed Weight (Full of Water): 85,750 Kg (189,508 Lbs.)


• Location: Northwest Canada
