(Used) Hy-G P12 Centrifugal Concentrator ID: 1376174

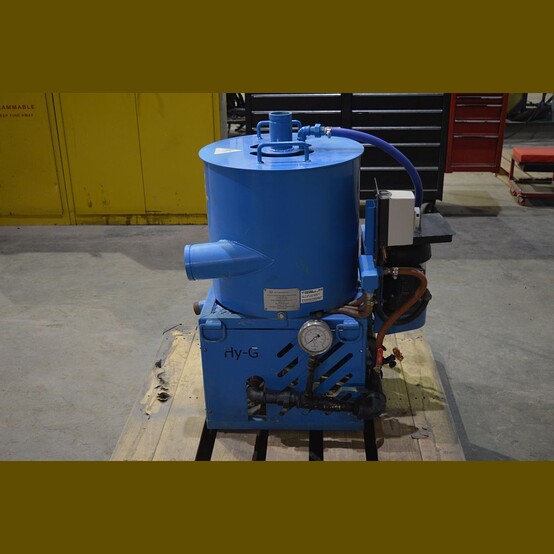

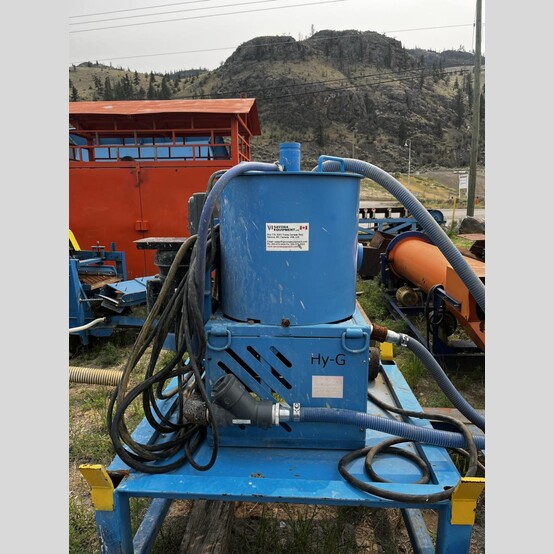

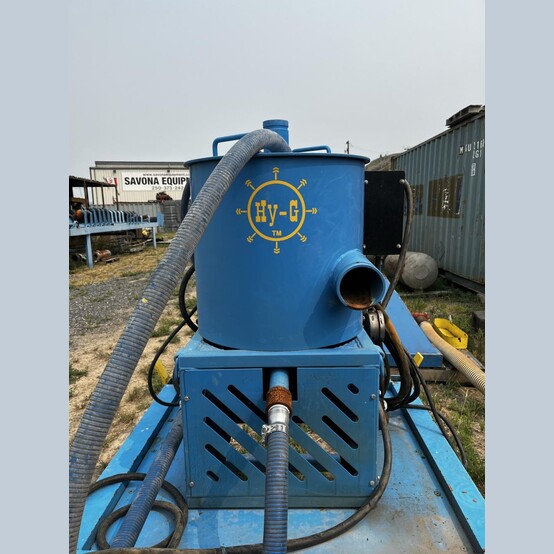

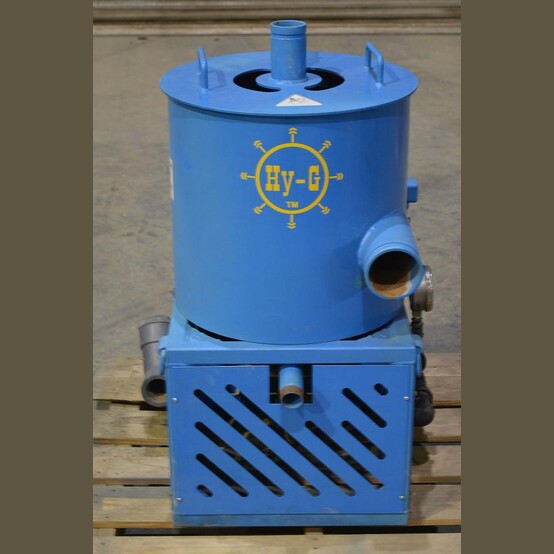

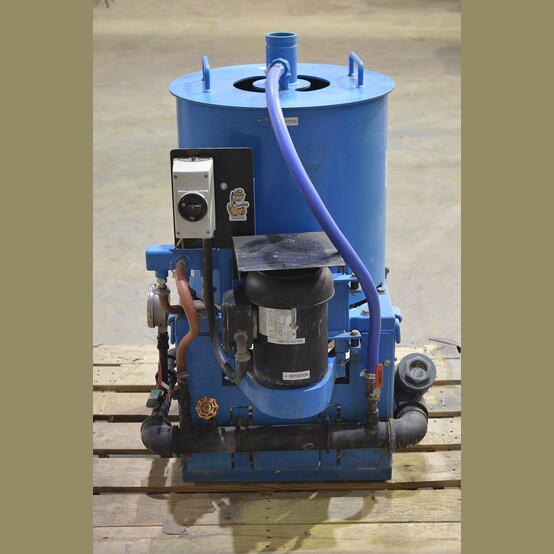

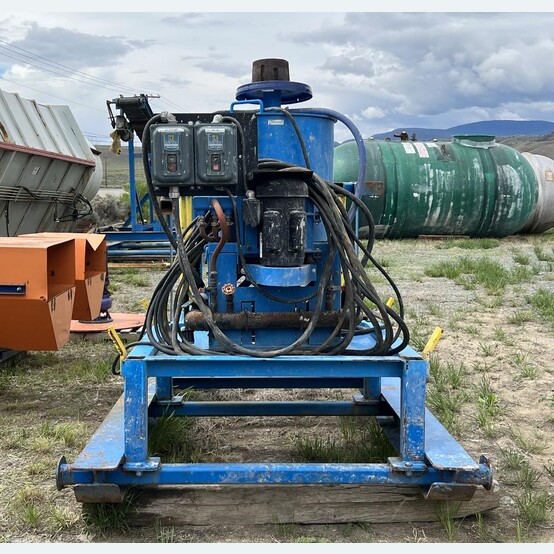

(Used) Hy-G P12 Centrifugal Concentrator

Savona Equipment Ltd. is an authorized global distributor for Hy-G Concentrators Inc. and provides the same great OEM pricing and service.

Hy-G P12 Centrifugal Gravity Concentrator provides exceptional recovery of super fine alluvial placer gold and other minerals and metals and can continuously concentrate up to 24 hours before clean-out is required. Expected recovery is up to 98% of free gold as fine as 325 Mesh or 44 Micron. This model is ideal for testing, small production plants, and clean-up to yield a super concentrate. Built heavy duty to withstand the most severe mining conditions in the world.

  • Condition: Used, Excellent Condition
  • Features:
    • Engineered Specifically for Alluvial Placer Applications
    • Can Handle up to 5mm Feed Size Efficiently which is More than Double the Typical Feed Size for a Centrifugal Concentrator

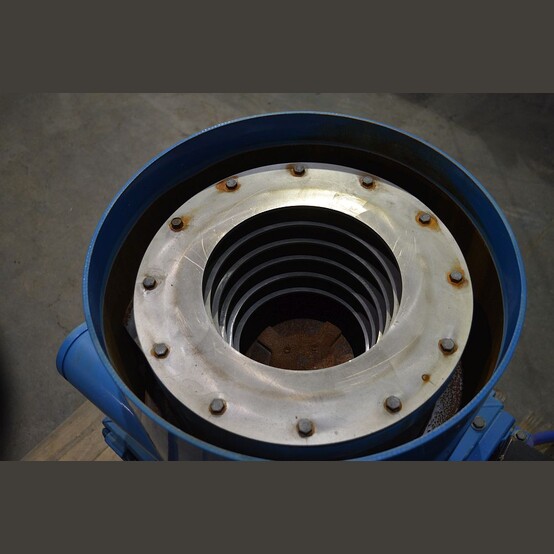

    • Precise and Durable Stainless Steel Bowl
    • Easy to Use Controls that can Withstand Harsh Conditions in the Typical Placer Mining Environment

  • Specifications:
    • Capacity Range: 1 - 10 TPH
    • Efficient Max Capacity: Approx. 5 TPH
    • Feed Size: Recommended is -5 mm

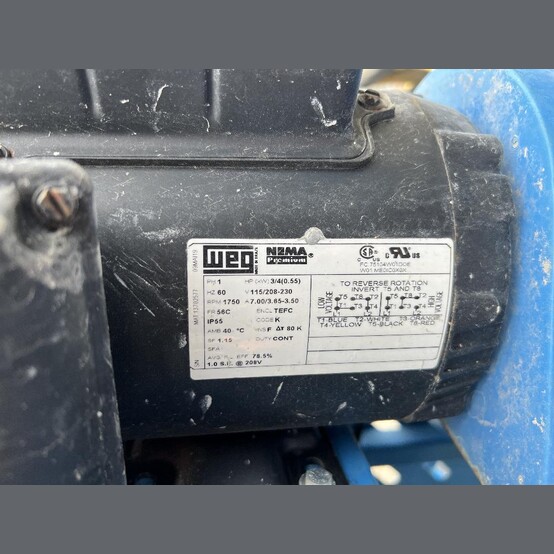

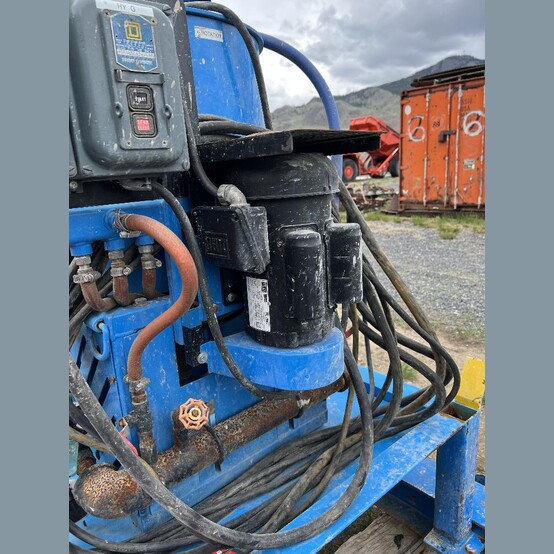

    • Motor: WEG 0.75 HP
    • Max. Water Consumption: 28.5 GPM @ 35 PSI
    • G-Force: 70

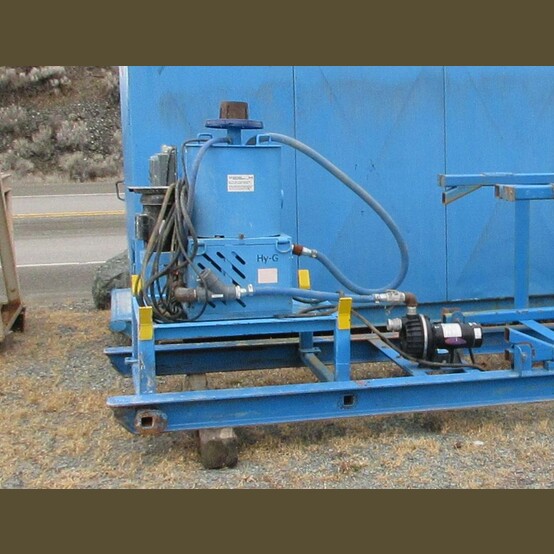

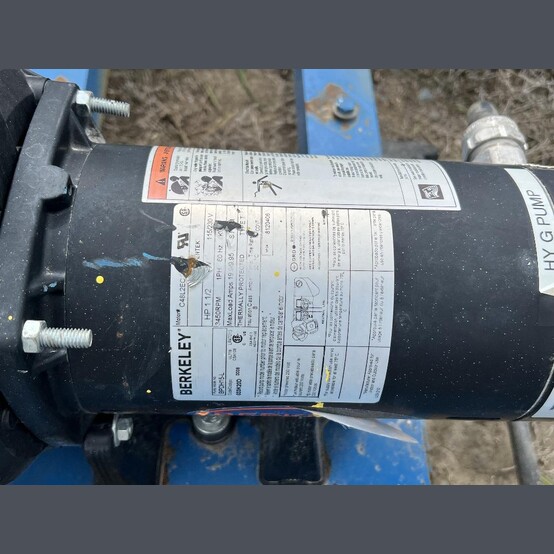

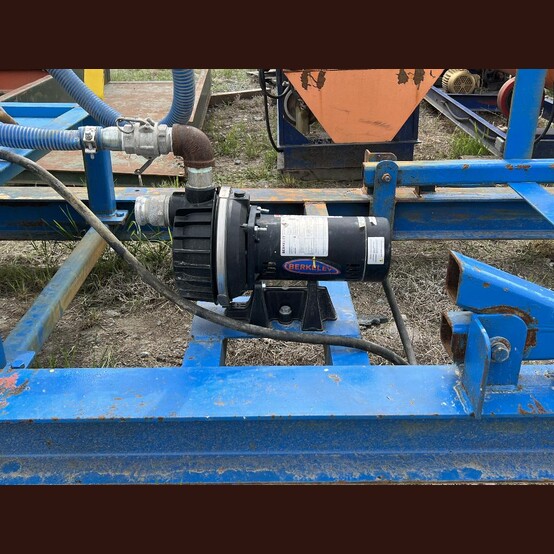

  • With Berkeley Pump
    • Model: BPDH15-L
    • Power Output: 1.5HP
    • Voltage: 115/230 Volts

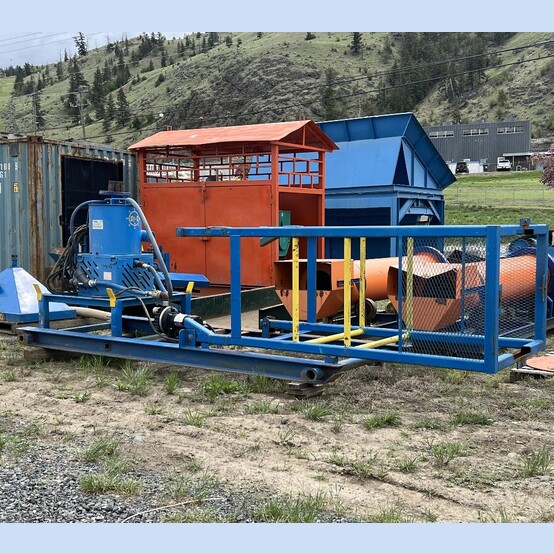

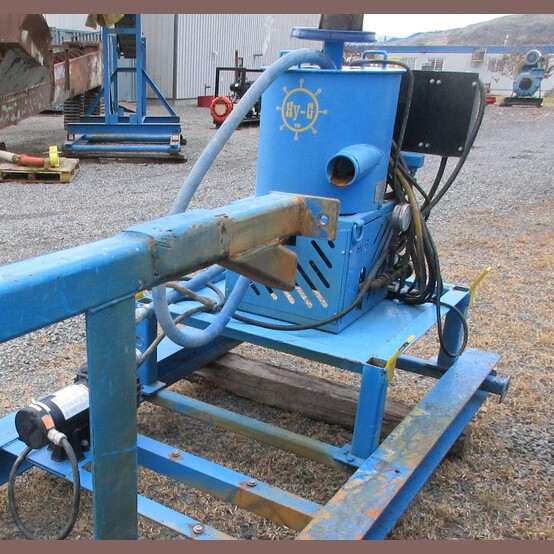

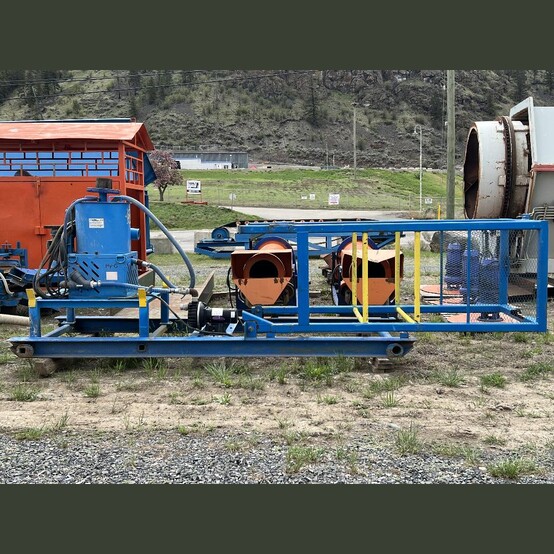

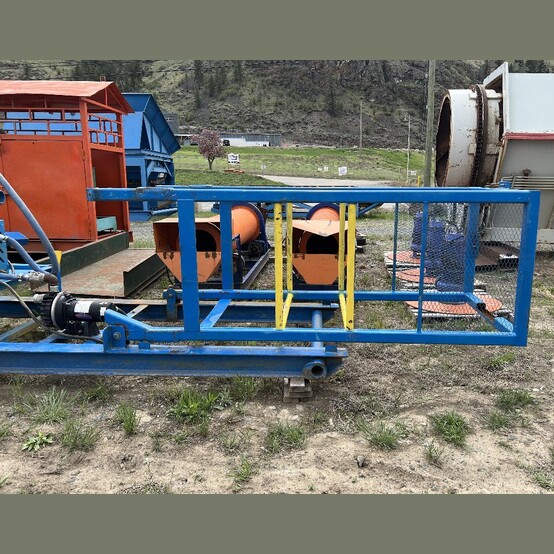

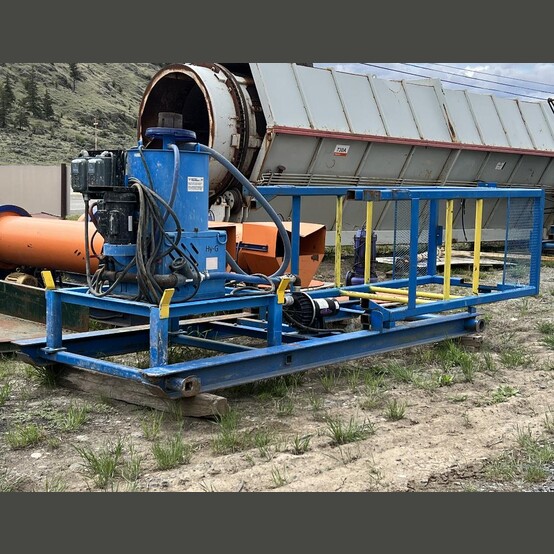

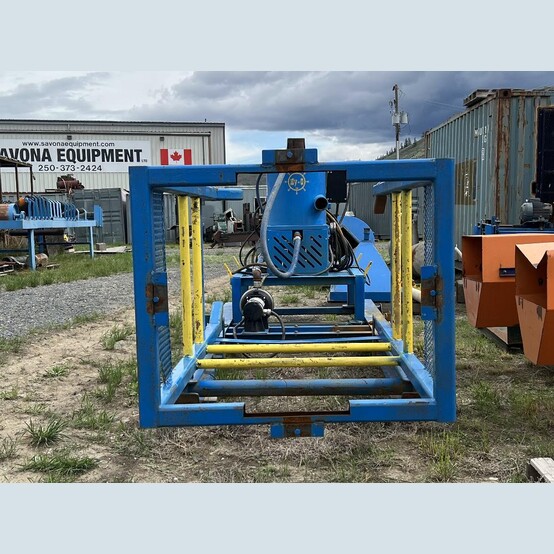

  • Skid Mounted with Folding Tower
    • Height: 107in Tall
    • Working Area: 47in x 39in

  • Conical Hopper
    • Capacity: 13.603ft³
    • Size: 36in Diameter x 39in Tall
    • Top Openings:
      • (1) 20.25in x 15.25in
      • (1) 6in x 6in
    • Inlet: 2in Side Inlet
      • 4ft Long 2in Hose with Quick Coupler Attached
    • Discharge: 2in Bottom Discharge

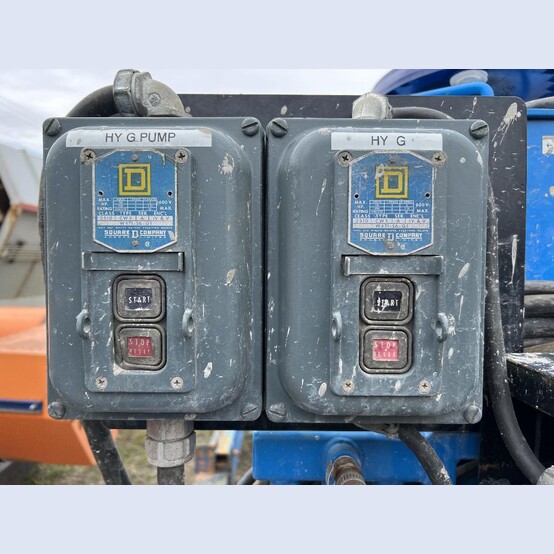

  • With Motor Starters for Pump and Drive Motor

  • Overall Dimensions:
    • Length: 190in
    • Width: 60in
    • Height: 60in (Tower Folded)

  • Made in Canada
  • Worldwide Shipping Available
  • Location: British Columbia, Canada
