Toyota Aerial Lift Utility Truck ID: 141030

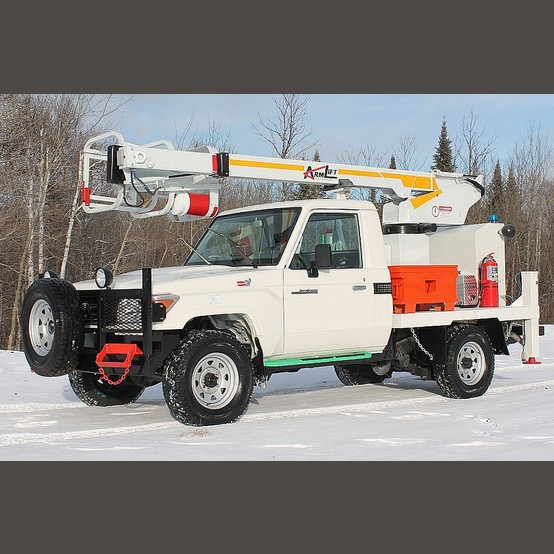

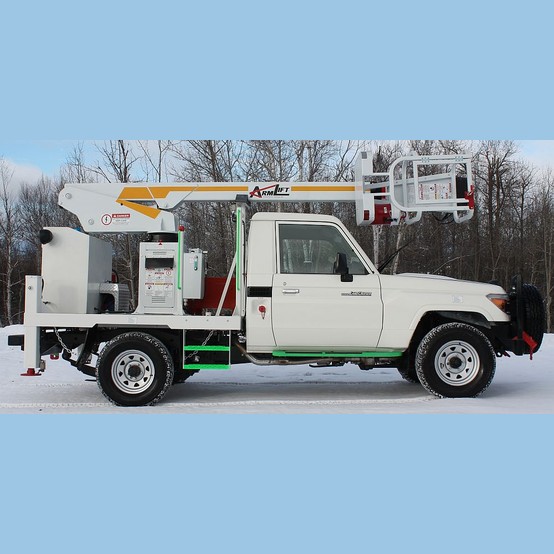

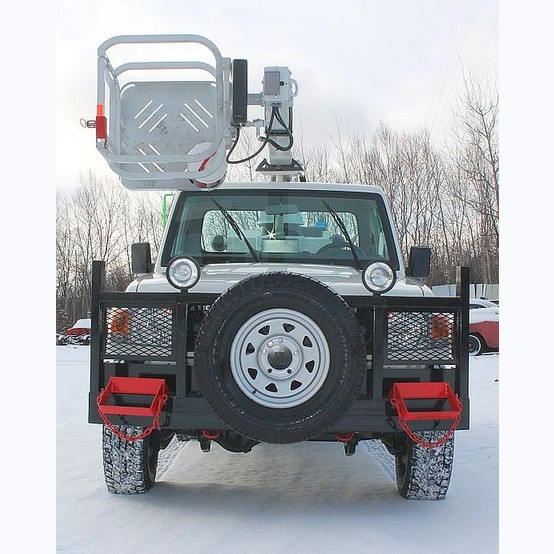

  • Toyota Aerial Lift Utility Truck.
    • Model: SPV104.
      • Gross vehicle weight: 3,200 kg.
      • Curb weight: 2,230 kg.
      • Dimensions (L x W x H):
        • 5.07 m x 1.77 m x 2.12 m.
    • Equipped with:
      • 12 valve, OHC 1HZ diesel engine.
        • Inline 4,164 cc.
        • 96 kW @ 3,800 rpm.
        • 285 Nm @ 2,200 rpm.
      • 5 speed manual transmission.
      • 4 wheel drive.
      • Front disc brakes.
      • Rear trailing drum brakes.
      • Fuel tank capacity: 90 L (+90 extra)
    • Telescopic specifications:
      • Side hung bucket.
        • Model: A-Tel 29 heay duty DC.
          • Ground to bucket: 24 ft.
          • Working height: 19 ft.
            • Will increase with base extension.
          • Side reach: 17 ft.
          • Stowed height: 6 ft 2 in.
          • Stowed length: 13 ft. 1 in.
        • Bucket capacity: 300 lbs.
    • Available Options (at an additional cost to the posted price):
      • Automatic transmission: $8,600.
      • SIBS full 4 wheel kit ( 4 wheel enclosed wet disc SAHR braking system): $19,000.
      • Suspension upgrade (GVWR to 3,780 kg): $5,000.
      • Undercoating: $400.
      • Air bag suspension kit: $4,800.
      • Cold weather package (power pack, fuel filter & oil pan heater/arctic gear oil & synthetic oil): $1500.00



Please contact us for more information.
