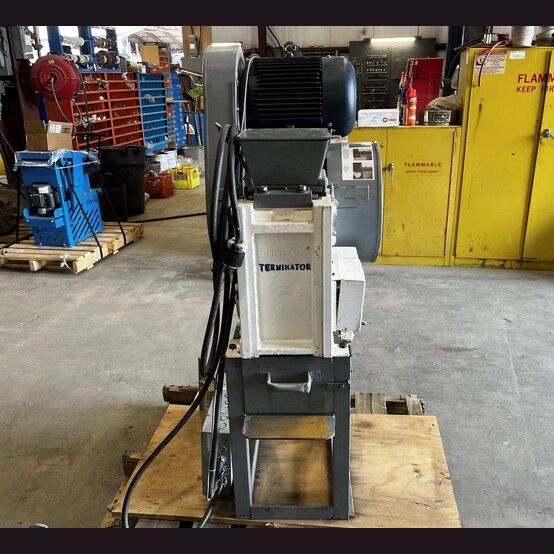

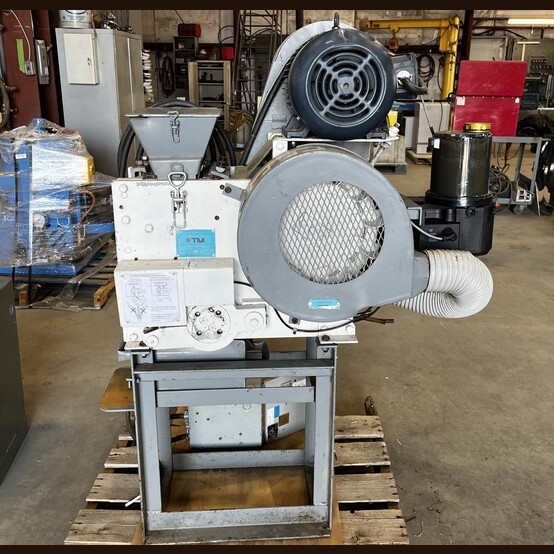

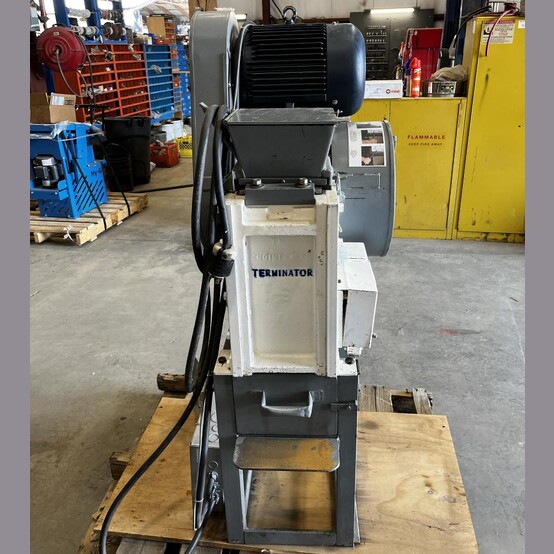

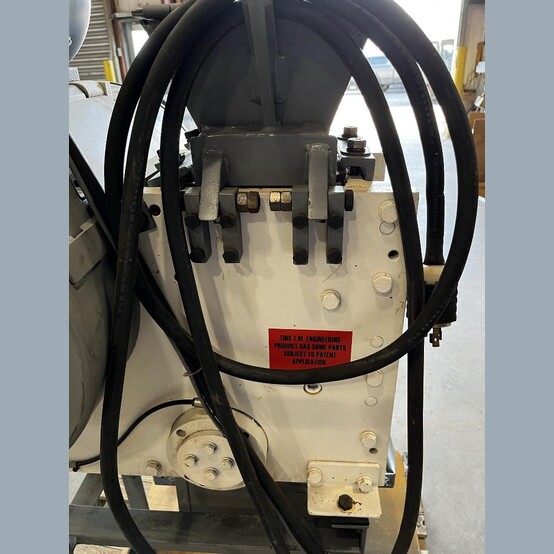

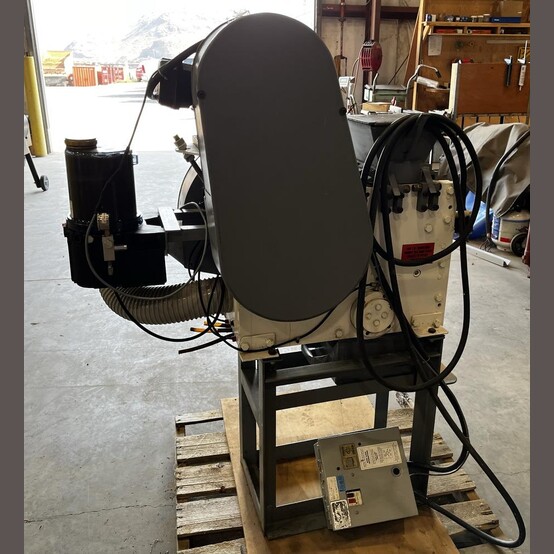

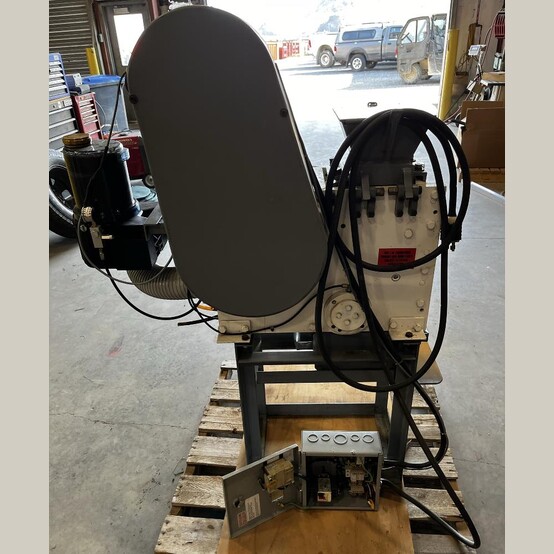

TM Engineering Terminator Jaw Crusher

• Make: TM Engineering
• Model: TM Terminator
• Serial: 171212

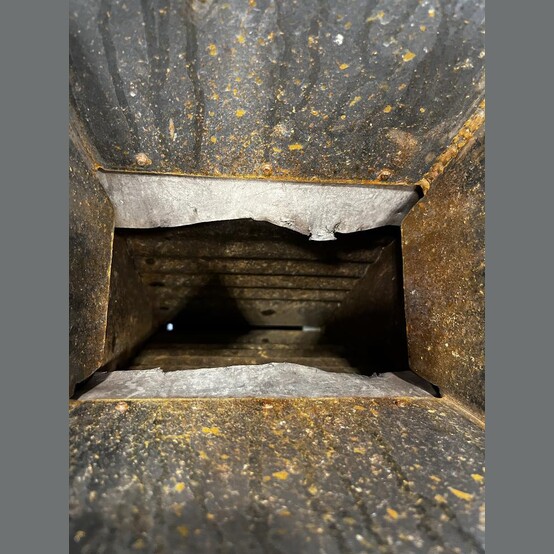

• Size: 6in x 4in Jaw

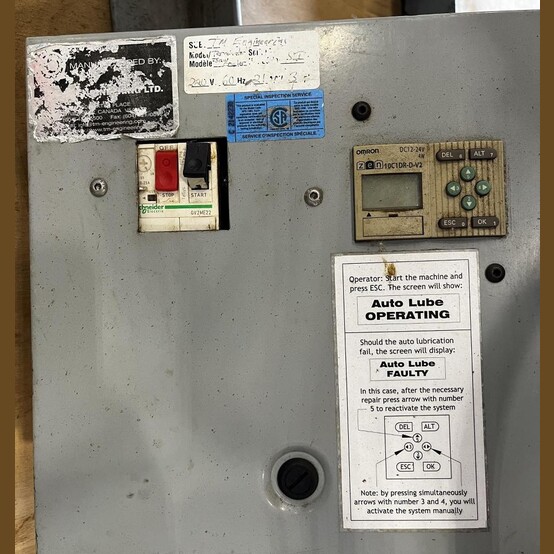

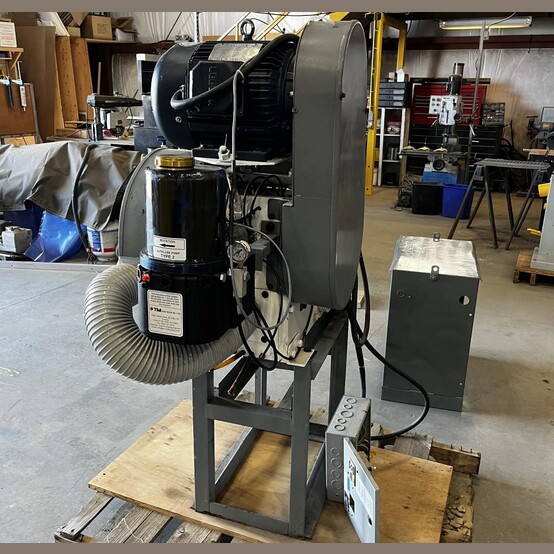

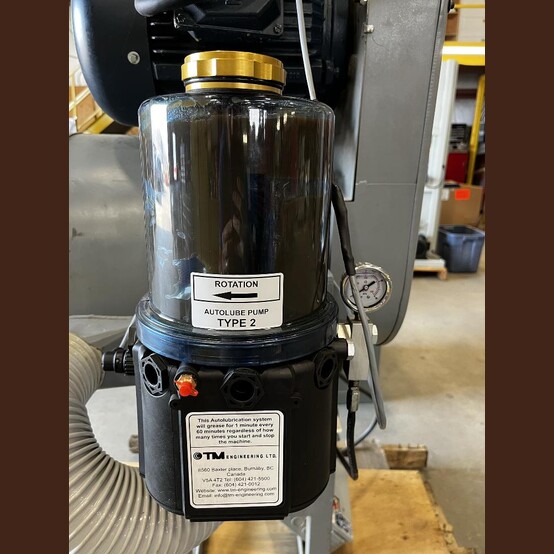

• New Auto Lube System

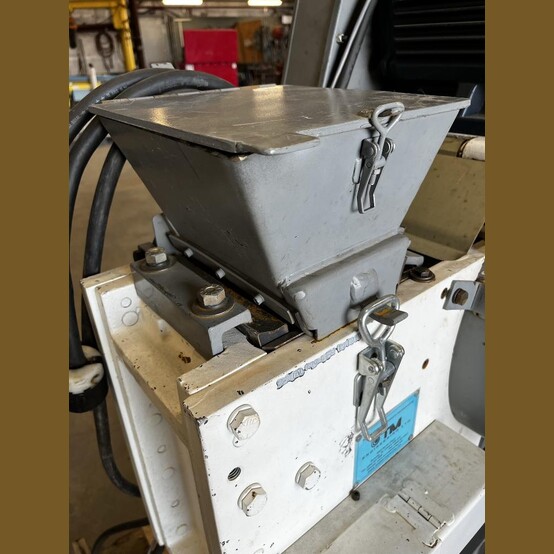

• Hopper Dimensions: With Clamping Lid
  • Width: 9in
  • Depth: 8in
  • Height: 7in
• Mounted on Angle Iron Stand
  • 2in x 2in Angle Iron

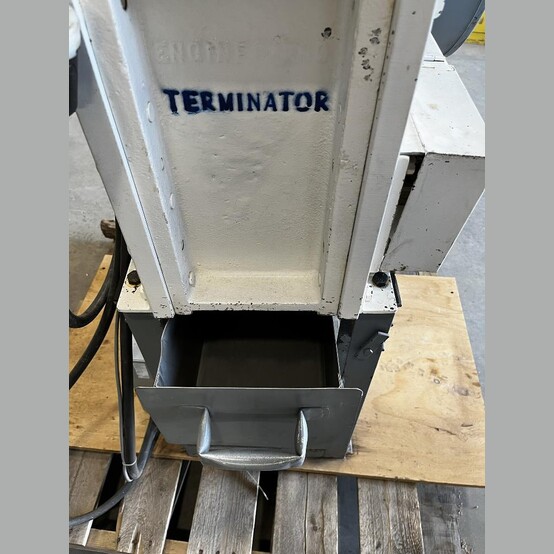

  • With Collecting Drawer

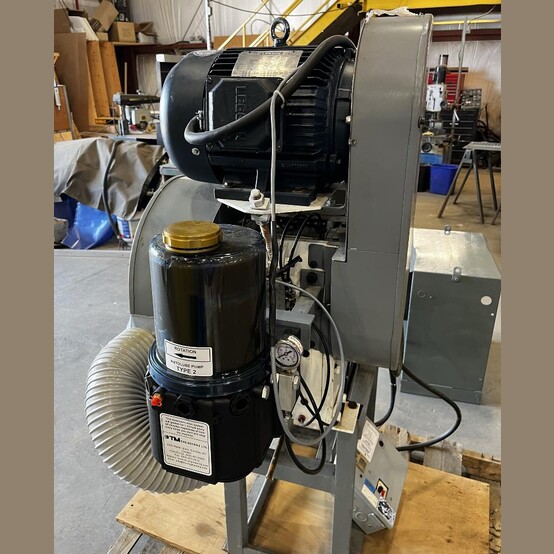

• Drive: Electric Motor

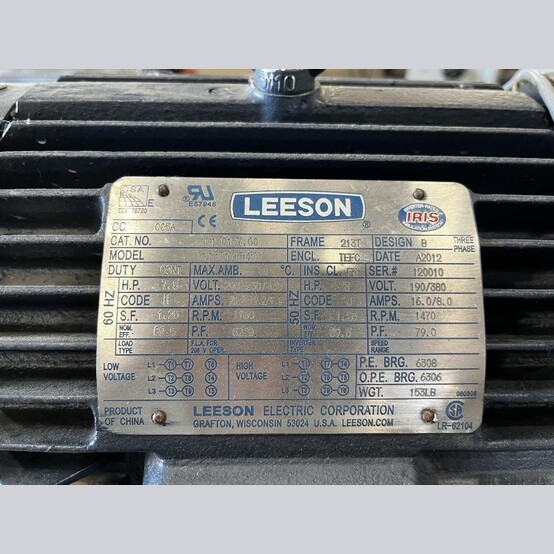

  • Make: Leeson
  • Power Output: 7.5HP (5.0HP @50Hz)
  • RPM: 1760 RPM (1470 @50Hz)
  • Voltage: 208-230/460 Volt (190/380V @50Hz)
  • Current: 20.4-19.2/9.6 Amps (16.0/8.0A @50Hz)
  • Frequency: Dual Frequency 50/60Hz
  • Phase: 3-Phase


• Overall Dimensions:
  • Length: 43in
  • Width: 24in
  • Height: 60in
  • Weight: 1,300 Lbs. (591Kg)


• Location: Savona, British Columbia, Canada
