Terex Cedarapids CRH1313R Portable HSI/Screen Plant ID: 1356681

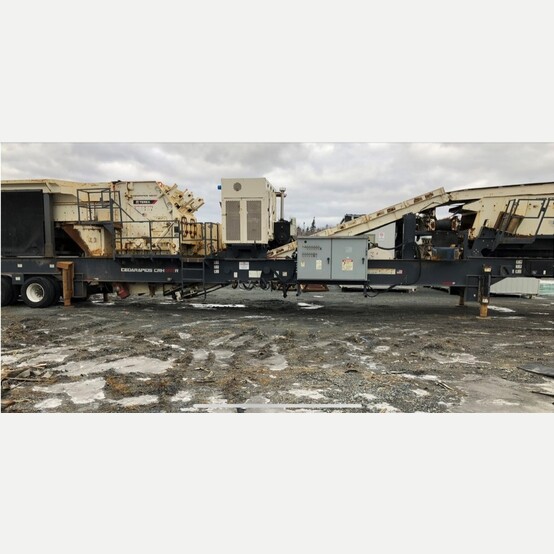

Terex Cedarapids CRH1313R Portable HSI/Screen Plant

  • Make: Terex Cedarapids
  • Model: CRH1313R
  • Capacity: 136-272 TPH
  • Year: 2016
  • Usage: 1500-2000 Hours
  • Condition: Used, Reported in "Like New" Condition
  • Carrier: Mounted on Quad Axle Trailer

  • Standard Features:
    • IP1313 Horizontal Impactor Crushing Chamber
      • High Inertia 50in Diameter x 48in Wide 3-Bar Rotor with Patented Center Pull Wedge System
      • Powered by a Tier 4, 450HP (335kW) Diesel Engine
      • Hydraulically Opened Frame and Apron Adjustment
      • Feed Chute Chain Curtain
      • Gas Hydraulic Power Unit for Crusher Open and Apron Adjust
    • Tier 4 Diesel Engine 450HP (335kW)
      • Coupled to Crusher and Generator with Hydraulic Clutch
    • 200HP (150kW) Generator and Removable Electrical Panel with Controls for All On-Plant Conveyors and Vibratory Equipment
      • Panel Includes Controls for Two 25HP (19kW) Off-Plant Conveyors (Includes Plugs and Receptacles)
    • Vibrating Grizzly Feeder 48in x 16ft (1,219mm x 4,877mm) - 25HP (19kW)
      • Straight 5ft (1,524mm) Long Bolt-In Adjustable Grizzly Bars
      • 1/2in (13mm) AR400 Replaceable Bolt-On Side and Floor Liners
      • 5/8in (16mm) AR400 Hopper
      • Bypass Chute Diverts Grizzly Fines to Undercrusher Pan Feeder
    • Wireless Remote Control for Feeder with Back-Up Remote (On-Off Speed Control)
    • Removable Feeder Module
    • Screen, Conveyors and Magnet Option Move Hydraulically Into and Out of Transport Position
    • Quad Axle Suspension with 295/75 R22.5 Tires
    • Inclined Screen 5ft x 16ft (1,524mm x 4,877mm) 2-Deck - 15HP (11kW)
      • Steeper Top Deck for Improved Scalping Performance
      • 17° Top Deck and 15° Bottom Deck
      • Both Decks can Recirculate to Crusher or Discharge Off Plant
    • 42in (1,067mm) Fines Conveyor - 7.5HP (5.6kW)
    • 48in (1,219mm) Screen Feed Conveyor - 20HP (15kW)
    • (2) 24in (610mm) Reversible Cross Conveyors - 5HP (3.7kW)
    • 24in (610mm) Return Conveyor - 10HP (7.5kW)
    • All Conveyors include Vulcanized 3-Ply Belts, CEMA C-Class Rollers, Rubber Disc Return Rolls and Side Guide Rolls
    • 300 Gallon (1,135 Liter) Fuel Tank
      • Allows Over 10 Hours of Run-Time
    • Four Hydraulic Leveling Jacks with Adjustable Rear Drop Down Support Legs
    • Lockable 4ft (1,219mm) Long Side-Mounted Storage Box
    • (2) 36in Wide x 40ft Long Discharge Conveyors

  • Transport Dimensions:
    • Length: 74ft 2in
    • Width: 11ft 11in
    • Height: 13ft 5in
    • Weight: 61,190 Kgs (Quad Axle with Magnet Option)

  • Location: Caribbean
