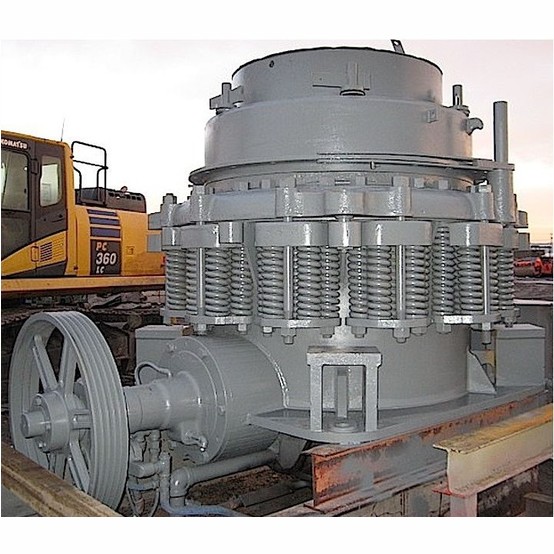

Symons 4¼ ft. Short Head Cone Crusher ID: 465152


  • Size: 4 ¼ Ft. Short Head (1973)
  • Manual Adjust
  • Condition: Reconditioned
  • Manufacture: Symons
  • Includes:
    • Crusher Sheave
    • Lube Tank /Hoses
  • Unit was completely disassembled and inspected
  • The following components were in good to very good condition:
    • Head/Main Shaft Assembly including Wipers
    • Main Frame
    • Bowl Assembly, Countershaft Box, Adjustment Cap
    • Socket Sealing Ring, Eccentric Bushings, Socket Liner
    • Socket Feed Cone, Springs and Bolts, Wedges
    • Support Arm Liners, Main Frame Liners
    • Mantle and Bowl Liner @ 75% or Better (Course Liners)
  • The following work was done:
    • Replaced Several Adjustment Bolts w/New
    • Socket Sealing Ring Springs Updated to The Support Tube Style
    •  Plus New Support Tube Installed
    • New Adjustment Cap Seal
    • New Adjustment Ring Seal
    • Adjustment Threads Pressure Washed and New Grease Applied
    • Crusher & Lube Tank Painted
  • Supplied Ready to go into service.
  • Located: Western USA
