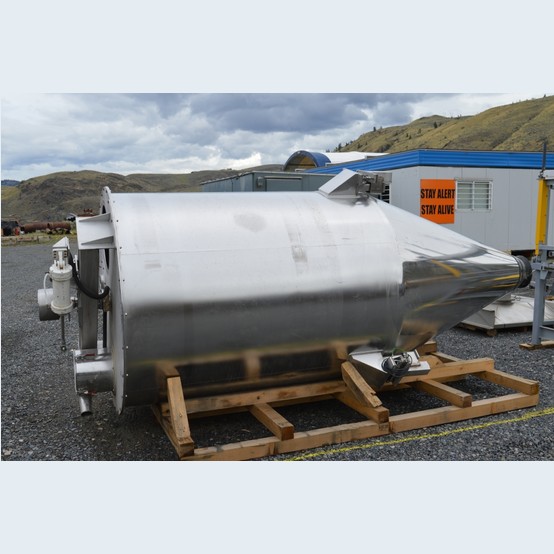

Stainless Steel Weigh Silo Package ID: 472056


  • Cone Discharge
  • Main Section: 66 in. Dia. x 88 in. Long
  • Cone Section: 76 in. Long with
    • 10 in. Flanged Outlet
  • 24 in. x 24 in. Side Access Panel with
    • 5 in. Dia. Inspection Window
  • 20 in. Opening on Top
  • 13 in. Opening on Top with
    • Clamp Down Style Lid
  • Comes with
    • Internal Cone Scraper with
      • Festo Pnematic Ram Attached to Scrapper Shaft
      • Stroke: 7.87 in.
      • Rated Force: 1059
      • Operating Pressure: 8.7 to 174 PSI
    • Allen Bradley Inductive Proximity Sensor
      • Model: 8ø2PR-BXø1
    • Tripod Stand with Legs Cut Off
      • Each Leg has an HBM Inc. Load Cell
      • Type: SB3-10100
      • Capacity: 5K
  • Comes Complete with
    • Pulse Jet Dust Collector
      • Manufacturer: Remelt Zeppelin
      • Model: DS 795 P14
      • Stainless Steel
      • Comes with
        • 1 4 Filter Tubes
          • 4 in. Diameter
          • 38 in. Long
      • Dimensions: 32 in. Dia. Main Body 69 in. High
      • 27 in. Wide x 25 in. High Access Panel
      • Bottom Opening on Main Body: 18 in. Dia.
    • Zeppelin Reimelt Dosing Auger/Screw Conveyor
      • Type: DOS 220/080/1009
      • Screw Size: 7 in. Dia. x 60 in. Long Stainless Steel
      • Dosing Screw: 3 in. Dia.
      • Screw Houseing: 8 in. Dia. x 60 in. Long Stainless Steel
      • Inlet: 10 in. Dia.
      • Outlet: 8 in. Dia.
      • Dual Drive Gear Head Motors
        • 1 for Dosing Screw
        • 1 for Conveying Screw
  • Location: British Columbia, Canada
