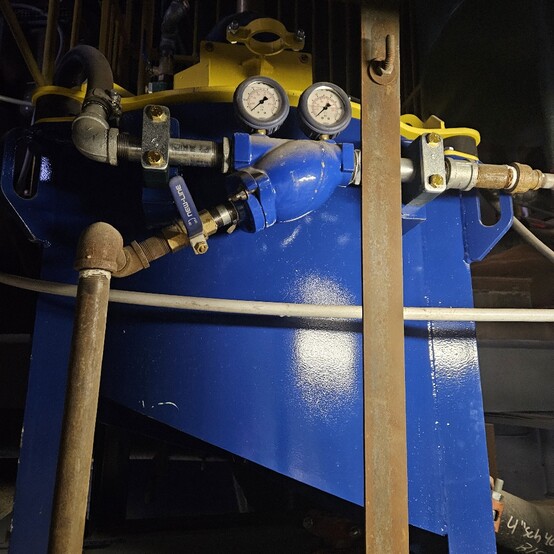

Sepro Falcon SB350 Concentrator

• Make: Sepro Falcon
• Model: SB350
• Type: Centrifugal Gravity Concentrator
• Style: Semi-Batch
• Year: 2021
• Condition: Unused Condition

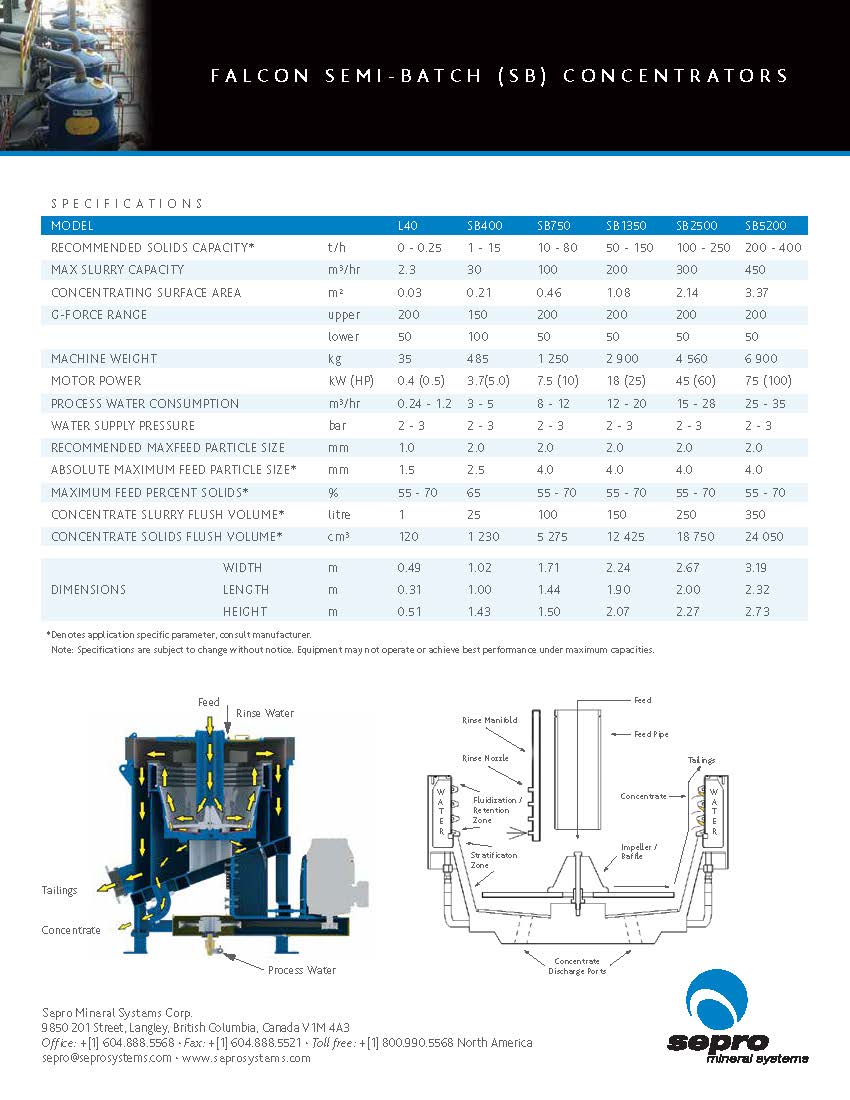

General Model Specifications:

• Solids Capacity: 1-15 TPH (Max)
• Slurry Capacity: 30m³/hour, 132 US GPM (Max)
• Slurry Density: 65% Solids (Max)
• Max Feed Particle Size: 2.5 mm
• Recommended Feed Particle Size: 2.0mm
• Concentrating Surface Area: 0.21 m²
• G Force Range: 100-150 G's (37-45 Hz)
• Electric Motor Power: 5HP (3.7 kW)
• Process Water Consumption: 3-5 m³/hr. (13-22 US GPM)
• Process Water Pressure: 2-3 bar
• Concentrate Slurry Flush Volume: 25 Liters
• Concentrate Solids Flush Volume: 1,230cm³


• Overall Dimensions:
  • Length: 1.0m
  • Width: 1.02m
  • Height: 1.43m
  • Weight: 485kg


• Location: Eastern Canada
