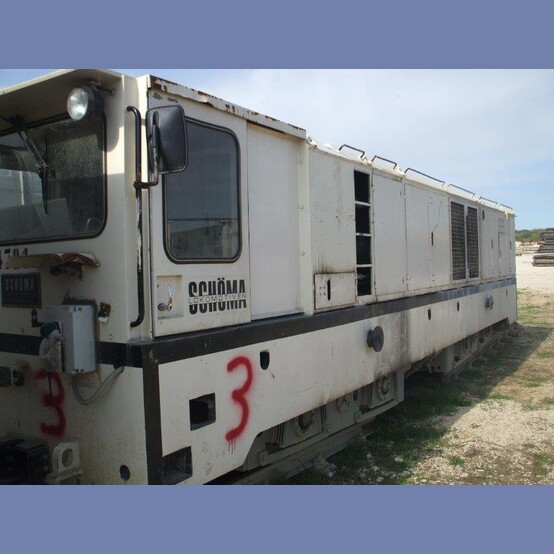

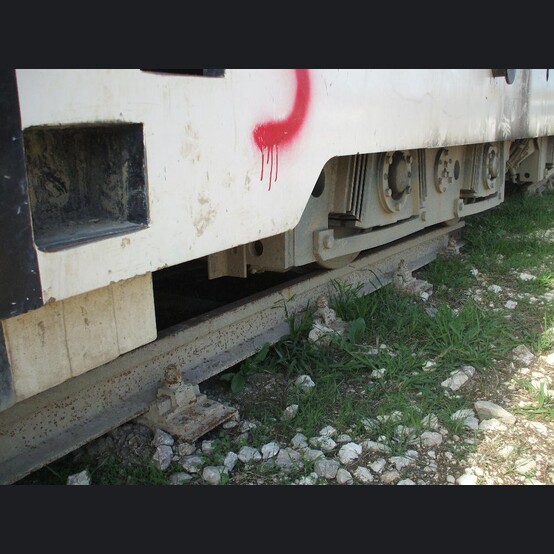

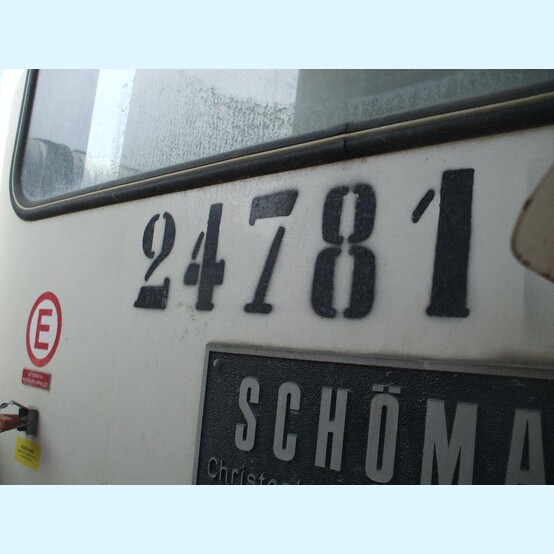

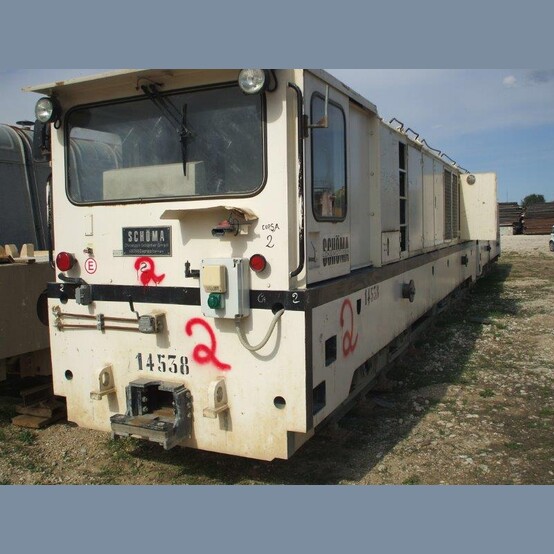

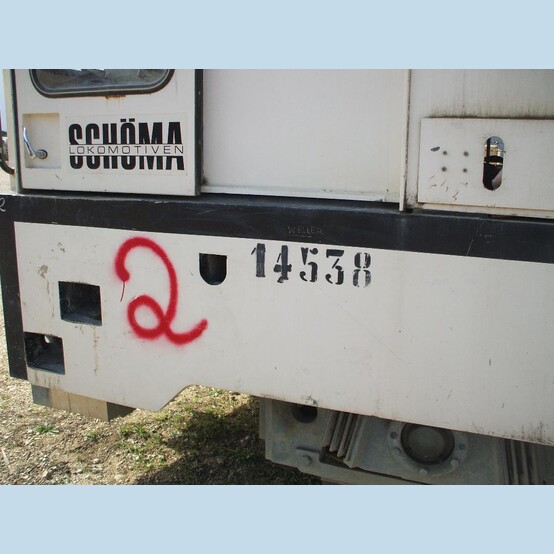

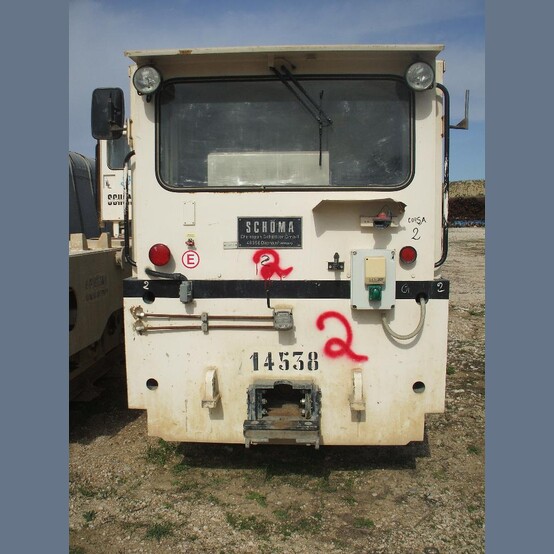

SCHÖMA Diesel Locomotives Package (6 Total Units in total)

Quantity: 3 Units

• Make: SCHÖMA

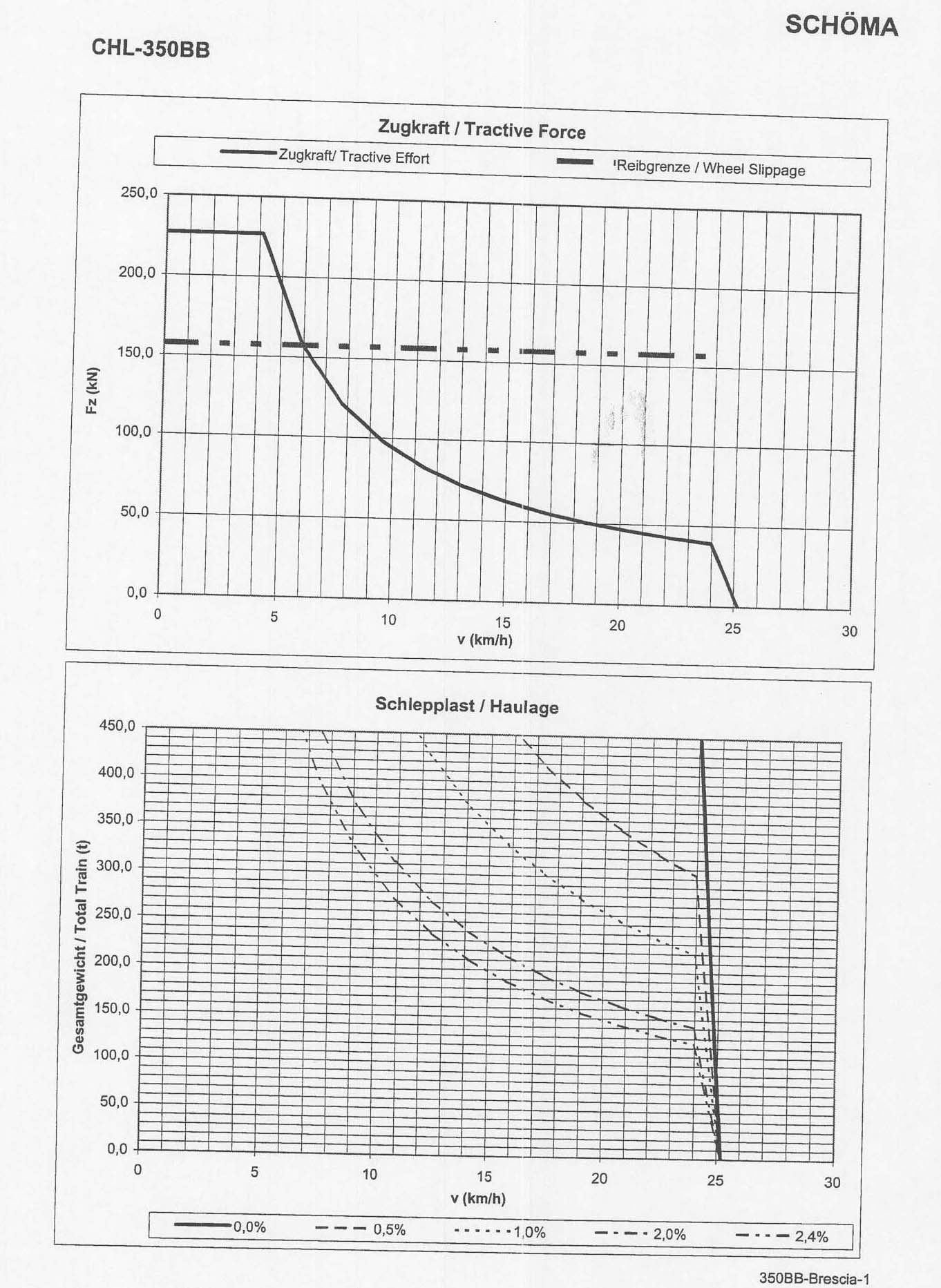

• Model: CHL -350 BB
• Year: 2004, 2006, 2007
• Hours: 6,648 (2004 Model), 5,607 Hours (2006 Model), 4797 Hours (2007 Model)

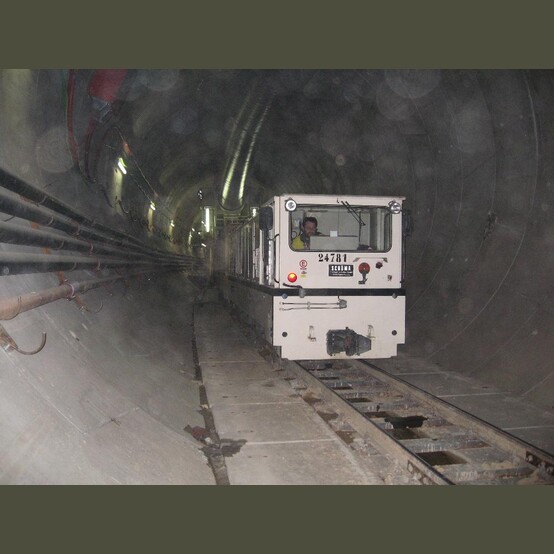

• Type: Underground Locomotives

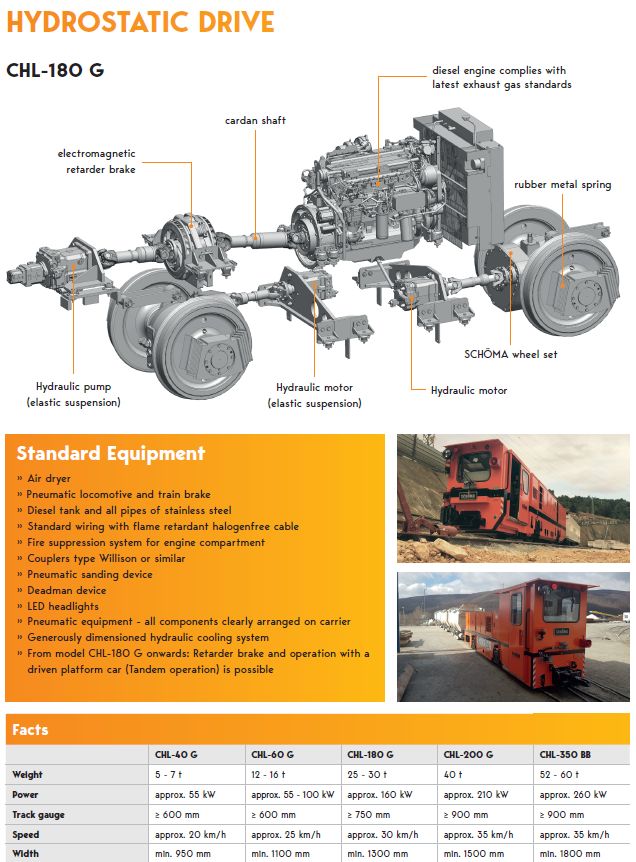

• Drive System: Diesel-Hydrostatic
• Weight: 50-60 Ton
• Axles: 4 Axle (B'B')
• Track Gauge: 900mm
• Gradient: Up To 7°
• Max Speed: Up To 30km/h
• Engine: Deutz BF8M 1015 C Stage 2
  • Output: 381kW
  • For Underground Application Complying with COM II Exhaust Emissions Limit
• Min. Curve Radius: 40m
  • Track Clearance Min 15mm
• Fuel Tank: 600 Liters Approx.


• Overall Dimensions
  • Length: 10,042mm (395.4in)
  • Width: 1,800mm (70.9in)
  • Height: 2,300mm (90.5in)

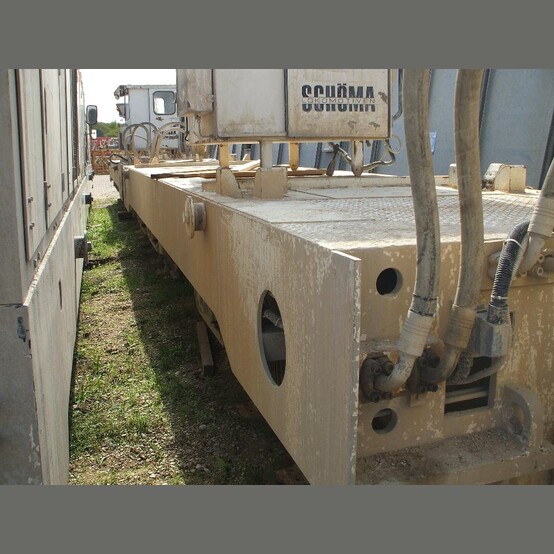

Quantity: 3 Units

• Make: SCHÖMA

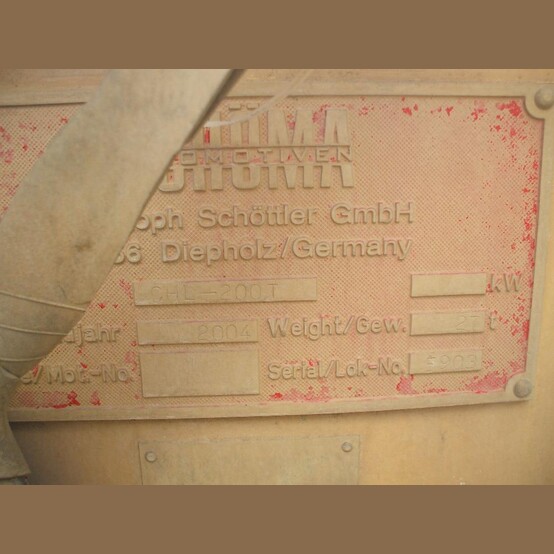

• Model: CHL-200T
• Year: 2004, 2006, 2007
• Type: Tandem Underground Platform Car
• Track Gauge: 900mm
• Weight: 27 Tons


• Overall Dimensions:
  • Length: 9,490mm (373in)
  • Width: 1,800mm (70.9in)
  • Height: 1,045mm (41.1in)


• Location: Europe
