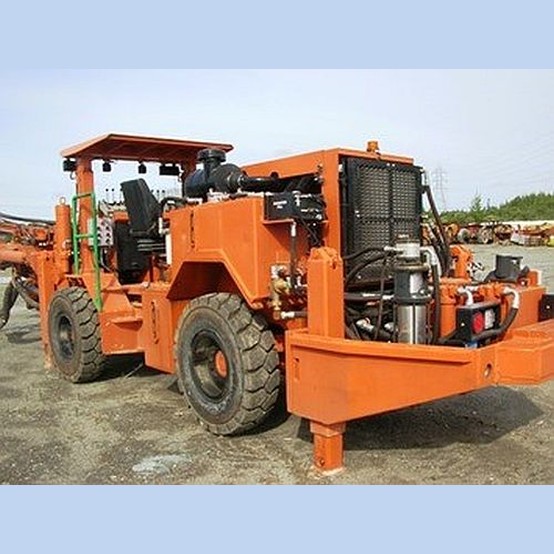

Sandvik Tamrock HL-250L 2 Boom Jumbo Drill ID: 137730


  • Sandvik Tamrock 2 Boom Jumbo Drill
    • Model: HL-205L.
      • Diesel hydraulic.
        • Totally self reliant drilling (no air or electrics required).
    • Equipped with:
      • Rebuilt items including:
        • Getman articulating narrow body carrier.
          • Model 640T.
            • 4 wheel drive.
        • Clark-Hurth axles.
        • Approved operators ROPS/FOPS canopy.
        • 4 of hydraulic stabilizer jacks.
        • Tamrock Sandvik ZRU 700 universal drill booms.
          • 358° universal roll-over.
          • 1200 mm telescopic extension.
        • Automatic parallelism in both vertical and  horizontal planes for drilling side and crosscut holes or bolt holes from a forward facing position.
        • Parallel face coverage: 41 m².
        • Tamrock Sandvik HL-500-S hydraulic drills.
      • New items including:
        • Complete diesel over hydraulic power drilling system.
        • MSHA ventilation approved Mercedes 904 diesel engine.
          • 120 hp.
          • Water cooled.
        • Exhaust purifier and muffler.
        • Engine cooling radiator.
        • Clark-Hurth 18000 powershift transmission.
        • Fully enclosed wet disc (LCB) service brakes.
          • Spring applied hydralic release park/emergency brake.
        • 12:00 R20 foam filled solid mine tires in front.
        • 12:00 R20 pneumatic mine tires in rear.
        • Dash, carrier electrical controls & gauges.
        • 24V electrical system on carrier.
        • LED lighting.
        • ANSUL fire suppression system.
        • Seating.
        • Boom extension slide guides.
        • Shims and boom stingers.
        • Drill saddles.
        • Onboard water pump.
        • Hydraulic pumps.
        • Hydraulic reservoir tank refill pump system.
        • Onborad drill steel flushing air compressor.
        • Hydraulic hoses and fittings.
        • Wiring.
        • Batteries and alternator.
        • Complete diesel over hydraulic drilling power system.
        • Pins and bushings.
        • Bearings and seals throughout the entire machine.
        • Back-up warning system.
        • Tramming warning lighting.
        • Air, oil and hydraulic reservoirs and filters.
        • Engine covers, fenders. etc.
        • Fasteners throughout the machine.
        • Paint and decals.
      • New or rebuilt items including:
        • Tamrock Sandvik 14 ft. steel slides for 14 ft drill steel.
        • Tamrock Sandvik model CF 145x14 chain feeds.
        • Tamrock Sandbik THC 500 boom controls.
        • Cylinders.
    • Unit has been completely rebuilt from ground up, tested, serviced and ready for work.



  • Shipping information:
    • Dimensions:
      • Length: 498 in. / 12.64 m.
      • Width: 77 in. / 1.96 m.
      • Height (canopy lowered): 93 in. / 2.36 m.
      • Height (canopy raised): 126 in. / 3.2 m.
    • Weight:
      • 40,000 lbs. /18,144 kg.



Please contact us for more information.
