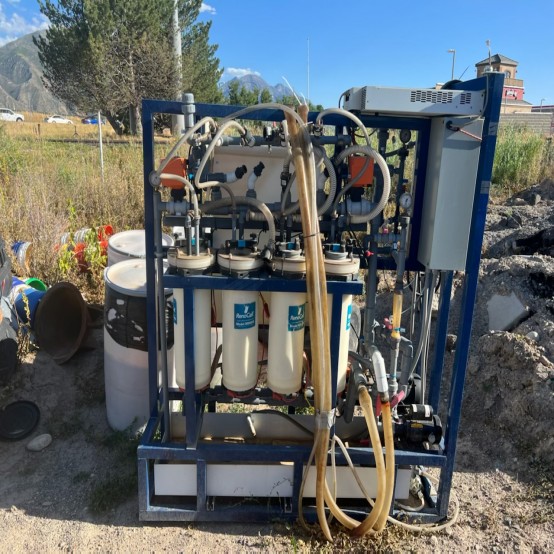

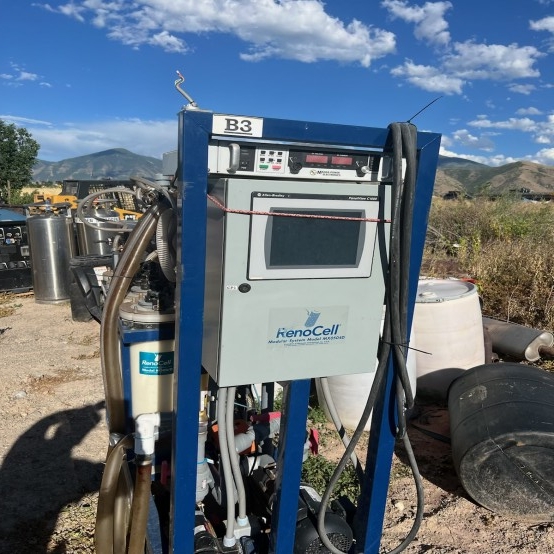

RenoCell MX0504D Metal Recovery System

• Make: Renovare
• Type: RenoCell
• Model: MX0504D
• DC Amps: 200 Amps
• Water Recirculation Rate: 32 GPM (120 l/m)
• Electrical:
  • Frequency: 50/60Hz
  • Phase: 3-Phase
  • Power Consumption:
    • 15 Amps @220 Volt
    • 8 Amps @480 Volt


• Cell: 4 Cells
  • Model: M500D
  • Material: Polypropylene
  • Anode: DSA
  • Cathode: Carbon
  • Metal Loading: 3-5 Kgs
  • Flow Rate: 30 to 90 l/m
  • Dimension: 645mm Long x 200mm Wide


• Overall Dimensions:
  • Length: 54in (1,372mm)
  • Width: 24in (610mm)
  • Height: 72in (1,778mm)
  • Weight: 475 Lbs. 216 Kgs


• Description: A RenoCell metal recovery system consists of the world's most efficient and highest performance electrolytic cell, a DC power supply and auxiliary equipment. Metal bearing rinse water or a process stream is electrolytically stripped of dissolved metal ions as it passes through the RenoCell. The metal ions are deposited as a solid metal onto a specialized high surface area, carbon cathode. When the cathode is fully loaded, it is easily removed from the cell and replaced with a fresh one. The loaded cathode may be sold for its metal value.


• Location: Central USA
