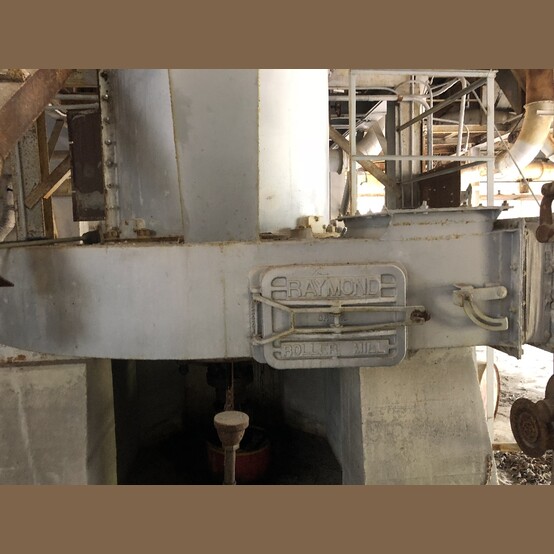

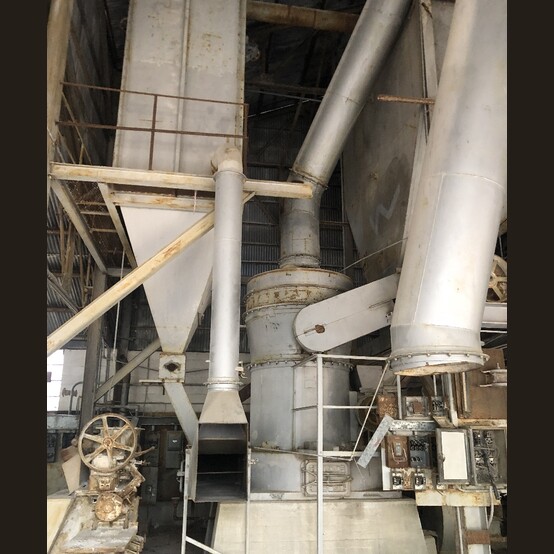

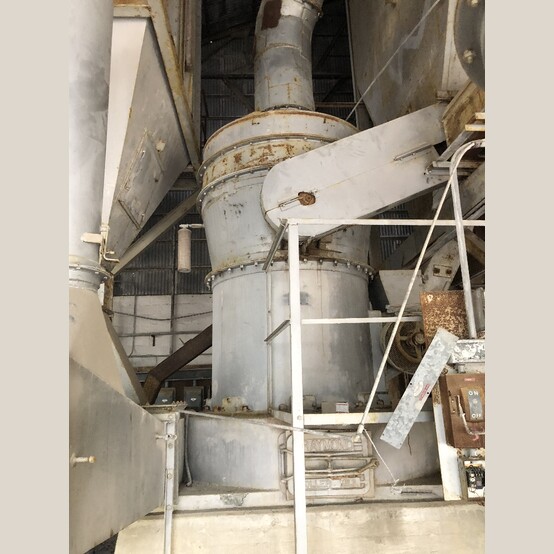

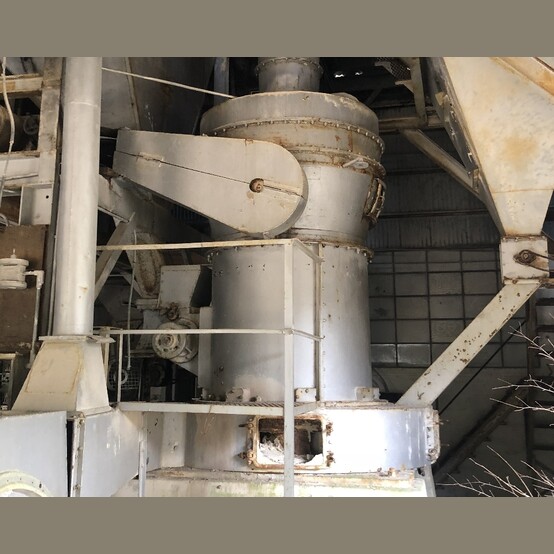

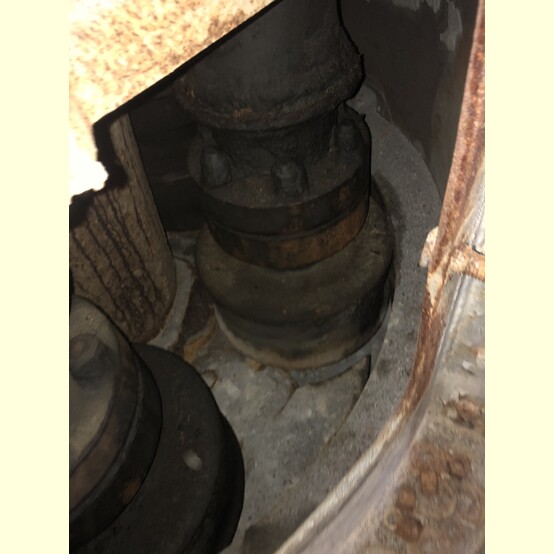

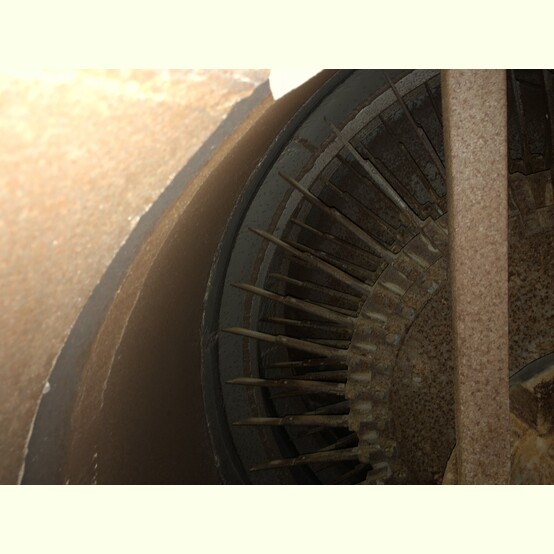

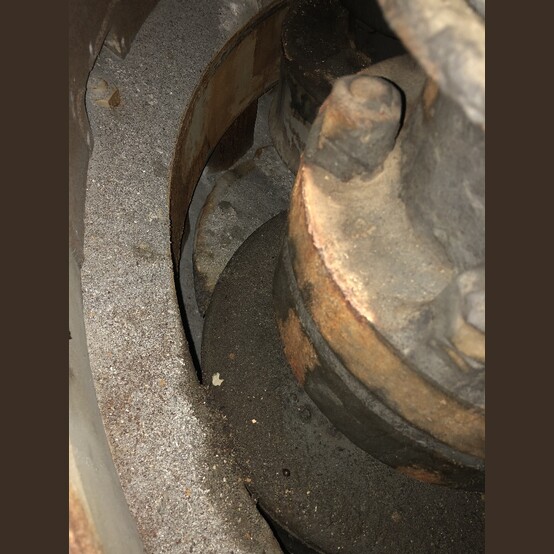

Raymond 5057 High Side Roller Mills

Quantity: 2 Units

• Make: Raymond
• Model: 5057 High Side
• Style: Vertical Roller Mill
• Year: 1968
• Condition: Used, Reported in Good Condition
• Mill Size: 50in Diameter (1270mm)

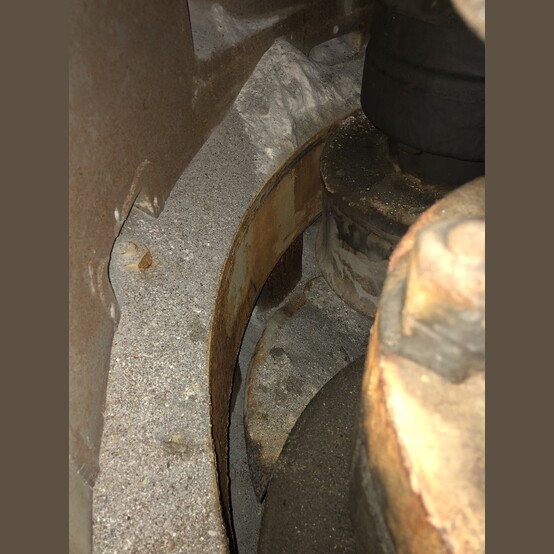

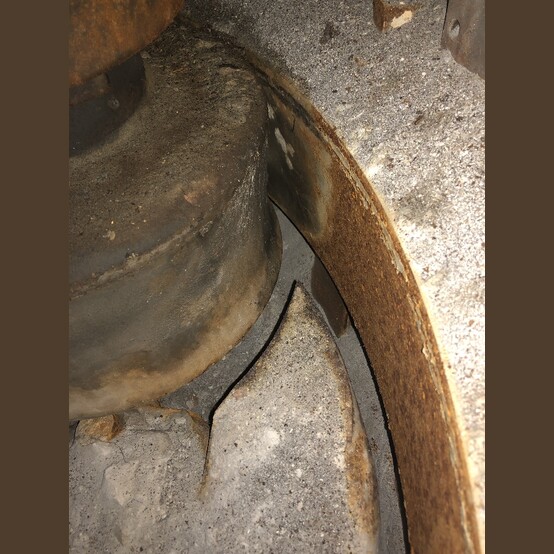

• Roller: 5 Rollers Per Mill
• Feed Size: 10-40mm (½" to 1½")
• Discharge Size: 10%R2000 micron (90% minus 10 mesh) to as fine as 0.002%R44 micron (99.998% minus 325 mesh)
• Nominal Airflow: 10,000 CFM (16,900m³/hr.)
• Max Airflow: 12,000 CFM (20,300m³/hr.)
• Water Evaporation: 1,800 Lbs./hr.


• Recommended Fan Power: 60HP (45kW)
• Recommended Mill Power: 100HP (75kW)
• Recommended Classifer Power: 30HP (22kW)


• Location: Eastern USA
