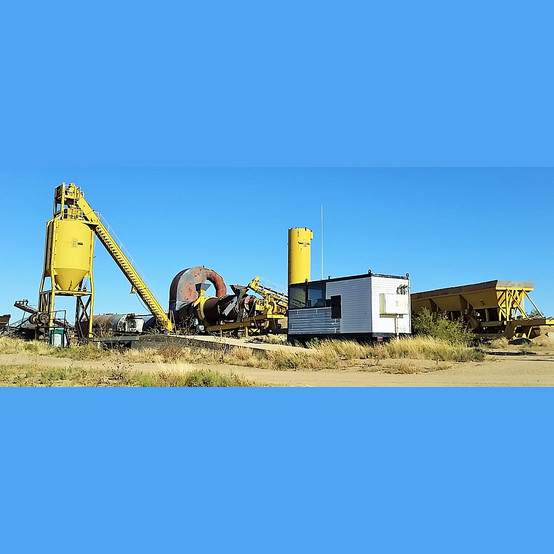

• CMI-Drum PF
  • 7 ft. x 32 ft.
  • Gear Drive 50 HP Motor
  • 4-Trunnions
  • Rap Collar
  • Reject Chute
  • Triple Axle
  • Hauck Star-Jet SJO 150 Combo Oil
  • Gas Burner with Maxion Gas Train
  • Set up to Run Diesel
  • CMI Dust Collection:
    • Model: PDM 732
    • Wet Scrubber
    • Single Axle on both Units
    • Mounted on two Separate Trailers from the Drum Rated at 45,000 ACFM
    • 150 HP Motor on Fan with Pond Pumps
  • CMI 4-Bin Cold Feed 8 ft. x 10 ft:
    • Model: PE 416
    • 30 in. x 9 ft. Ver-Speed 3 HP D.C Feeders
    • 28 in. x 55 ft. Collector Belt with
      • 10 ft. Foldable Stinger
    • 4 ft. x 6 ft. Single Deck Scalping Screen
    • Single Axle
  • CMI Incline Charging Conveyor
    • 30 in. x 60 ft. Conveyor
    • Ramsey Weigh Belt
    • Single Axle
  • CMI Drag Slat Conveyor:
    • Model: PD 106
    • 18 in. x 65 ft.
    • Single Axle
    • CMI 100 ton Silo and Batcher
      • Single Axle
    • Low Profile 70 ft. Scales
  • A.C System:
    • Model: 20HOHTM-2
    • 30,000 Gallon Split 20-10 Coiled A.C Tank with
      • CEI 1500 Hot Oil Heater (Oil/Gas)
    • Set up on Diesel with
      • Fuel Pump and Unloading Pump
    • Tandem Axle
    • 20,000 Single Compartment Coiled Skid Mounted A.C Tank
    • 3 in. Metering Pump and Package
  • Dust Silo:
    • 400 BBL Dust Silo
    • 12 in. Rotary Air Lock and Blower Kit
    • Single Axle
  • Recyling Kit:
    • Single Bin 8 ft. 14 ft.
    • 30 in. x 60 ft. Latices Conveyor with
      • Weigh Bridge
  • CMI Duel Room Control House:
    • 280 Degree
    • Plug in Nema Cable
    • Air-Heat
    • System Computer Controls
    • Manual Start Stop Station
  • Location: Southern USA
