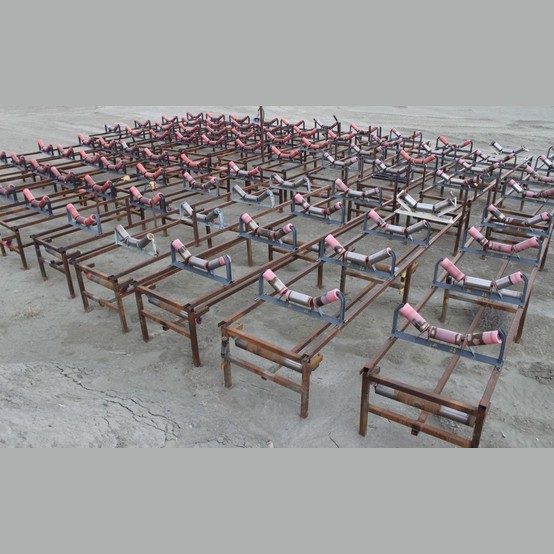

- 36 in. wide x 600 ft. long.
- 36 in. wide - 5 in. dia. 35 deg. troughing idlers.
- 42 in. high square tube frame construction.
- 20 - 20 ft. long sections - 2.5 in. x 2.5 in. square tubing.
- Legs at both ends with 3 return idlers.
- 20 - 20 ft. sections with center leg only and 1 return idler.
- Heavy duty constructed head and tail sections.
- 40 ft. head section:
- 50 hp electric motor.
- 24 in. dia. head pulley with rubber weld on lagging.
- 3 7/16 in. dia. shaft and bearings.
- Size 7 shaft mount reducer, 25:1 ratio.
- 8 in. dia. snub pulley.
- 18 in. x 7.5 in. H-Beam skid frame.
- 30 ft. tail section:
- 20 in. dia. tail pulley with rubber weld on lagging.
- 2 13/16 in. dia. shaft and bearings.
- 5 in. dia. x 35 deg. impact idlers.
- Rollers on 12 in. centers.
- Ratcheting take ups.
- 18 in. x 7.5 in. H-Beam skid frame.
