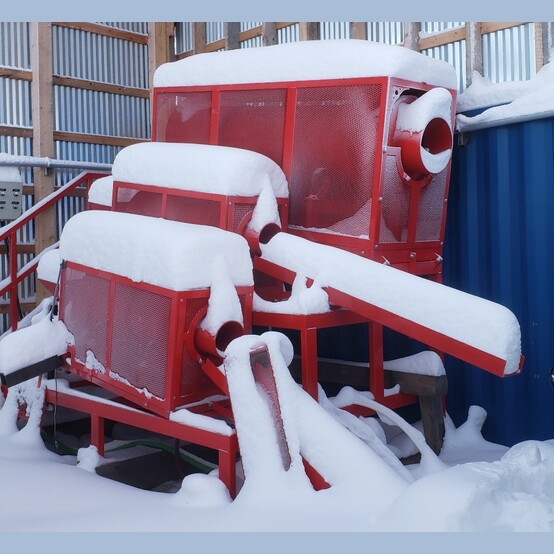

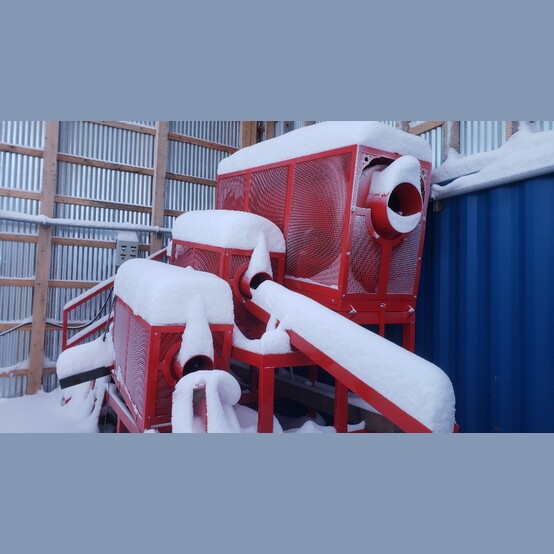

Oro Spiral Concentrator Bank

  • Make: Oro Industries
  • Models:
    • 24in Reverse Multi-Helix Spiral Rougher
    • 16in Reverse Multi-Helix Spiral Cleaner
    • 16in Reverse Multi-Helix Spiral Finisher
  • Style: Concentrators
  • Condition: Brand New

  • General Model Specifications:
    • 24in Reverse Multi-Helix Spiral Rougher
      • Production Rate: 12–15 TPH
      • Water Consumption: 40–50 GPM @ 20–40 PSI
      • Power Requirements: 3HP, Single or 3-Phase, 220/440 Volt, 50 or 60Hz
      • Powder Coat Finish
      • Dimensions:
        • Length: 153in
        • Width: 34.5in
        • Height: 77in

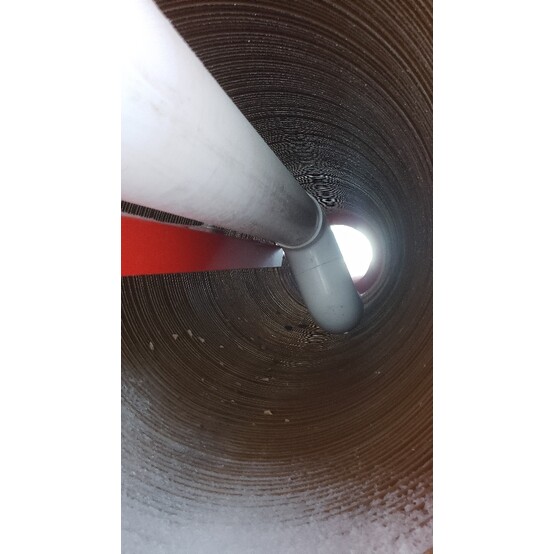

    • 16in Reverse Multi-Helix Spiral Cleaner
      • Production Rate: 1–2 TPH
      • Water Consumption: 15–20 GPM @ 20–40 PSI
      • Power Requirements: 0.5HP @ 120 Volt, 50 or 60Hz
      • Powder Coat Finish
      • Dimensions:
        • Length: 84in
        • Width: 36in
        • Height: 60in

    • 16in Reverse Multi-Helix Spiral Concentrator
      • Can be Used in Conjunction with our standard Secondary Cleaner to Shorten Clean-Up Time when Concentrating Large Volumes or in Certain Custom Applications.
      • Its Highest Production Performance is with Fine Concentrates of Materials Less than 1/8in (0.125in)
      • Up to 90% of All Concentration and Clean-Up Needs can be Achieved with the standard 16in Secondary Cleaner.

  • Also Available! - MSI 255 Xtruder Concentrating Table

  • Location: Northern Canada
