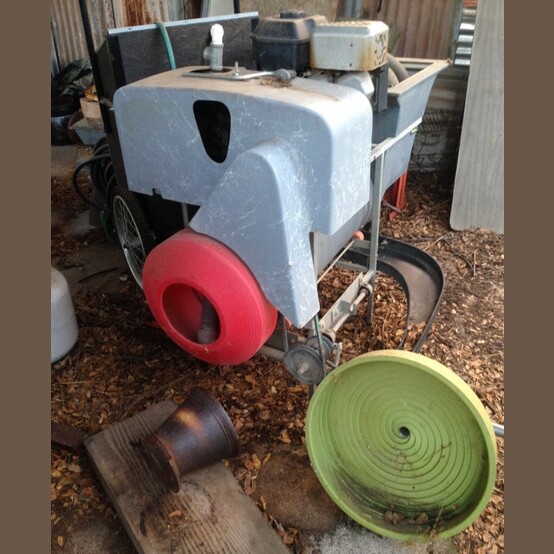

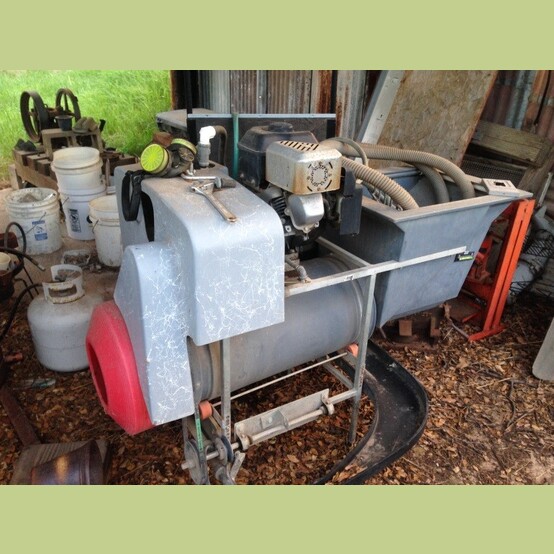

Original Gold Screw Trommel Concentrator

• Make: Gold Screw
• Type: Trommel/Concentrator
• Condition: Used, Reported in Good Condition
  • Previously Used for Sampling a Placer
• Capacity: 2yd³ Per Hour of Unclassified Material
  • Process Bank Run Material Down to 150 Mesh in Under a Minute
  • One Continuous Operation takes Bank Run to Final Values with Minor Adjustments
  • Recovers up to 98% of 150 Mesh Gold


• Features:
  • Revolving Trommel with 60ft of Reverse Spiral Thread with Clean-Up Pan
  • 2.5in Grizzly Classification in Hopper
  • Plated Adjustable Legs & Powder-Coated Frame for Easy Level Adjustment
  • Drive: Powered and Belt Driven by Briggs and Stratton Engine which Also Powers 150GPM Pump


• Overall Dimensions: Approx.
  • Length: 60in
  • Width: 26in
  • Height: 36in
  • Weight: 180 Lbs.


• Location: Southwest USA
