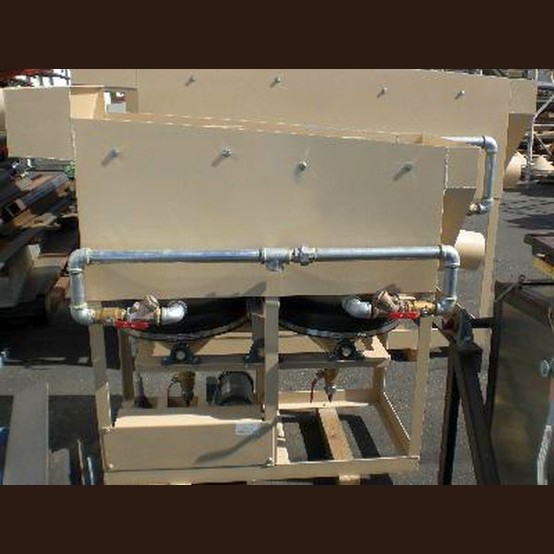

(New) Duplex 26 in x 26 in High Efficiency Mineral Jig ID: 137051


  • Duplex High Efficiency Mineral Jig.
    • Size: 26 in. x 26 in.
      • Please see specs tab below for capacities and requirements.
    • Recovers higher placer gold values than riffles.

Specifications:

  • Specifications if used as Rougher Jig
    • Maximum Capacity, CU. YDS. Per Hours: 10
    • Average Hutch Water Requirement, Gal./Min./Cell: 30
    • Average Length of Stroke, Inches: 1
    • Average RPM Eccentric Shaft: 140
    • Power Installed, HP: 2
    • Approximate Power Consumed in Operation, HP: 1.0
    • NET Weight, LB: 2300
  • Specifications if used as Cleaner Jig
    • Maximum Capacity, CU. YDS. Per Hours: 3
    • Average Hutch Water Requirement, Gal./Min./Cell: 20-25
    • Average Length of Stroke, Inches: 1/2
    • Average RPM Eccentric Shaft: 170
    • Power Installed, HP: 2
    • Approximate Power Consumed in Operation, HP: 1.0
    • NET Weight, LB: 2300



Please contact us for more information.
