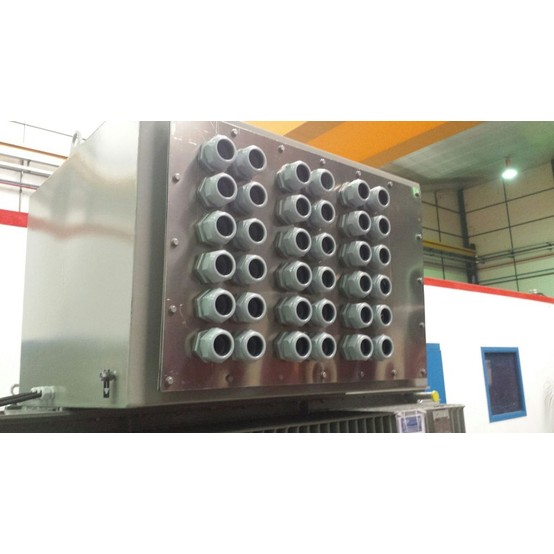

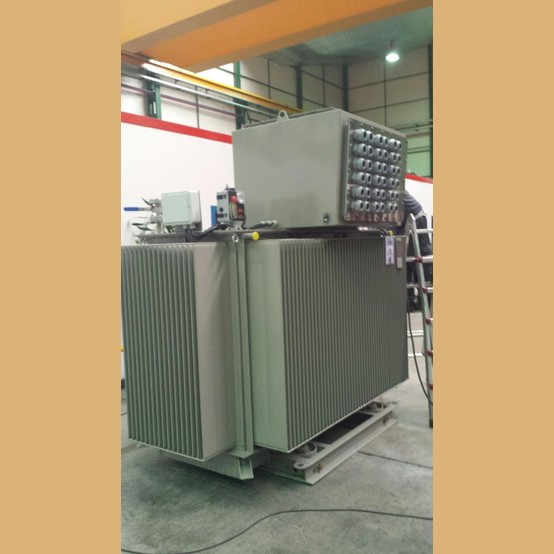

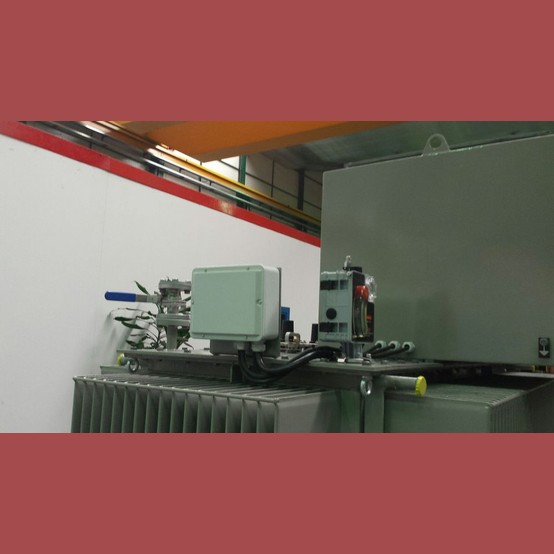

• General Data:
    • Power Rating: 2200 KVA.
    • Primary Voltage: 33 kV.
    • Secondary Voltage: 420 V.
    • Tappings: ±2,5±5 %.
    • Vector Group: Dyn11.
    • Frequency: 50 Hz.
    • Cooling: ONAN.
    • Ambient Tª /Av. Winding Tª rise / Oil Tª rise 40ºC / 65 K / 60 K.
    • Insulation Levels HV (Vmax / LI / AC) 36 / 170 / 70 KV.
    • Insulation Levels LV (Vmax / LI / AC) 1,1 / 20 / 10 KV.
    • Material: HV/LV Aluminum / Aluminum.
    • Standards: IEC 60076-1.
    • (UE) Nº548/2014.
  • Electrical Data
    • No-load losses: 1800 W.
    • Load losses to 75ºC: 21600 W.
    • Short-circuit voltage to 75ºC 6 %.
    • Sound power Lw(A): 61 dB(A).
  • Approximate Dimensions & Weight
    • Length 2490 mm.
    • Width 1560 mm.
    • High 2450 mm.
    • Total weight 6650 Kg.
