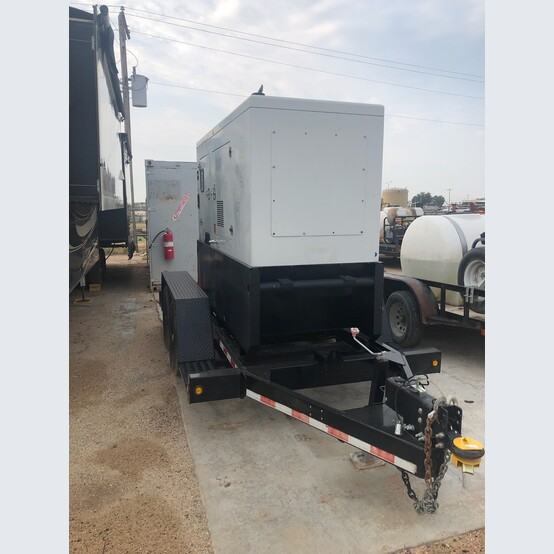

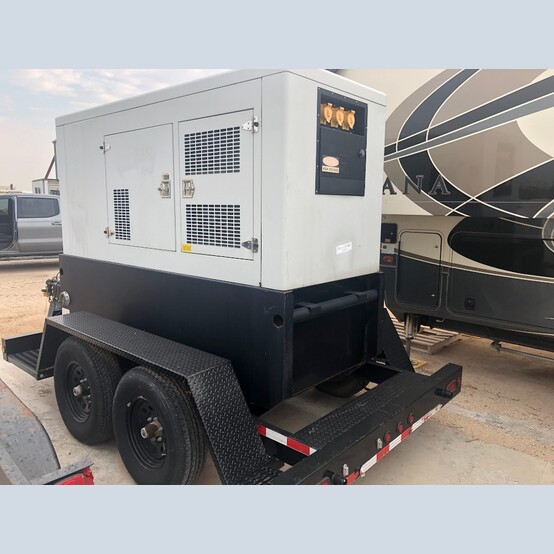

HIPOWER 117kW Diesel Generator

Quantity: 3 Units Available (4500, 10,000, 14,000 Hours)

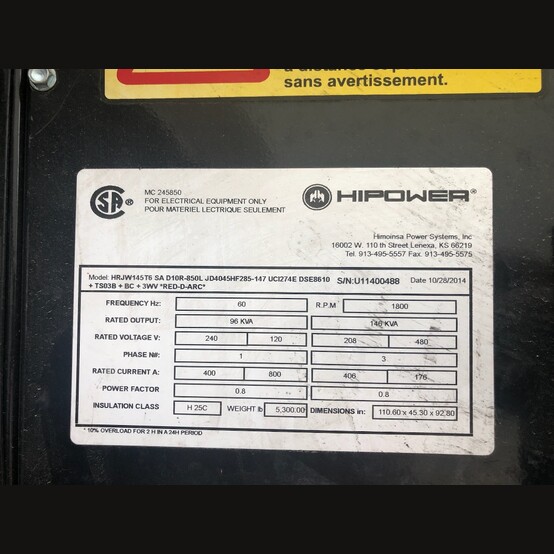

60 Hz Power Ratings KVA (kW)

120/240 V, 1 Ph, PF 1:        Prime: 96.0 kVA / 96.0 kW

                                        Standby: 104.0 kV A/ 104.0 kW

120/208 V, 3 Ph, PF 0.8:      Prime: 145.6 kVA / 116.5 kW

                                         Standby: 159.8 kVA / 127.9 kW

277/480 V, 3 Ph, PF 0.8:      Prime: 146.7 kVA / 117.4 kW

                                         Standby: 161.4 kVA / 129.1 kW

  • Voltage: 480V Max
  • Amperage: 176A Max (@480V)

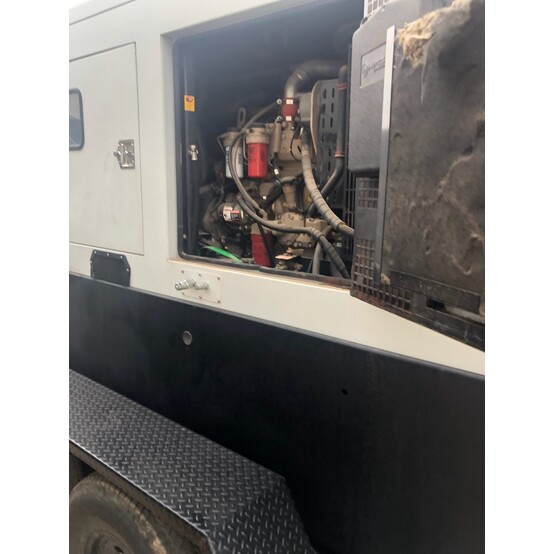

  • Engine:
    • 2014 John Deere 4045HF285-147
    • Diesel Inline 4-Cylinder
    • Tier 3
    • 179 HP
    • 1800 RPM
  • Alternator
    • Stamford UCI 274 E Winding 311
    • Voltages
      • 1-Phase 120/240 Volt
      • 3-Phase 120/208 Volt, 277/480 Volt
    • Power Factor: 0.8
  • Voltage Selector Switch: Three Position; 120/240 1 Phase, 120/208 3 Phase, 277/480 3-Phase
  • Control Panel
    • DSE8610
    • Digital Control Center
    • Engine Hour Recorder
    • 3 Ammeters
    • Voltmeter
    • Hz Meter
  • Sound Attenuated Enclosure
    • 74 dB at 7 Meters
    • 11 Gauge Steel
    • Exceeds 1000 Hour Salt Spray Test
  • Dimensions (w/o Trailer): 110.6" Long x 45.3" Wide x 92.8" Tall
  • Weight: 5300 Lbs Dry
  • Mounted on Tandem Axle Trailer
  • Trailer Dimensions: 180" Long x 77" Wide x 14" Tall
  • Trailer Weight: 975 Lbs
