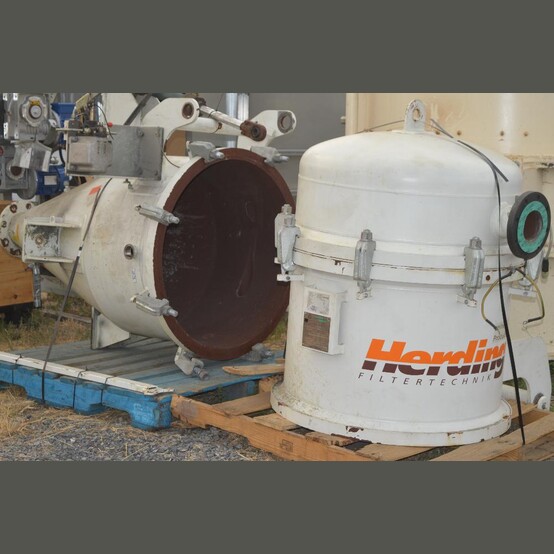

Herding Vacuum Filter

• Volume: 890 Liters
• Mass: 674 kg
• Filter Type: HSL 450-4/8 E
• Allowable Working Over Pressure: -0.5/+0.1 Bar
• Test Over Pressure: 9 Bar
• Allowable Working Temperature: 50°C
• Dimensions:
  • Top: 35" Diameter x 41" Long
    • With 4" Inlet
    • Heavy Duty 8 Bolt Flange
  •  Bottom: 35" Diameter x 62" Long
    • 6" Outlet
    • Heavy Duty 8 Bolt Flange
• Manual Hydraulic Top Lift
• Dimensions of Hydraulic Ram for Top Lift:
  • 2.5" Diameter x 16.5" Long With Approx. 10" Stroke

Roots 711 U-RAI Rotary Lobe Blower

• Model: 711 U-RAI
• Flow: 1387 CFM
• Pressure: 10psi
• Vacuum: 16inHgv
• Speed: 2050 RPM
• Motor: Baldor TEFC
• 30 HP
• 1760 RPM
• 230/460 Volts
• 286T Frame
•  Dimensions:
• Top Tank
• 14" Diameter x 44" Long
• 4" Outlet with 8 Bolt Flange
• Bottom Tank
• 14" Diameter x 44" Long
• 4" Inlet with 8 Bolt Flange
• Mounted on Common Frame made from 4 x 2 Channel
• Location: British Columbia, Canada
