Application Data:

• Maximum Material Weight: 23 kg
• Screen Vibrating Weight: 408 kg for Balancing
• Screen Total Weight: 454 kg for Lifting
• Unit Weight: 907 kg
• Motor Speed: 1200 rpm
• Motor Power: 2 Hp
• Motor Voltage / Freq / Phases: 480 V /60 Hz/ 3 Phases
• Number of Motors: 2
• Motor Type / Total Hp: Unbalanced OLI motor / 3.48 Hp
• Media Type: Tyrethane
• Top Deck Media Aperture: 0.3mm x 12mm / 30mmTHK
• Opening Type: Slotted

Includes:

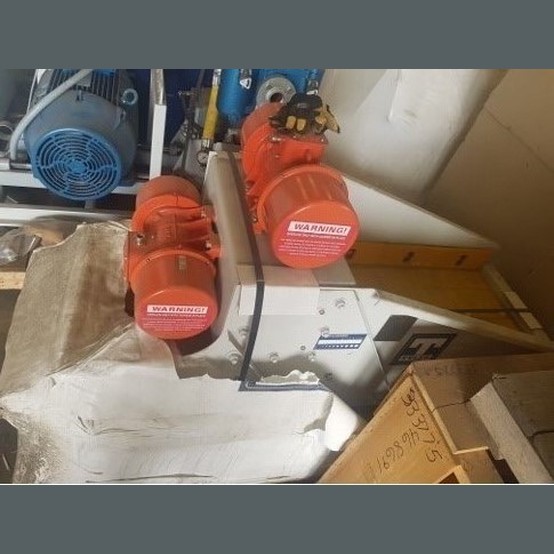

• 1: UML-Class (Unbalanced Motor)

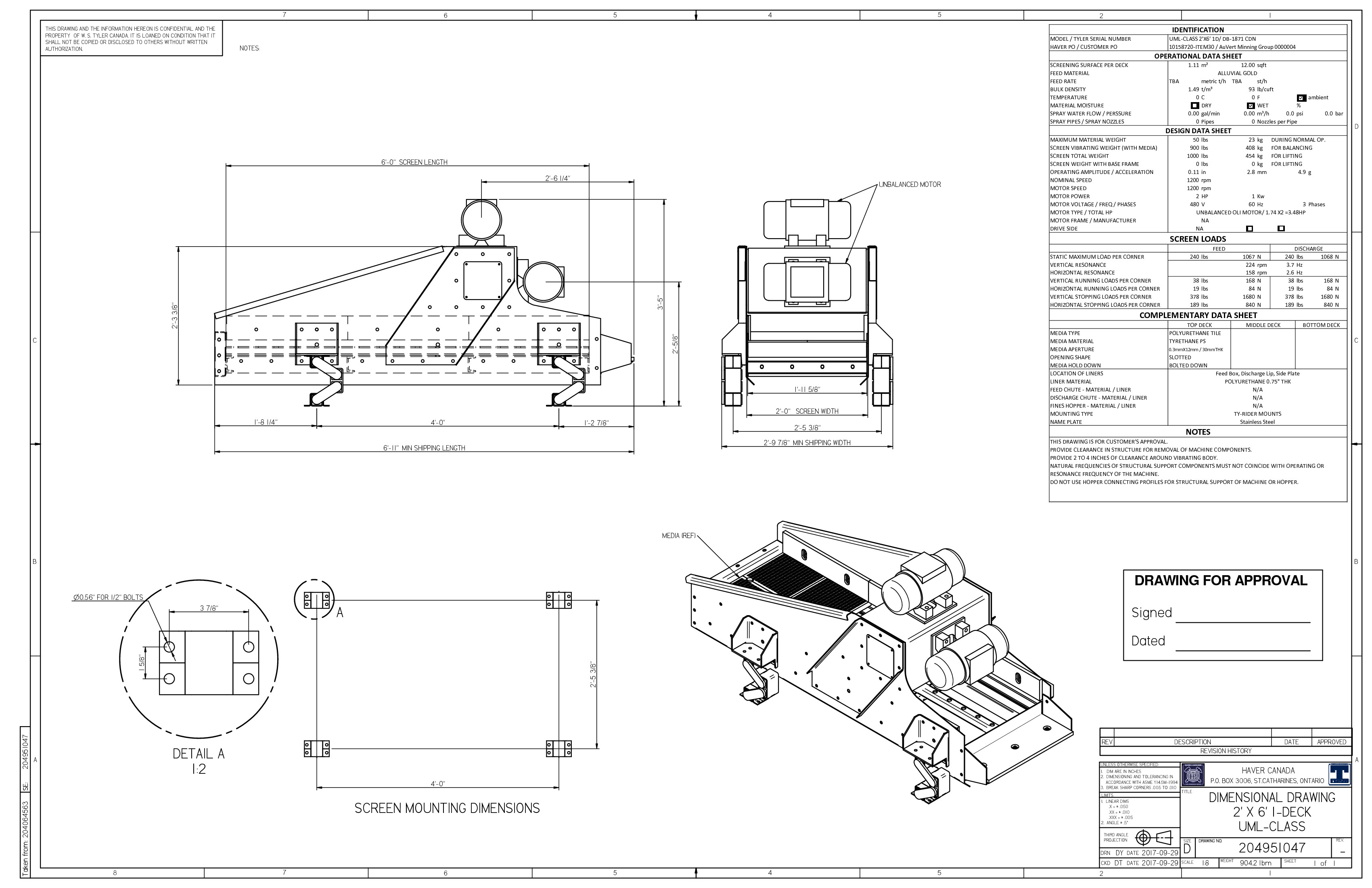

  • 2ft. x 6ft. 1 Deck Horizontal Vibrating Screen set up for Modular Media
• 1: Deck 1 Media:
  • Modular Urethane Panels (Pin and Sleeve)
    • 12 sections
    • 1ft. x 1ft
    • 0.3mm x 12mm Slotted Openings
    • 30mm Thickness
• Location: Western Canada
