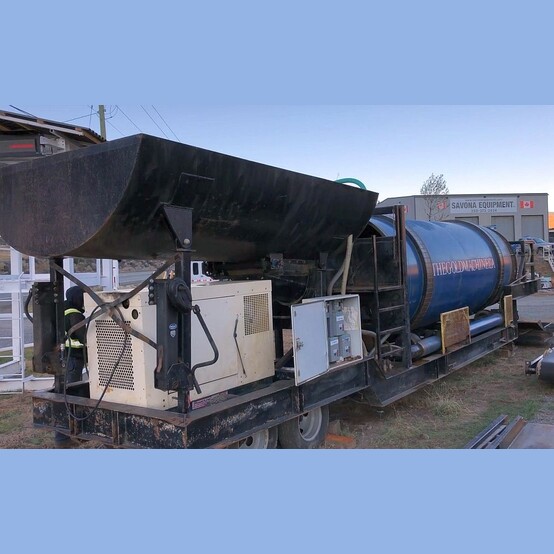

Gold Machine Model 100 Trommel Wash Plant ID: 580600

Need this? Click here    Have one? Click here

Specifications:

  • Capacity: 100 Cubic Yards Per Hour
  • All Electric drives

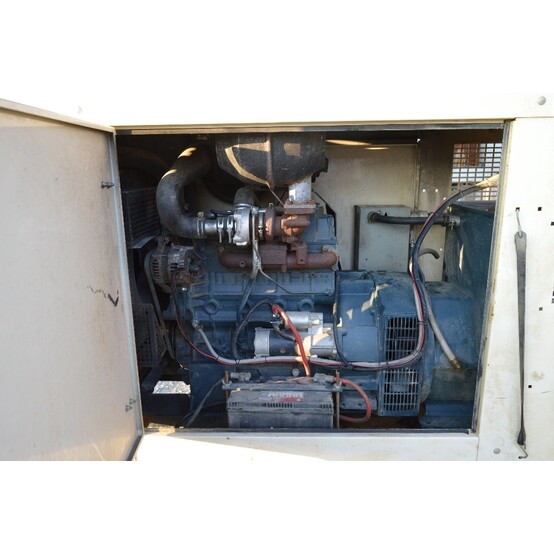

  • On Board Kubota Diesel Generator
    • Model V3600-T
    • Stamford Generator
      • 230/460 volt Output

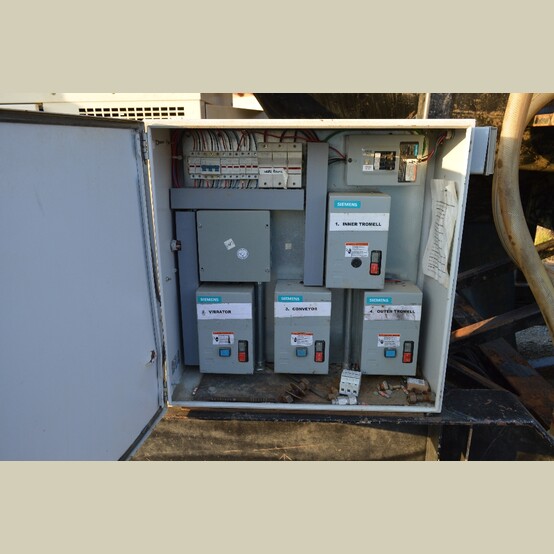

  • Siemens Electrical control panel

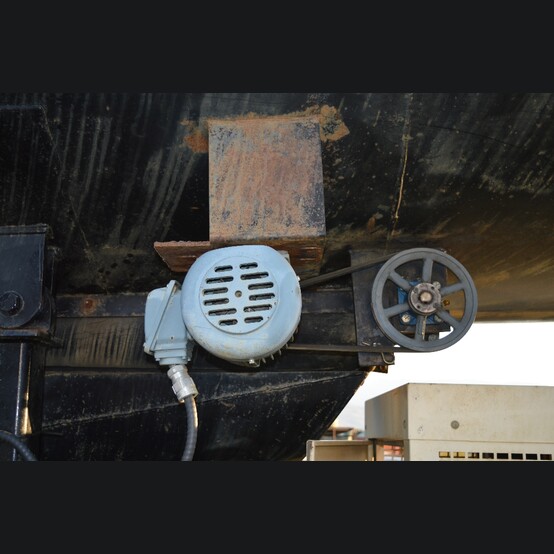

  • Feed hopper with spray bars and electric vibrator
    • 1.5 HP motor

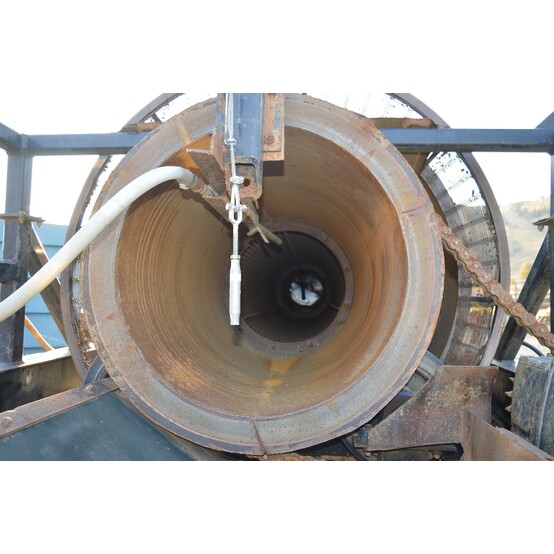

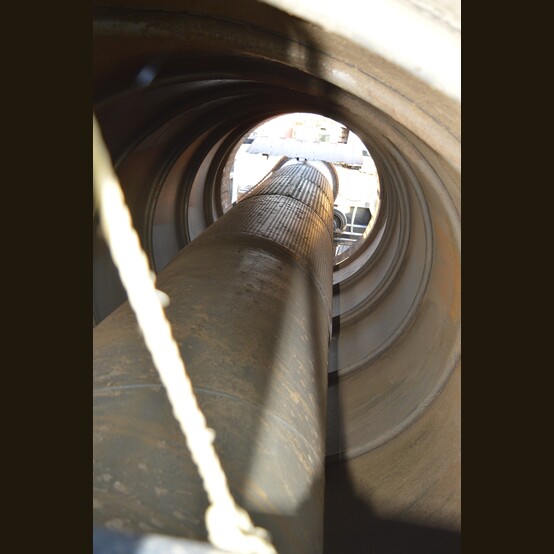

  • Inner drum driven by a 20 HP SEW-Eurodrive gearhead motor
    • 12.39 - 1 ratio.

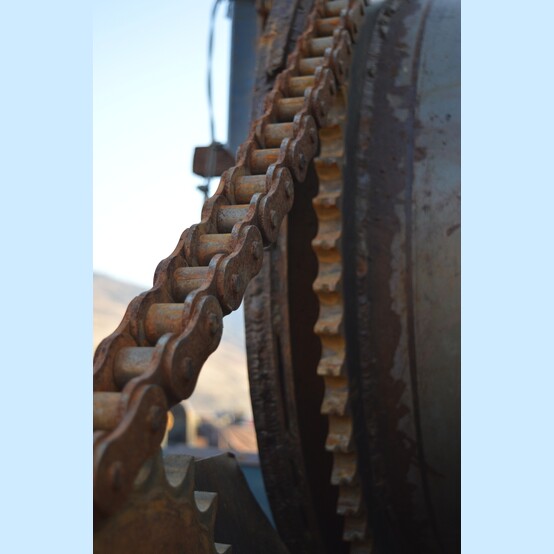

    • Chain drive to drum

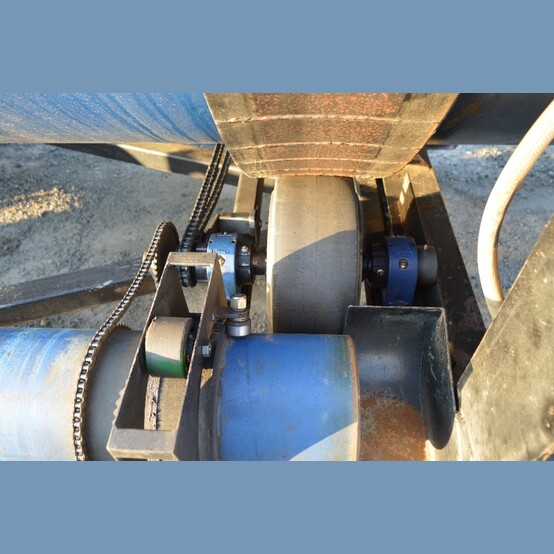

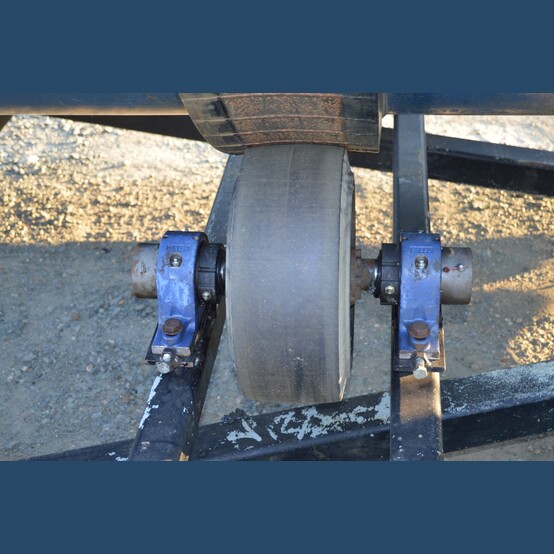

    • Supported on solid rubber Tires
      • Tire Size: 413/178-285.8

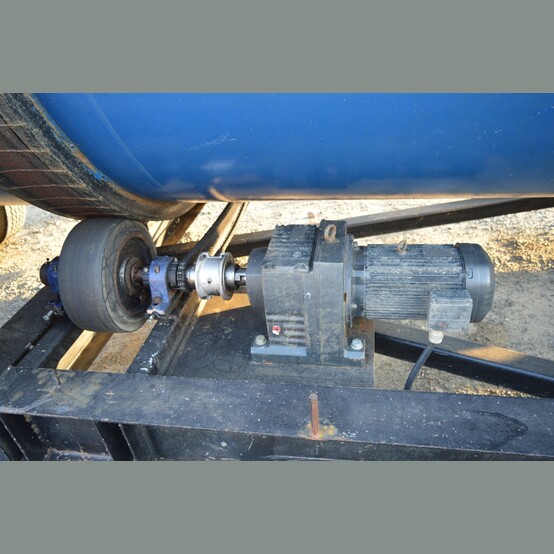

  • Outer drum driven by a 7.5 HP SEW-Eurodrive gearhead motor
    • 47.58 - 1 ratio.
    • Chain drive to drum
    • Supported on solid rubber tires
      • Tire Size: 413/178-285.8
  • All Mounted on a Tandem Axle chassis
  • Complete with dual sluice runs and overs discharge conveyor
  • Material Size Processed: 30 in. minus
  • 4" Main water Connection
  • Water Consumption: Approx. 700 GPM
  • Pressure range 35 - 50 PSI

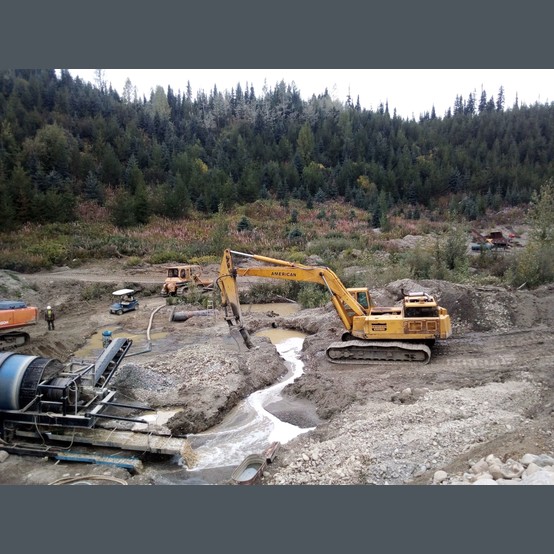

  • Feed Methods: 200 - 300 Series Excavator or 3 – 4 cu. Yard Wheel Loader

Details:

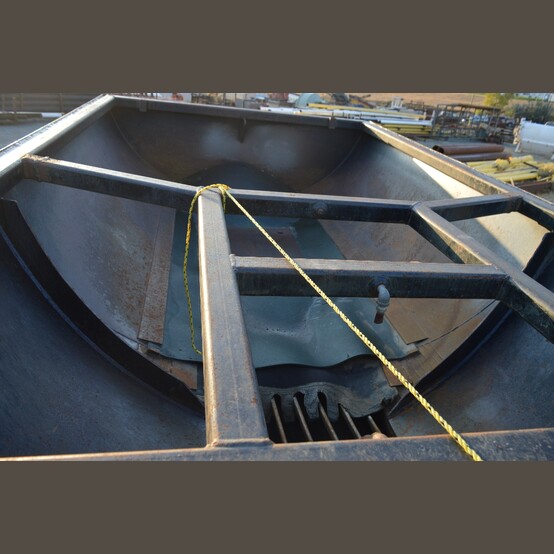

  • The vibrating wet-feed hopper is 12'L x 7'6"W and can handle up to 30" rock.
  • Water will need to be supplied from your own 6" water pump, about 700 gallons per minute usage.
  • The mid-size tailings are stacked by a 30" wide conveyor, allowing ample time for tailings removal.
  • The main sluice is fed concentrated materials from the spiral drum, containing 90%+ of your total recovered gold, making for very easy clean up.
  • An additional 5%+ is captured by the larger tail sluice, resulting in a total recovery rate of 95%+ (down to 50 micron).

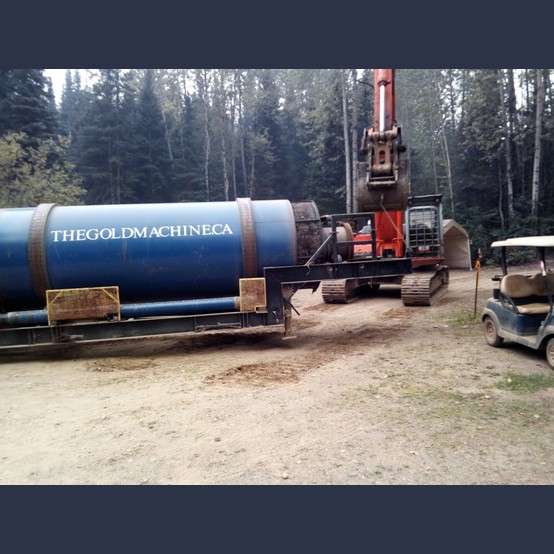

  • The machine is self-contained on a tridem axle trailer.
  • Dimensions: 40'L x 7'6"W x 9'6"H
  • Weight: Approx. 28,000lbs
  • Located: British Columbia, Canada

You Tube Link https://www.youtube.com/watch?v=1ZUUPNlFkXs
