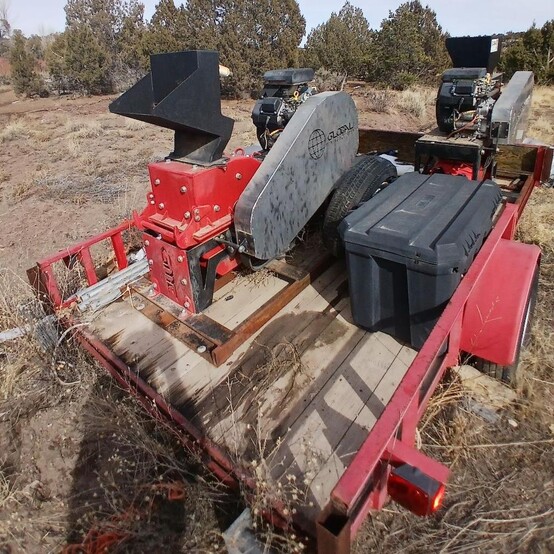

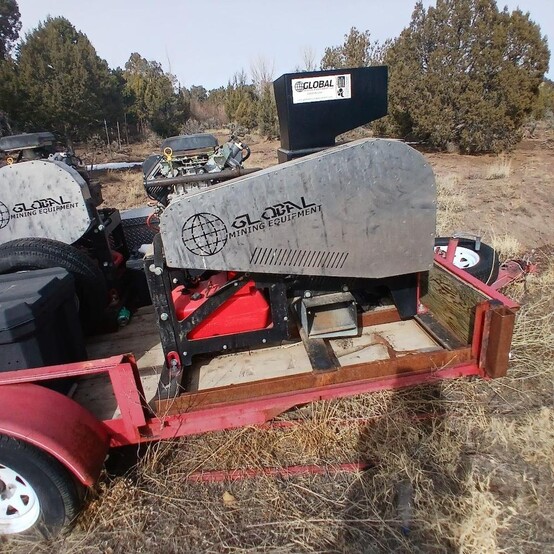

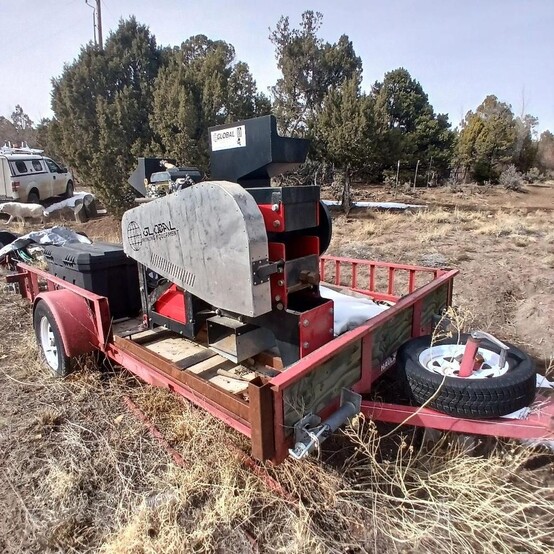

GME Jaw Crusher and Hammer Mill Package

GME Jaw Crusher and Hammer Mill Package ID: 1490080

Make: Global Mining Equipment
Condition: Used, Reported in Barely Used Condition
Package Includes: Jaw Crusher, Hammer Mill, Vehicle Trailer
GME10 Jaw Crusher:
- Make: Global Mining Equipment
- Model: GME10
- Drive: Kohler Gas Engine
- General Model Specifications:
  - Jaw Size: Approx. 10in (254mm) Wide
  - Feed Size: 8in (205mm) Max
  - Discharge Size:
    - Min: 0.25in (6mm)
    - Max: 3in (76mm)
  - Flange/Pillowblock: Blue Brute Bearings
  - Shaft: 2.4in at Camshaft, 2in at Driveshaft
  - Wear Plates: 0.75in (19mm), 450 Brinell Hardness Material
  - Drive: 20HP Gas Engine
  - Dimensions:
    - Height: 48in (1,220mm)
    - Width: 32in (812mm)
    - Length: 56in (1,422mm)
    - Weight: Approx. 950 Lbs. (430kg)
GME14 Hammer Mill:
- Make: Global Mining Equipment
- Model: GME14
- Drive: Kohler Gas Engine
- General Model Specifications:
  - Feed Size:
    - Nominal: 1in (25mm)
    - Max: 2in (51mm)
  - Discharge Size:
    - Min: 400 Mesh
    - Max: 100 Mesh
  - Plates: 0.375in (9.5mm) 400 Brinnel Hardness Material
  - Hammers:
    - Quantity: 10 Hammers
    - Weight: 8 Lbs. Per Hammer
  - Drive: 30HP Gas Motor
  - Dimensions:
    - Length: 56in (1,422mm)
    - Width: 33in (838mm)
    - Height: 53in (1,346mm)
    - Weight: Approx. 1,400lbs (635kg)
18ft Equipment Trailer:
- Size: 18ft Long
- Weight Rating: Approx. 6,000lbs
- Single Axle
Location: Central USA
